Fire resistant composite panel for Fire compartmentation Partition walls and separations Fire Barrier
Fireproofing & Fire Protection Material
Steel Faced Cement Fibre Core For Fire Rated Duct Works / Partitions / Ceilings & Industrial Fire Doors,Blast Wall,Blast Barrier
Jiangsu Aifuxi New Building Material Co., Ltd have made Fiber Cement Products, Calcium Silicate Board, Fireproof material, Blast-Resistant board over 30 years. More company info, please refer to here : http://fc.en.china.cn/company_profile.html
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
BLAST WALL FEATURES
- Blast resistant, tested from 0.3 to 2 bar over pressure
- Resistant to hydrocarbon fires
- Impact resistant to 4000J after 180 minute fire test
- High energy absorption
- Hose stream resistant to a 5 Bar high pressure hose
For more fireproof Calcium silicate Board infomation ,please move to here:
http://fc.en.china.cn/productgrouplist-209842881/Calcium_Silicate_Board.html
If you also have blast-resistant design, please go ahead :

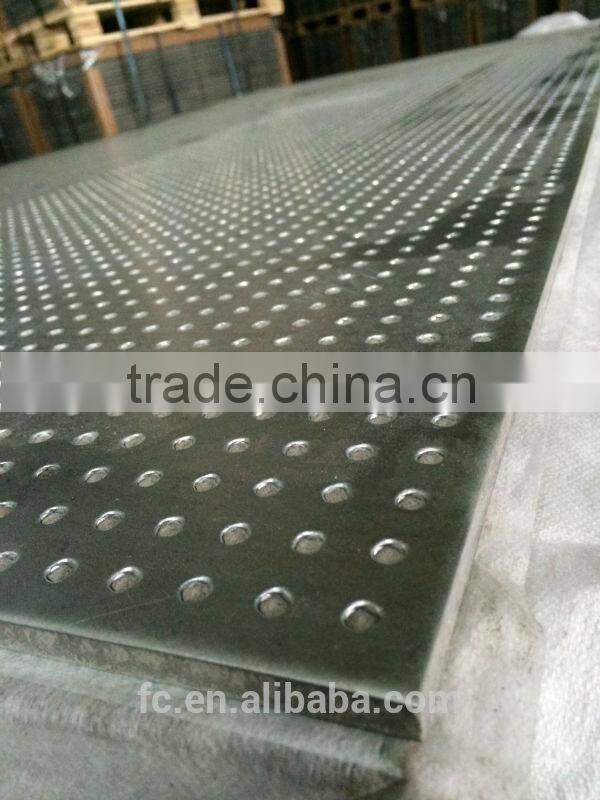

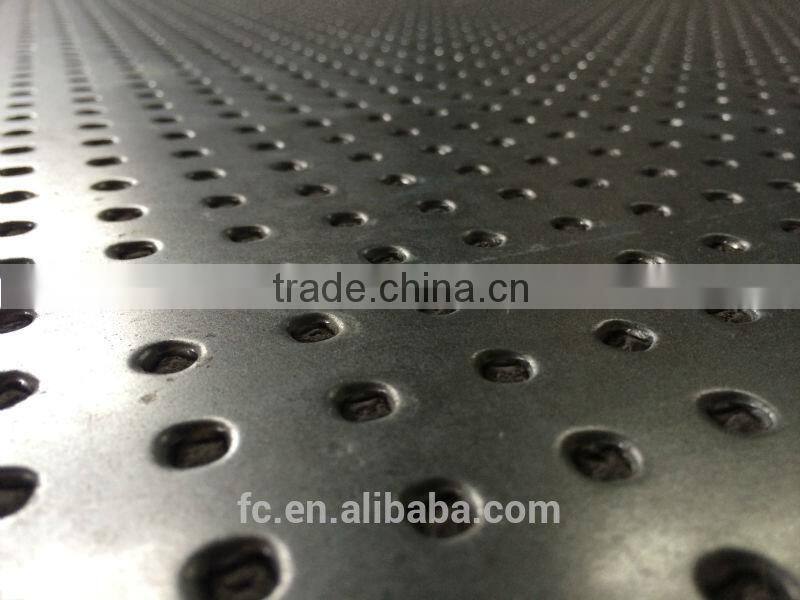

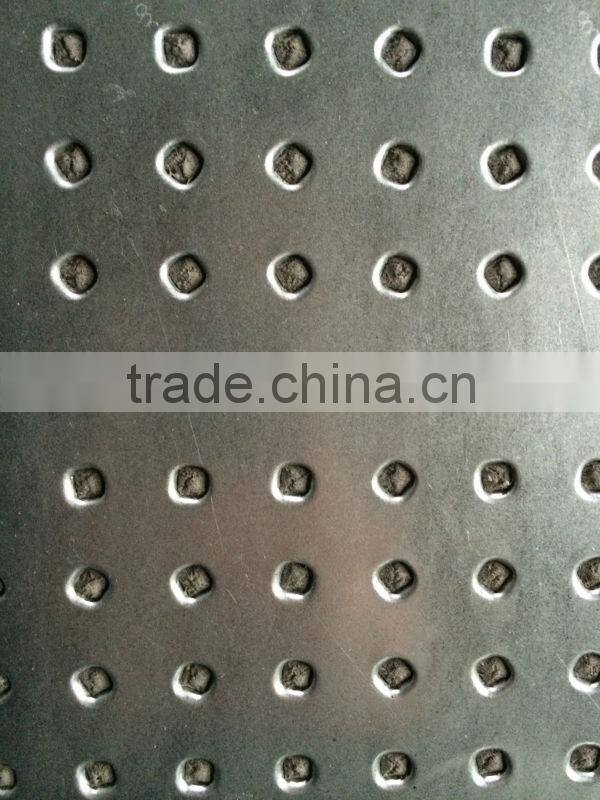

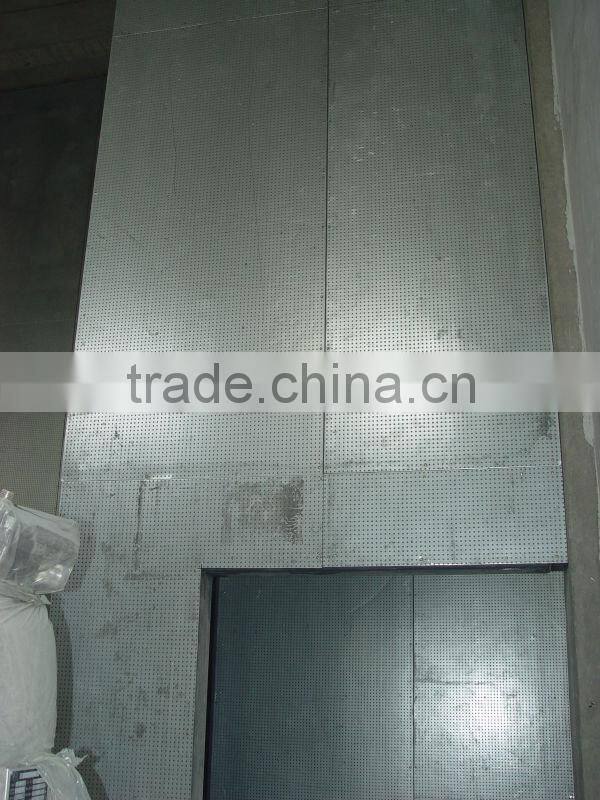

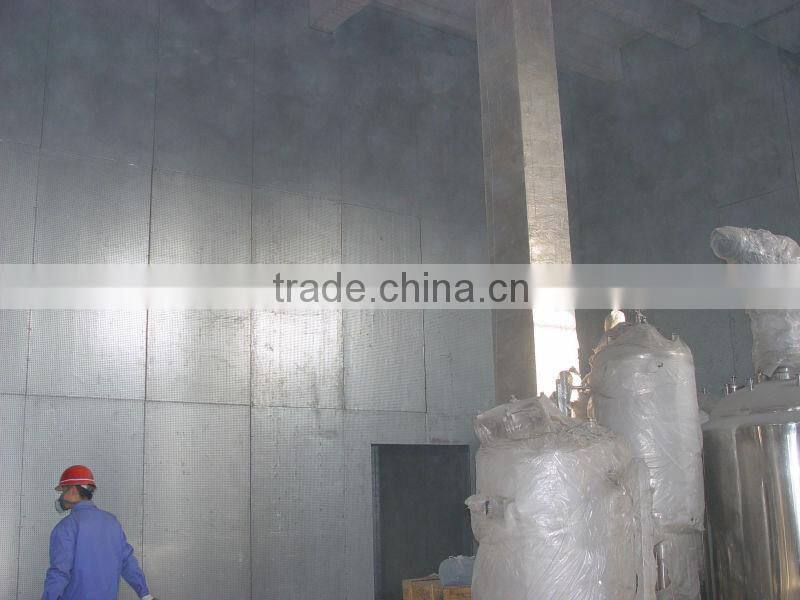

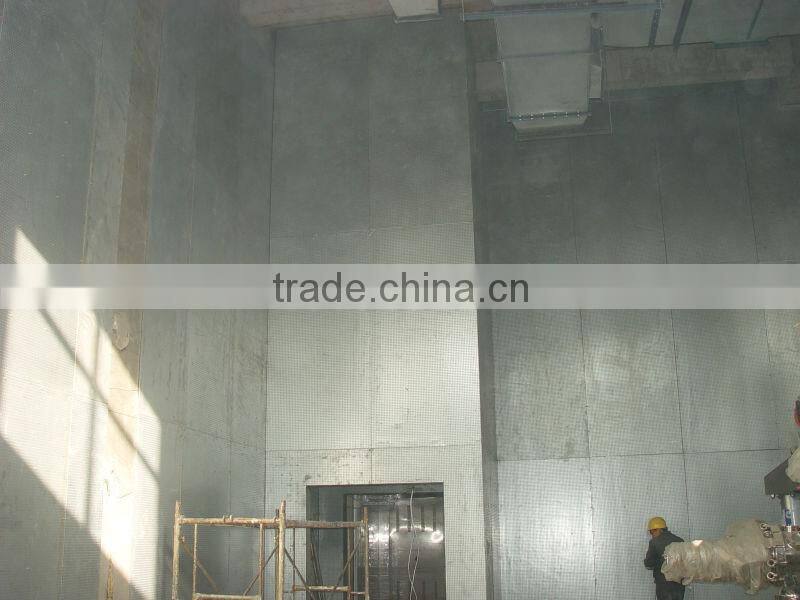

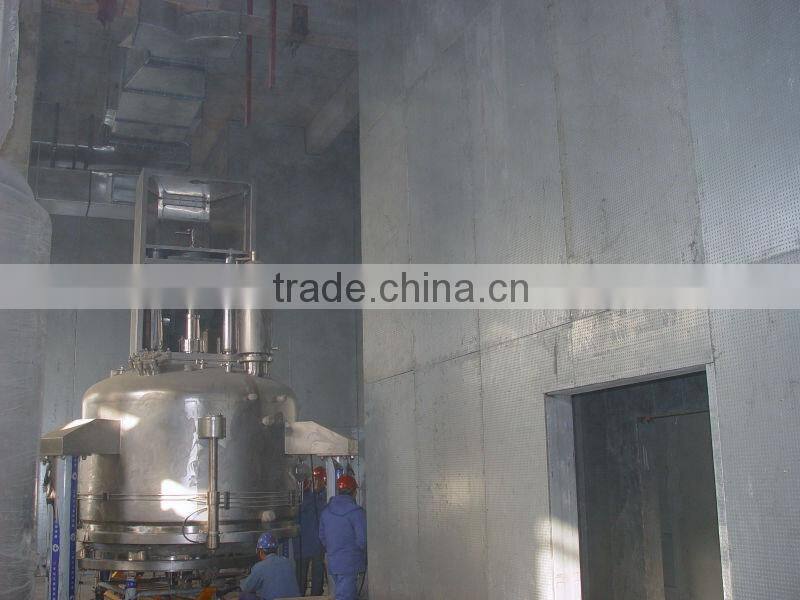

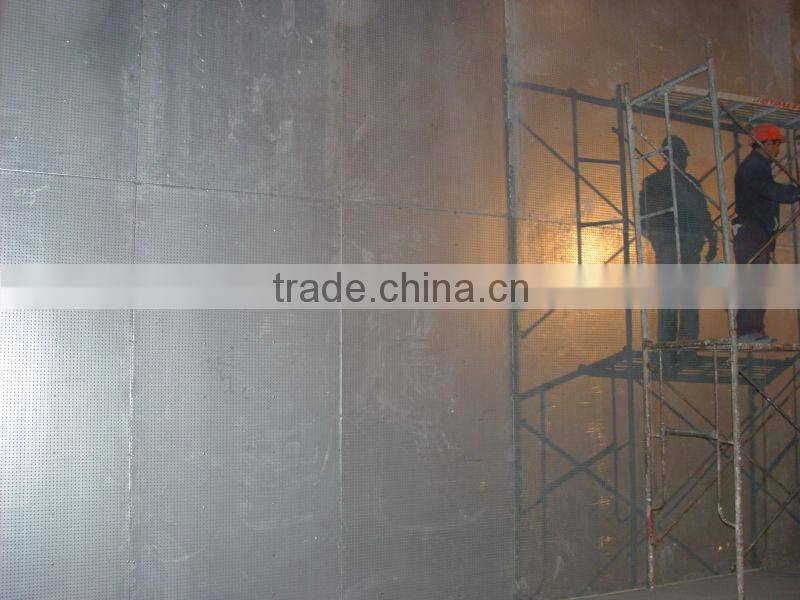

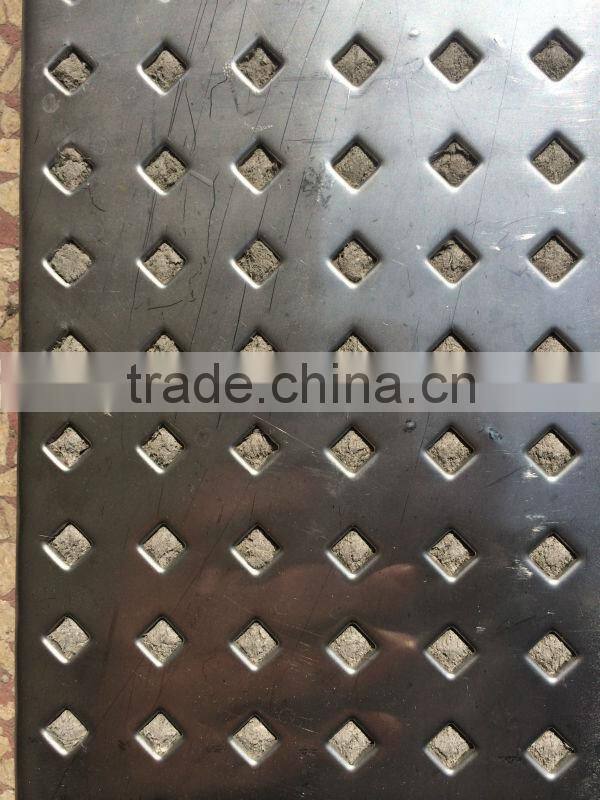

FC-Steel is a steel composite panel of fibre reinforced cement mechanically bonded to punched steel sheets on both outer surfaces. It’s a unique non-combustible material with highly impact and moisture resistant. FC-Steel is lightweight and used in the construction of fire and blast resistant barriers, ceilings, doors, ductwork, enclosures and structures.
Whether for fire or blast, some of the most common systems utilizing FC-Steel are:

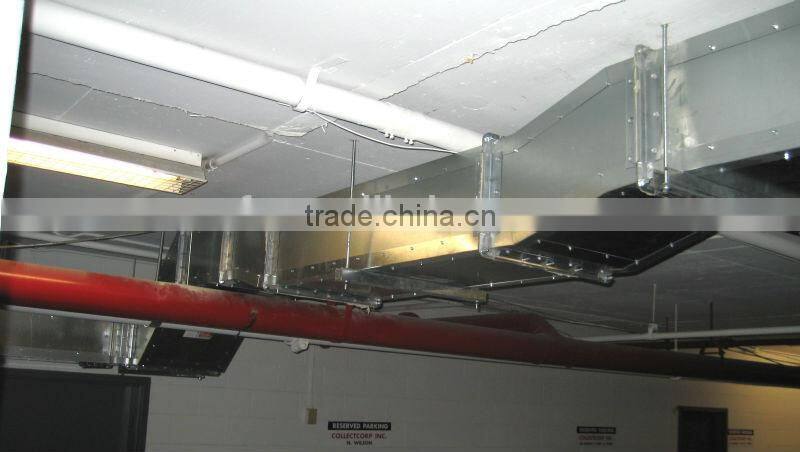

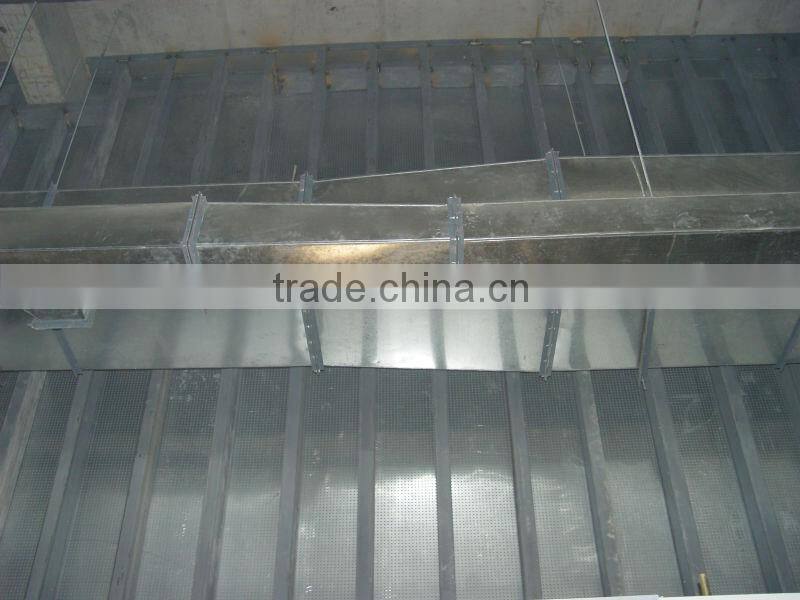

- Fire Rated Ventilation duct Systems

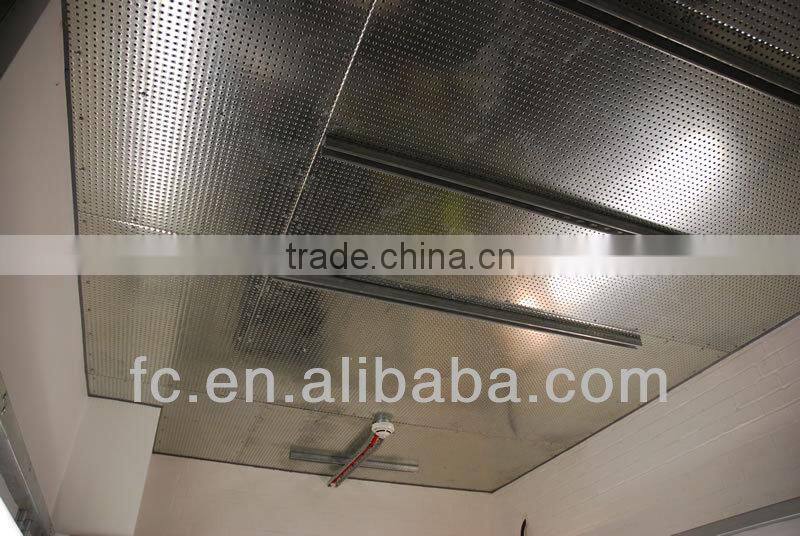

- Fire Rated Ceilings, Floors, Walls & Door Assemblies
- Oil, Gas Pipe & Cable Tray Enclosures

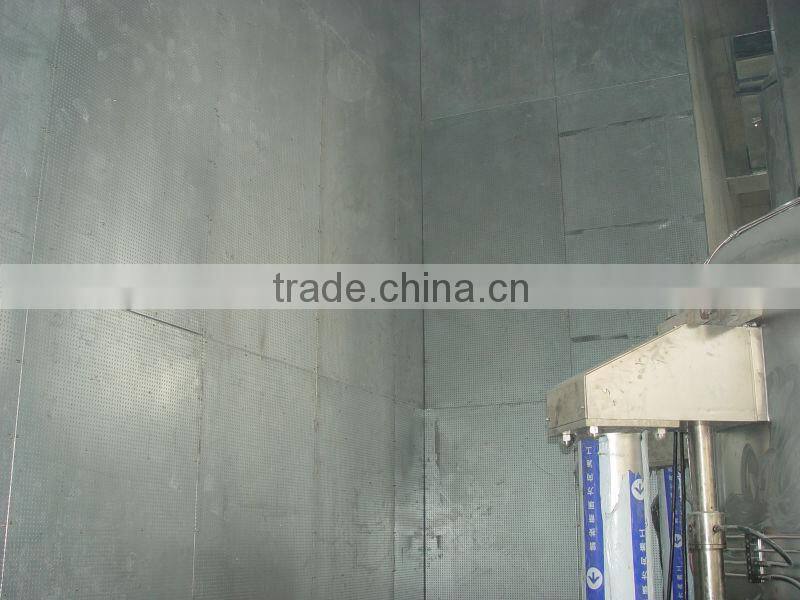

- Fire Barriers,& Blast Barrier
- Outdoor & indoor transformer Barriers
- Protection from hydrocarbon fires & blasts
- Fire & Blast containment for gas storage
- Escape tunnels and shafts
- Portable Barriers
- Document Storage Vaults
- Acoustic Barriers & Enclosures
- Blast Walls & Doors
- Blast Resistant Duct

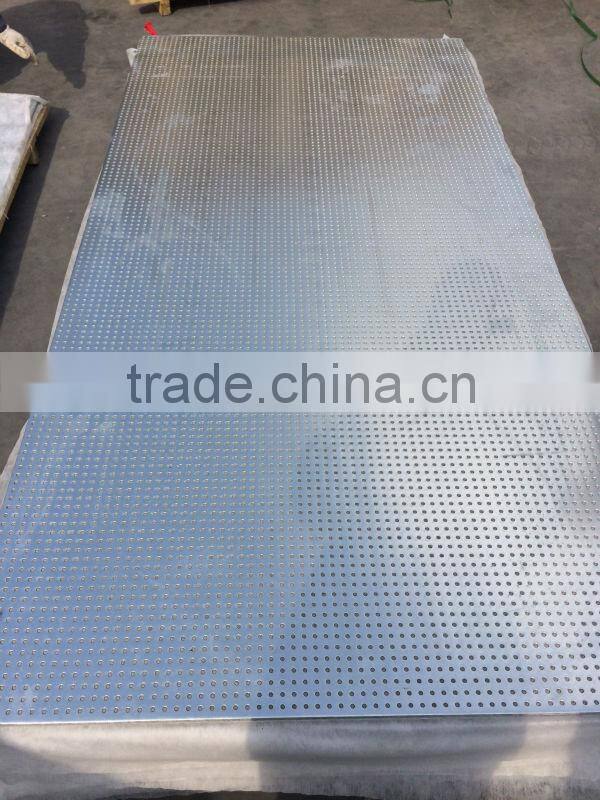

The sheets come 1200mm x 2400 mm (approximately 4 x 8 feet) in size and are available in the following options:
- Standard 3/8" (9.5mm) thickness
- Optional 1/4" (6mm)& 1/2" (12mm) thickness
- Standard galvanized finish
- Optional stainless steel finish
- Other specialty metals available
FC-Steel is by far the most extensively tested material in Passive Fire Protection. It has been tested for the following characteristics:
- Four Hour Fire Resistant (240 minute) - integrity and insulation
- Blast Resistant - tested to 2 bar (200kN/m² overpressure)
- Hydrocarbon Fire Resistant
- Impact Resistant
- Moisture and Hose Stream Resistant
- Vibration Resistance
- Lightweight Space-Saving
- Demountable and Remountable
- Maintenance Free
- 40 Year Design Life
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
FC FIBER CEMENT BUILDING PRODUCT COLLETCTION:
- FC Fireproof and Blast Resistant Board
- FC Anti-static Raised Access OA Floor
- FC Colored Fiber Cement Board
- FC Wood Grain Fiber Cement Siding
- FC Calcium Silicate Board
