Ceramic protection ball mill ball mill for grinding silica sand
- 4 Set / Sets per Month
- Qingdao
- T/T
- GTLH vertical ring high gradent magnetic separator
- GTB Drum type magnetic separator
- Non-metallic Minerals High Gradient Vertical Ring Magnetic Separator
- GZS series high pure sand making machine
- GF series air classifier for mineral grinding machine
- High precision and capacity GF series air classifier for mineral grinding machine
Product Details
Condition: | New | Type: | Ball Mill | Product Type: | Other, ball mill |
Brand Name: | jinghua | Model Number: | AF | ||
Voltage: | 380V | Power(W): | 132-500KW | Dimension(L*W*H): | 2.4x7.5m |
Weight: | 20T | Certification: | TUV | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

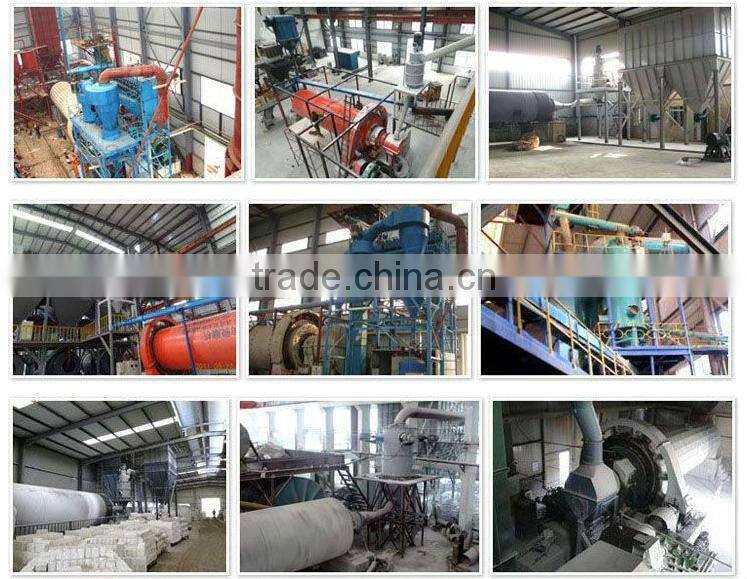

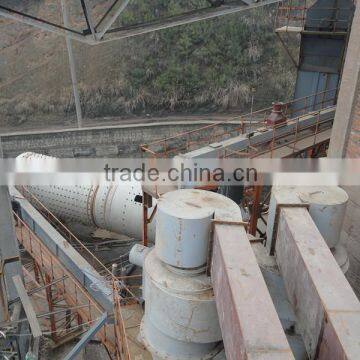

Ball mill brief introduction
Can get 1T/h,d97=5um
Remark:1.2.4x7.5m ball mill, 300kw
2.Grinding ball,Use Alumina ball. Lining plate is Alumina
3.AF315-6 air classifier,66kw
4.The parts of contact with material is used Alumina
Ball mill working principle
1) Material feeding: After the materials are roughly crushed, they will be fed into the ball mills.
2) Impact grinding: when the milling chamber is rotating at high speed, grinding medium and grind-need materials, which are also rotating, will impact with each other; thus to achieve impact grinding for materials;
3) Classification: after the materials are crushed, they will be discharged into self-diffluent classifiers. And then the relatively coarse and fine powders will be separated. Qualified powders will be collected; and unqualified powders will be re-crushed.
Bll mill Main Characteristics
1) Low energy consumption: our LHM superfine ball mill production line adopted high advanced energy-saving technology and classification technique; as a result, our production line can save over 40% energy for producing same quantity materials.
2) Several times of classification could be obtained:
Finished product fineness after first time classification: 300-2500mesh; if our ball mill production line is equipped with a second classification system, the finished product fineness after second time classification would be 6,250mesh (d97≤2um).
3) Adopted highly advanced self-diffluent classification system:
(1) The classifiers in LHM ball mill production line have a precise classification, so the produced materials have uniform fineness;
(2) High classification capacity: 100t/h;
(3) Low energy consumption: For classifying the same quantity of raw materials, a classifier in LHM ball mill production line can save about 40% energy comparing with traditional ball mills.
(4) High classification efficiency (50% higher than classifiers in traditional grinding mills)
4) Scientific grinding medium enable us to produce large quantity superfine particles.
5) Different lining boards and grinding mediums are available for milling different materials, so as to guarantee the purity and whiteness of finished products.
6) Scientific machine structure enables a lower investment cost;
7) Low failure rate and stale operation: because our ball mills and classifiers in the production lines are VFC controlled and have high automation;
8) Negative pressure production condition gives a good production environment;
9) High annual production capacity: 5-500 thousand tons.
Series | Configuration | Power (Kw) | Capacity (T/h) | fineness (d97=um) |
1 | 1.5 with AF200 | 190 | 1-5 | 2-60 |
2 | 1.83with AF300 | 340 | 3-10 | 2-60 |
3 | 2.2with AF400 | 490 | 5-15 | 2-60 |
4 | 2.4with AF600 | 625 | 10-30 | 2-60 |
5 | 2.4with AF800 | 810 | 15-40 | 2-60 |
6 | 2.6with AF1000 | 1200 | 30-80 | 4-60 |
7 | 3.0with AF1200 | 1500 | 40-150 | 4-60 |
8 | 3.5with AF2000 | 2350 | 60-200 | 5-60 |
Can supply Technical Project according to material
