For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty

For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty thumbnail-1
For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty thumbnail-2
For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty thumbnail-3
For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty photo-1
For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty photo-2
For America & Canada Market ul CUL 18w t8 Led U-bend Tube 5 Years Warranty photo-3
US$ 15 - 20 MOQ: 30 Pieces
Key Specifications
Get Latest Price
LED Light Source:
LM80 Chip
Warranty(Years):
5
Input Voltage(V):
100-277V AC
Contact Supplier Request Quote Chat Now
Shenzhen OKT Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LM80 Chip
Warranty(Years) 5
Input Voltage(V) 100-277V AC
Lamp Power(W) 18
Lamp Luminous Flux(lm) 1600
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating Other, IP20
Certification BV, CE, FCC, UL
Place of Origin Guangdong, China
Brand Name OKT LIGHTING
Model Number T8

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

Product Description

 For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

Specification

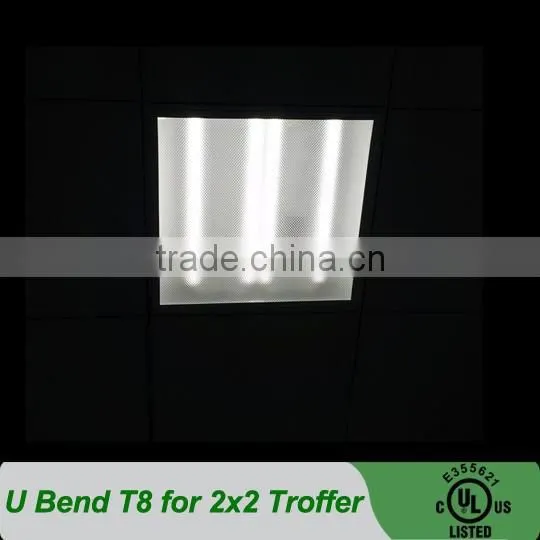

The US t8 led u-bend tube  for Linear Panels(2*2 Troffer),design for Amercian Market.It delivers up to high lumens of exceptional 80+ CRI light with L70> 50000H while achieving 90 lumens per watt in 100~277 VAC Input with included UL/cUL Recognized internal or external driver supply two led tubes.This LED U Tube Lamp T8 is only used the U shape fluorescent luminaires.



Item  Model No.  Input Power  Lumen Output  CRI  Input Voltage  Driver  Warranty  Certificate
t8 led u-bend tube with internal driver  T8U-ID-18W-XX     18W 1600LM  Ra>82,R9>15  100-277V AC   Internal  3 Years   UL,FCC
t8 led u-bend tube with external driver  T8U-MD-18W-XX  18W 1600LM   Ra>82,R9>15  100-277V AC   external driver for two tubes  5 Years  UL ,FCC



4FT   t8 u bend tube  :

Model Input Power Luminous Flux Driver Options Certificate
4ft 16w t8 16w 1750lm Internal Driver UL, DLC
4ft 18w t8 18w 1950lm Internal or external driver UL, DLC
4ft 22w t8 22w 2300lm Internal or external driver UL, DLC



2FT AND 5FT T8 Tube Light:

Model Input Power  Luminous Flux  Driver Options Certificate
2ft 10w t8 10w 1000lm Internal or external driver UL
5ft 26w t8 26w 2600lm Internal or external driver UL



Detailed Images

t8 led u-bend tube Details Display

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

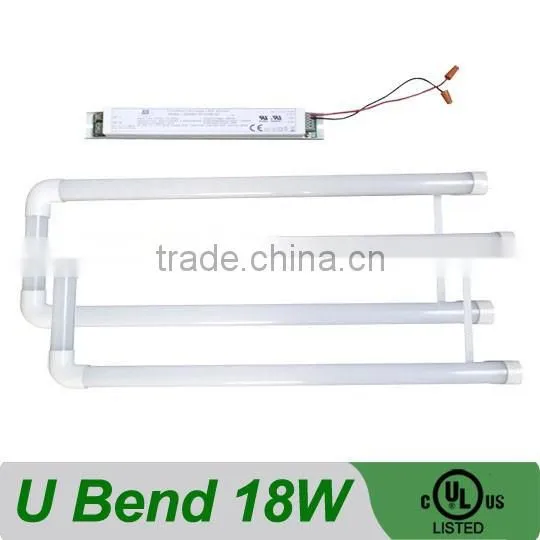

3. External Driver for multi t8 led u-bend tube

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

Advantages

 Why Choose OKT T8 Tube

The OKT DLC t8 led u-bend tube for Linear Panels conversion for use only with fluorescent luminaires. This reach up to 110 lumens per watt included UL/cUL recognized internal or external driver, perfect for new construction applications or retrofitting existing the fluorescent tube in 2X2FT,2X4FT grille panel.

1. UL/cUL Listed,DLC Listed,LM79 Report Available;

2. LM80 Chip, lifespan>50,000 Hours;

3. UL Driver MTBF> 500,000 Hours;

4. Isolated UL Recognized Driver;

5. THD<20%(At 277V);

6.110LPW for Milky Lens, 114LPW for Clear Lens;

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

Structure For t8 led u-bend tube

Model A B C D
2ft t8 23.19" 23.48" 23.78" 1.26"*1.14"
4ft T8 47.17" 47.46" 47.76" 1.26"*1.14"
5ft t8 58.98" 59.27" 59.57" 1.26"*1.14"

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty

Test Report

LM79 Test Report

  1. This OKT t8 led u-bend tube was tested with no seasoning which made in compliance with IES LM-79-08.

  2. It was operated at rated voltage or at voltage required by manufacturer.

  3. The ambient temperature of the sample was maintained at 25°C±1°C during measurement.

  4. And relative humidity is less than 65%.

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty
For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty
Project



Projects For t8 led u-bend tube

OKT t8 led u-bend tube is perfect for residential and commercial applications. Many OKT t8 u bend tube installed around the North American, especially united State, and with the most installed indoor luminaire run time of any manufacturer, such as:

  1. OFFICE IN USA;

  2. TENNIS COURT IN USA;

  3. SUPERMARKET IN USA

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty



Certifications

 Certificate

  1. All OKT t8 led u-bend tube is listed on UL, CUL, DLC, FCC, Lighting Facts.

  2. What is DLC? The Design Lights Consortium is recognized as the world-wide leader in rebate qualification for commercial solid state lighting applications. The DLC Qualified Product List (QPL) ensures that only high-quality, high-performance, tested and verified LED products will be eligible for rebate participating programs. The DLC certification process is extremely rigorous and every aspect of the LED light construction is reviewed for performance, efficiency, and longevity.

  3. We're available to provide UL, CUL, Energy Star, DLC Multiple List and Private Label for ul 18w t8 led tube if needed.

Company Information

Technical Equipment

  1. OKT apply some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our  t8 led u-bend tube production process;

  2. Those equipments make us deliver qualified t8 u bend tube  and offer more than 5 years' warranty.

For America & Canada market ul cUL 18w t8 led u-bend tube 5 years warranty
FAQ

 FAQ

  1. How about the delivery time for  t8 led u-bend tube ?

    A:we offer Quick lead time,only 1 day for sample call,10 days for 1000pcs.


  2. What is your warranty for  t8 u bend tube ?

    A: 5 years warranty.


  3. Situation 1 Under the terms of this warranty, OKT LIGHTING will provide free new products based on the proof-documents if the product have a failure occurs under normal usage within warranty period
    Situation 2 If failure or damage due to incorrect operation, wire connection or anything other do not follow our instruction, OKT lighting will provide paid maintenance within warranty period.

  4. We are the wholesaler,can you offer Multiple List and Private Label according to our requests?

    A: YES.We will help you to handle ML process while our designer can design private label as required.


  5. which color temperatures is listed on DLC?

    A: 4000k and 5000k.


  6. Can we get support if necessary?

    A: we offers business policies to support all regular and new clients to expand markets,please contact us for details.


  7. how is your packing?

    A: we offer safty packing for shipment, see belows:

  8. Packing Parameter
    Product PCS/CTN G.W(Kg) CTN Size(LxWxH) PLT Size(LxW) 20′GP 40′GP 40′HC
    CTN/PLT PLT QTY QTY IN BULK CTN/PLT PLT QTY QTY IN BULK CTN/PLT PLT QTY QTY IN BULK
    t8 led u-bend tube 10 5.2 70*31*27CM 1.2*1M 32 9 549 32 22 1138 36 22 1282
