UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335

UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-1
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-2
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-3
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-4
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-5
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 thumbnail-6
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-1
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-2
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-3
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-4
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-5
UL Listed Led Emergency Driver Backup for Led Panel Light Emergency Kit UL NO E469335 photo-6
US$ 25 - 45 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
EL-1248-XX
Contact Supplier Request Quote Chat Now
Shenzhen OKT Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OKT Lighting
Model Number EL-1248-XX
Bulb Type LED
Battery Type Ni-Cd
Material Cold Rolled Steel Sheet
Usage Camping
Certification Other, UL
Specifications Other, 8w,12w,18w,25w

 UL listed led emergency driver backup for led panel light emergency kit UL NO E469335



Product Description



 UL listed led emergency driver backup for led panel light emergency kit UL NO E469335

Description

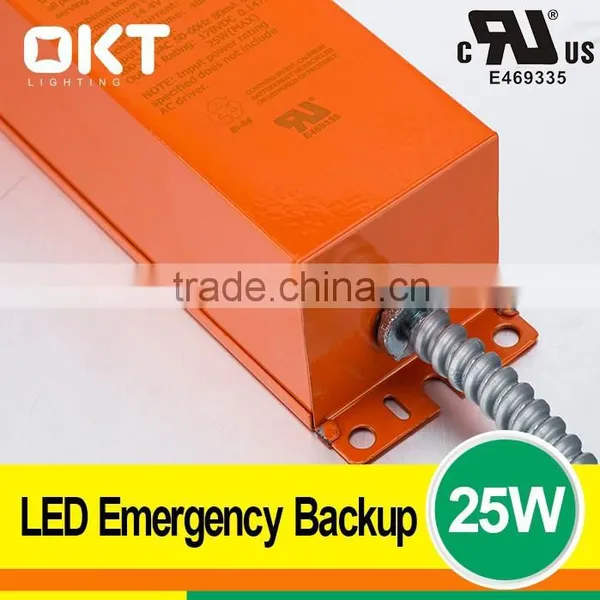

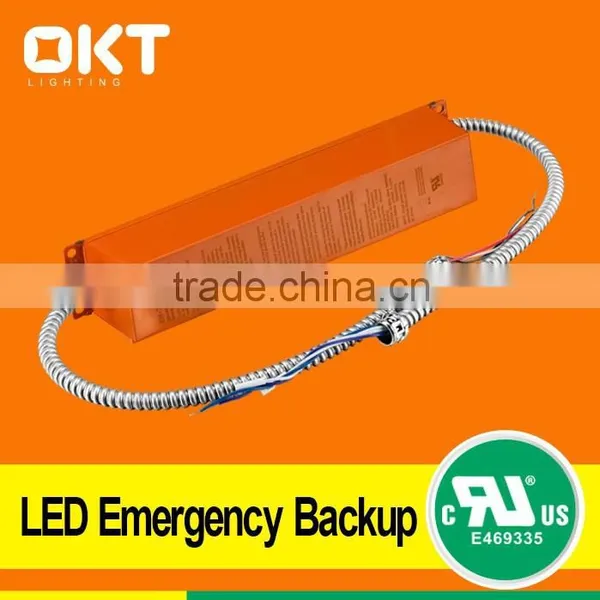

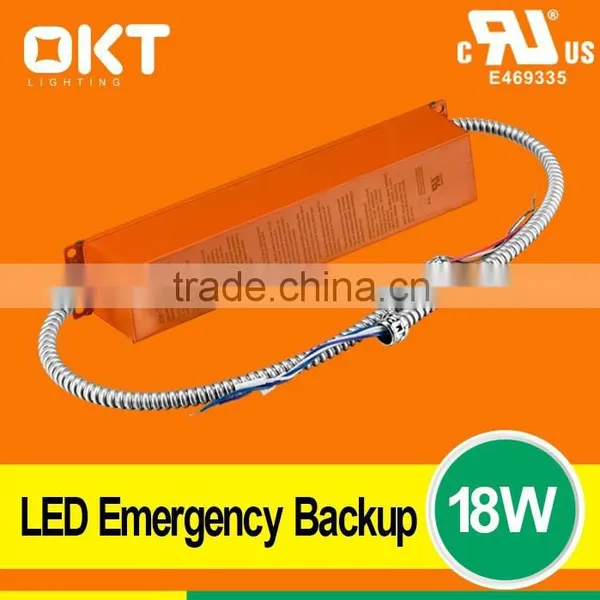

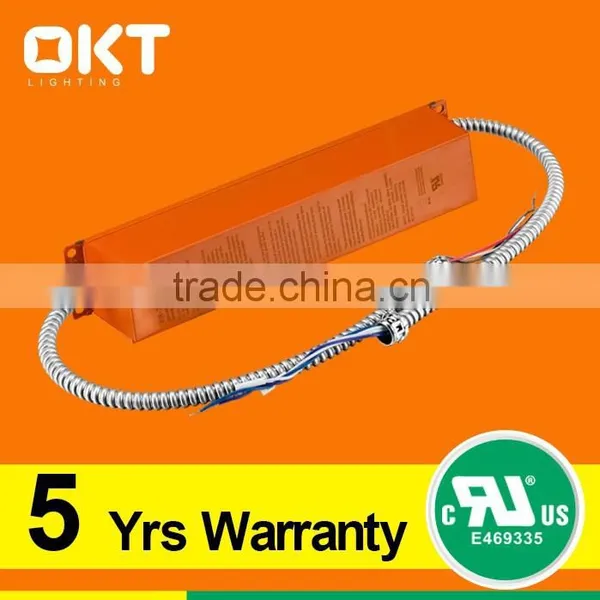

The OKT led panel light emergency kit is UL,CUL Listed that be used for both normal and emergency operation.the led emergency backup switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.



Specification

for  led emergency kit with external driver:

Model Output Power Max.Connected Load Input Voltage Emergency Time  Output Voltage
EL-0848-XX 8W (max) 0.5 A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC
EL-1248-XX 12W (max) 0.75A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC
EL-2548-XX 25W (max) 1.38 A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC


for  led emergency kit with inernal driver:

Model Output Power Input Power Input Voltage Emergency Time  Output Voltage
EH-18170-XX 18W (max) 6W

100-277VAC/

120-250V

 >90 Minutes 170V DC
EH-25170-XX 25W (max) 6W

100-277VAC/

120-250V

 >90 Minutes 170V DC

UL listed led emergency driver backup for led panel light emergency kit UL NO E469335



Advantages

Dial the code to suitable voltage of luminaire

Includes test switch and charge indicator accessory

for use with switched or non switched fixtures

UL and CUL Listed



Form for dial the code to suitable rated voltage of luminaire

UL listed led emergency driver backup for led panel light emergency kit UL NO E469335





Size

 UL listed led emergency driver backup for led panel light emergency kit UL NO E469335



Model 8W 12W 18W 25W
A 55.4MM 55.4MM 69MM 69MM
B 55MM 55MM 71MM 71MM
C 264.6MM 264.6MM 377MM 377MM
D 69MM 55.4MM 69MM 69MM
E 22.2MM 22.2MM 222MM 22.2MM



How to install



Typical Wiring Diagram for LED emergency bcakup with internal led product

UL listed led emergency driver backup for led panel light emergency kit UL NO E469335



Typical Wiring Diagram for LED emergency bcakup with external led product

UL listed led emergency driver backup for led panel light emergency kit UL NO E469335
