100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved

100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-1
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-2
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-3
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-4
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-5
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved thumbnail-6
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-1
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-2
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-3
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-4
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-5
100-277V Input 0-10v Dimmable Led Panel 1x4 2x2 2x4 UL CUL DLC Approved photo-6
US$ 70 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
5
Input Voltage(V):
120-277V
Contact Supplier Request Quote Chat Now
Shenzhen OKT Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835
Warranty(Years) 5
Input Voltage(V) 120-277V
Lamp Power(W) 65
Lamp Luminous Flux(lm) 6200lm
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification UL
Place of Origin Guangdong, China
Brand Name OKT LIGHTING
Model Number SP24-DH-XXX



100-277V input 0-10v dimmable led panel 1x4 2x2 2x4 UL cUL DLC approved



Description of 0-10v dimmable led panel

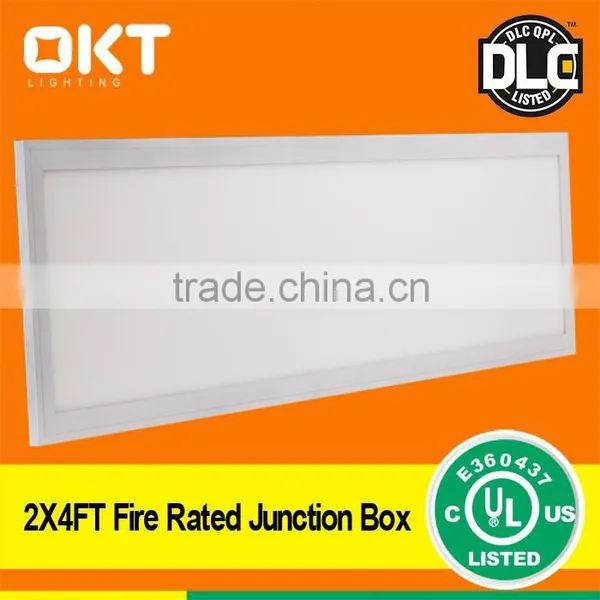

The DLC 0-10v dimmable led panel  delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This 2*2FT  square 600x1200mm flat panel   is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification  of 0-10v dimmable led panel

Model Item NO. Input Power Luminous Flux DLC CCT Option Input Voltage Dimming Certificate
2x2FT 0-10v dimmable led panel
VS22-DM** 40 Watts 3700LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC

2x2FT 0-10v dimmable led panel

VS22-DH** 55 Watts 4900LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC
2x4FT 0-10v dimmable led panel
VS24-DM** 50 Watts 4600LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC
2x4FT 0-10v dimmable led panel
VS24-DH** 63 Watts 5600LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC
1x4FT  0-10v dimmable led panel
VS14-DM** 40 Watts 3600LM 4000K 5000K 100-277V AC 0-10V Dimming UL

1x4FT 0-10v dimmable led panel

VS14-DH** 50 Watts 4500LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC



Advantage of 0-10v dimmable led panel

 OKT 0-10v dimmable led panel  are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display

100-277V input 0-10v dimmable led panel 1x4 2x2 2x4 UL cUL DLC approved100-277V input 0-10v dimmable led panel 1x4 2x2 2x4 UL cUL DLC approved100-277V input 0-10v dimmable led panel 1x4 2x2 2x4 UL cUL DLC approved100-277V input 0-10v dimmable led panel 1x4 2x2 2x4 UL cUL DLC approved





Customer Feedback

  • We are happy with 0-10v dimmable led panel  and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the 0-10v dimmable led panel I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with the quality of dlc  drop ceiling light fixture and the performance.------Richard from CANADA
  • the 0-10v dimmable led panel panel has arrived and is excellent------John from Canada

 Packing Infomation

Model Item No. Sample Pack Mass Pack
QTY/CTN (pcs) Carton Size (cm) G.W(KG) QTY/CTN (pcs) Carton Size (cm) G.W(KG)
2*2ft 0-10v dimmable led panel
VS22-DM** VS22-DH** 2 70*69*17 14 4 70*69*17 21
2*4ft 0-10v dimmable led panel
VS24-DM** VS24-DH** 2 129*70*17 27 4 129*70*17 45
1*4ft 0-10v dimmable led panel
VS14-DH** 2 129*40*17 16 4 129*40*17 26
VS14-DM**



Warranty

5 years since the date of purchase for 0-10v dimmable led panel ,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT 0-10v dimmable led panel , pls do not hesitate to inquiry now!
