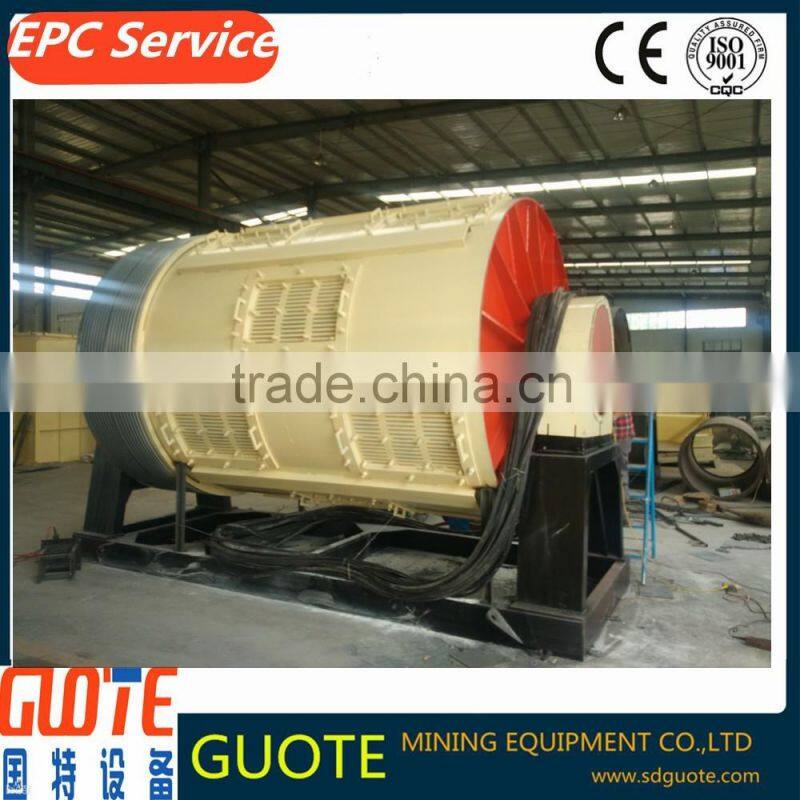

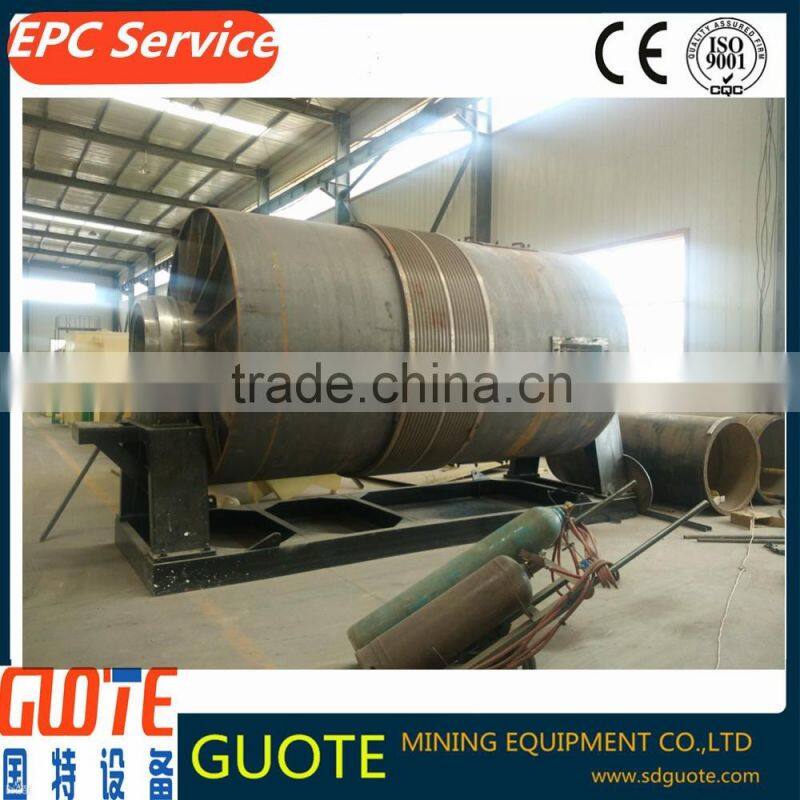

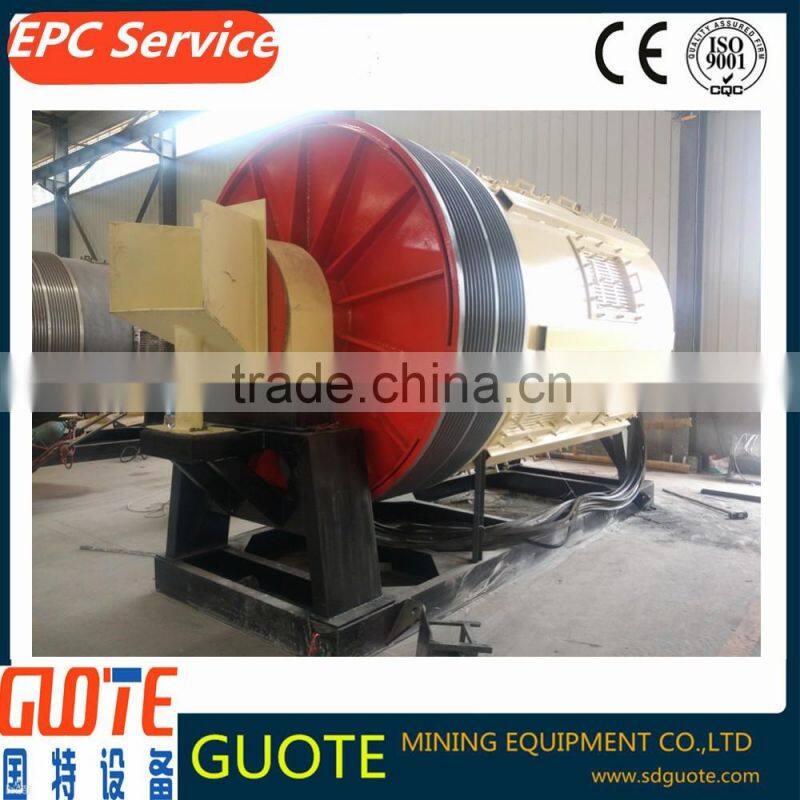

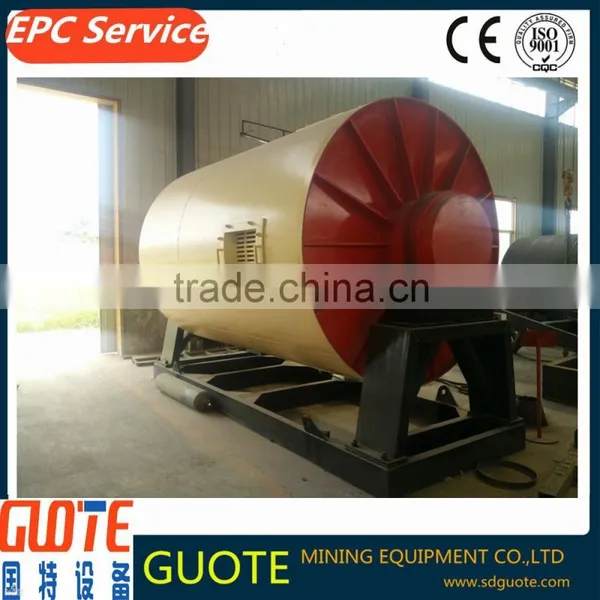

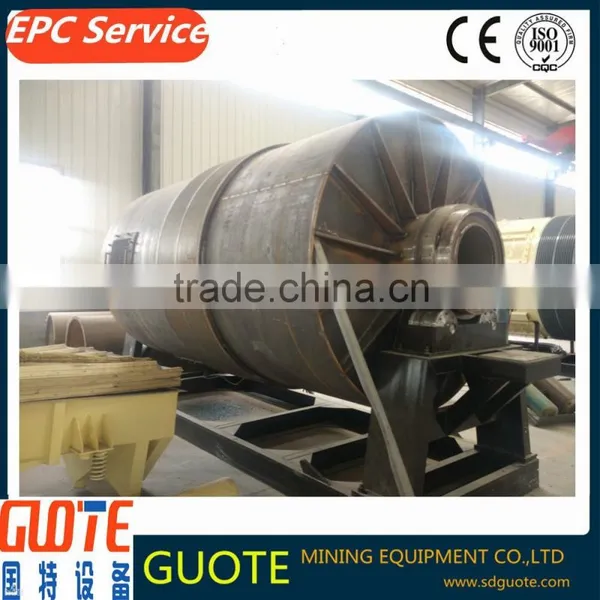

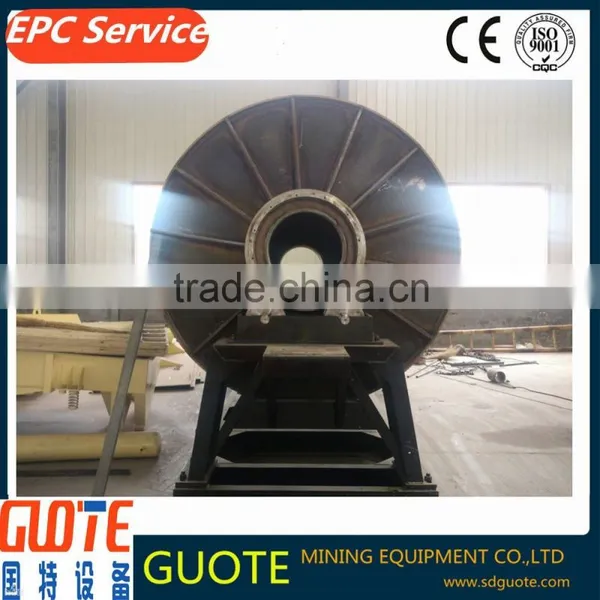

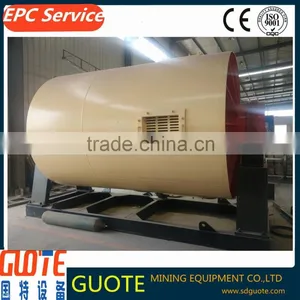

GZS series new condition sand making equipment for quarz sand
Summary
High pure type sand making machine is independent research after years’ practice.
It can make directly materials with 300mm to qualified products with 10-200 mesh.
Advantages:
l Reduce process flow
l Decrease the consume of the equipment
l Improve the purity of the materials
l Optimize design
l Produce the various size of substances according to customer’s
requirements.
Technical characteristics
l Reasonable ratio of length to width, Silica lining plate and self-grinding mode without media , no ferrous pollution
l Cylinder made of high quality steel , wear resistance and small angle deformation.
l Grid plate made of manganese steel
l Structure scientific calculation, different model according to all kinds of materials, conveniently take the quality product.
l Cylinder rotate speed can be configured into a fixed speed or speed control mode.
l According to customer’s requirement, we can design different size of vibrating screen
l Adjusted ratio of length and width for reasonable product size
l Main engine revolution changes in a linear way
l Materials after milling are almost spherical so that it’s used for later processing
l System equipped with high efficient pulse dust collector, seamless connection.
l Simple structure, easy operation, low failure, convenient maintenance
Process flow
Materials with less than 300mm entered the feeding inlet via the feeder. Then they will enter the grinding sieve from feeding outlet; Coarse substances after screening will return into grinding machine.
And reasonable product are taken into sizing screen via lifting machine, they will be screened to various size of product. All the milling processing is equipped with dust collector. No pollution all the processing.
Technical parameter
MODEL |
CYLINDER DIAMETER (MM) |
CYLINDER LENGTH(MM) |
MAIN ENGINE POWER(KW) |
TOTAL POWER (KW) |
ROTATIONAL SPEED |
FEEDING SIZE (MM) |
PRODUCT SIZE (MESH) |
CAPACITY(T/H) |
GZS1725 |
Φ1700 |
2500 |
30 |
40 |
FIXED OR SPEED CONTROL |
≤ 300 |
10-200 |
0.5-1.0 |
GZS1925 |
Φ1900 |
2500 |
45 |
55 |
≤ 300 |
10-200 |
1.0-2.0 |
|
GZS1930 |
Φ1900 |
3000 |
45 |
55 |
≤ 300 |
10-200 |
1.5-2.0 |
|
GZS2125 |
Φ2100 |
2500 |
55 |
70 |
≤ 300 |
10-200 |
1.5-2.5 |
|
GZS2130 |
Φ2100 |
3000 |
55 |
70 |
≤ 300 |
10-200 |
1.5-3.0 |
|
GZS2445 |
Φ2400 |
4500 |
75 |
90 |
≤ 300 |
10-200 |
4.0-6.0 |
PACKAGING & SHIPPING
1 Packaging: Specially made wooden boxes and containers
2 Shipping: forty days after receiving initial payment
OUR SEVICES
1 We will provide non metallic ore EPC turnkey project services.
2 According to customer's requirement, you can customize your private model.
3 You can make the complete test
4 We will respect your reasonable requirements
COMPANY INFORMATION
Weifang GUOTE Mine Equipment . is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company will continue the spirit of "honesty, mutual benefit, cooperation and innovation" for the purpose, dedication to provide “dependable,simple and efficient” products and services to customers, so that enterprises become the production of mining equipment leading service provider.
Our company is willing to work together with people from all walks of life and enter, create a better future.
FAQ
1.What main products do you supply?
l Ball mill with air classifier production line
l High pure sand making machine
l Air classifier
l Dust collector
l High gradient vertical ring magnetic separator
l Plate type magnetic separator
l Roller type permanent magnetic separator
l Metal detector
l Vibrating feeder
2 Are you a trading company or factory?
We are professional manufacturer of non-metallic minerals
EPC dressing turnkey service in Shandong,China. You are
welcome to visit our factory and discuss for further
business.
3 Delivery date for my order?
10 to 15 days for small size machine; 30 to 35 days for large
size machine.
4 How about your payment methods?
Our payment methods are T/T, Western Union, Money Gram,
Cash, Paypal etc.
5. How do you handle the shipment for my order?
Express, we offer express service ( DHL, UPS, Fedex, TNT&
EMS), it’s the fastest way to receive your order; Air or Sea, we
can send your order by air or sea. Its the most economic way
to receive your order.
6. What is your company warranty policy?
We offer 12 months warranty. For regular customers, we always offer them lifetime warranty.
7. Do you offer any replacement for my order?
Yes, we will offer you the replacements based on the model and quantity you are going to order.
8. How can I contact to you?
You can contact us by e-mail on alibaba or whatsapp
+86 18853617214.
contact information
Name: Kellen Wang
WhatsApp: +8618853617214
Skype:live:749971721
Wechat:king198803181834
My alibaba website: https://sdguote.en.china.cn/
If you have any questions, pls don't hesitated to contacting me anytime.
