Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed

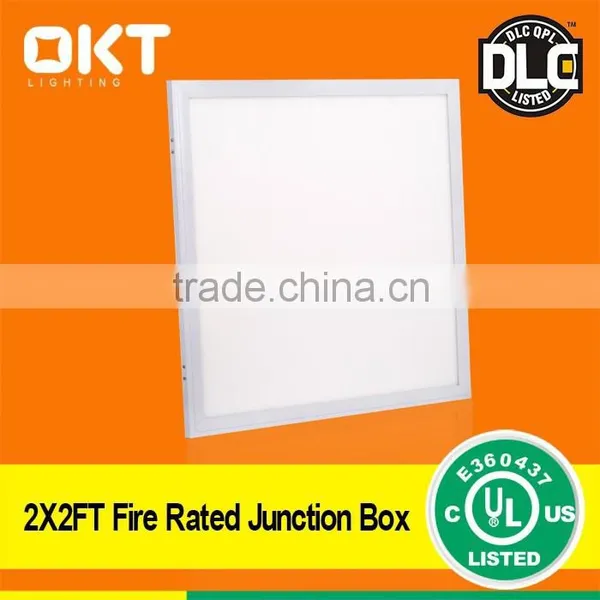

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed

Name: High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed
Brand: OKT LIGHTING
SKU: 114265003

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-1

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-2

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-3

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-4

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-5

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed thumbnail-6

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-1

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-2

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-3

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-4

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-5

High Lumen 4190lm Square 2x2ft 40w 60X60 Led Panel Dimmable CUL UL DLC Listed photo-6

US$ 70 - 80 MOQ: 5 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

120-277V

Contact Supplier Request Quote Chat Now

Shenzhen OKT Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD2835

Warranty(Years) 5

Input Voltage(V) 120-277V

Lamp Power(W) 40

Lamp Luminous Flux(lm) 3600LM

Lamp Luminous Efficiency(lm/w) 95

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP44

Certification UL

Place of Origin Guangdong, China

Brand Name OKT LIGHTING

Model Number VS22-DM**

High lumen 4190lm square 2x2ft 40w 60X60 led panel dimmable cUL UL DLC listed

The DLC 60X60 led panel dimmable delivers high lumens while achieving 90 lumens per watt in 100~277 VAC Input with fired rated junction box. This 2*2FT 60x60 cm led panel light is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.

Specification of high quality 60X60 led panel dimmable

Model	Item NO.	Input Power	Luminous Flux	DLC CCT Option	Input Voltage	Dimming	Certificate
2x2FT 60X60 led panel dimmable	VS22-DM**	40 Watts	3700LM	4000K 5000K	100-277V AC	0-10V Dimming	UL,DLC
2x2FT 60X60 led panel dimmable	VS22-DH**	55 Watts	4900LM	4000K 5000K	100-277V AC	0-10V Dimming	UL,DLC
2x4FT 60X120 led panel dimmable	VS24-DM**	50 Watts	4600LM	4000K 5000K	100-277V AC	0-10V Dimming	UL,DLC
2x4FT 60X120 led panel dimmable	VS24-DH**	63 Watts	5600LM	4000K 5000K	100-277V AC	0-10V Dimming	UL,DLC
1x4FT 30X120 led panel dimmable	VS14-DM**	40 Watts	3600LM	4000K 5000K	100-277V AC	0-10V Dimming	UL
1x4FT 30X120 led panel dimmable	VS14-DH**	50 Watts	4500LM	4000K 5000K	100-277V AC	0-10V Dimming	UL,DLC

Advantage of high quality 60X60 led panel dimmable

OKT panel led mounted 600x600 are UL, CUL , DLC listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

cULus, DLC Listed, LM79 Report Available
More than 90lm/w
Fire rated design with Junction box
0-10V dimming available
5 Years Warranty
White or Silver Trim Color Options
Suitable for Damp locations
Accessary: Driver Box And Clips for T-Bar Included

Details Display

Customer Feedback

We are happy with 60X60 led panel dimmable and quality, let’s work on more. --- Luca (from NY,USA)
100% love the dlc 60X60 led panel dimmable I will be ordering more this week. ----Kody(from LA,USA)
Thank you for your help and for the photos, are very explicit---Jose from Mexico
We are very pleased with the quality of panel led mounted 600x600 and the performance.------Richard from CANADA
the panel led mounted 60X60 led panel dimmable has arrived and is excellent------John from Canada

Packing Infomation

Model	Item No.	Sample Pack			Mass Pack
		QTY/CTN (pcs)	Carton Size (cm)	G.W(KG)	QTY/CTN (pcs)	Carton Size (cm)	G.W(KG)
2*2ft 60X60 led panel dimmable	VS22-DM VS22-DH	2	706917	14	4	706917	21
2*4ft 60X120 led panel dimmable	VS24-DM VS24-DH	2	1297017	27	4	1297017	45
1*4ft 30X120 led panel dimmable	VS14-DH**	2	1294017	16	4	1294017	26
	VS14-DM**
