Perfect office lighting fixtures ul dlc led tube light with external driver
Specification
4FT led tube light with external driver:
| Model | Input Power | Luminous Flux | Driver Options | Certificate |
| 4ft 16w t8 | 16w | 1750lm | Internal Driver | UL, DLC |
| 4ft 18w t8 | 18w | 1950lm | Internal or external driver | UL, DLC |
| 4ft 22w t8 | 22w | 2300lm | Internal or external driver | UL, DLC |
2FT AND 5FT led tube light with external driver:
| Model | Input Power | Luminous Flux | Driver Options | Certificate |
| 2ft 10w t8 | 10w | 1000lm | Internal or external driver | UL |
| 5ft 26w t8 | 26w | 2600lm | Internal or external driver | UL |
Details Display led tube light with external driver

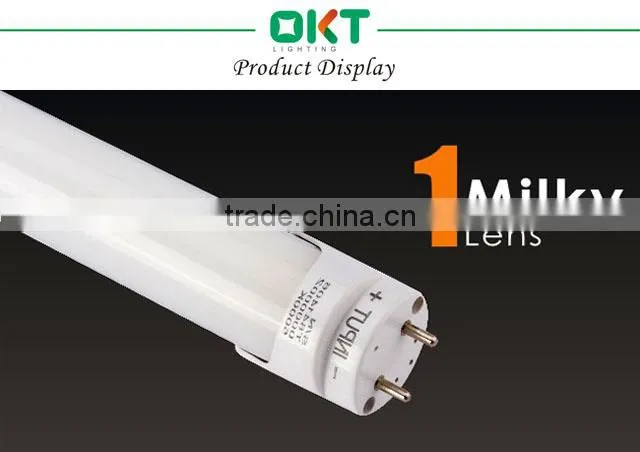

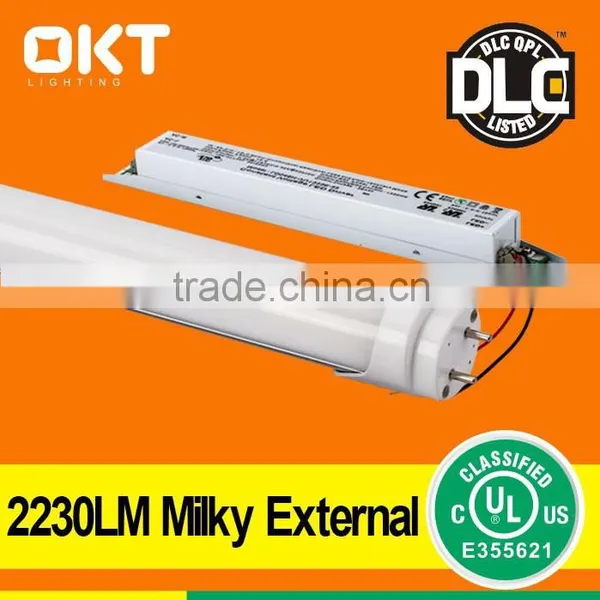

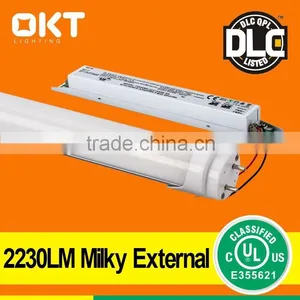

1.Milky Lens

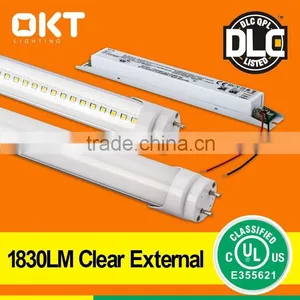

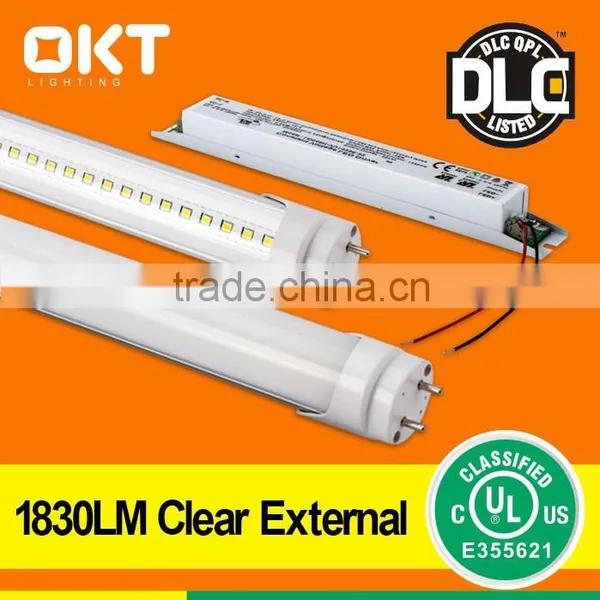

2. Clear Lens

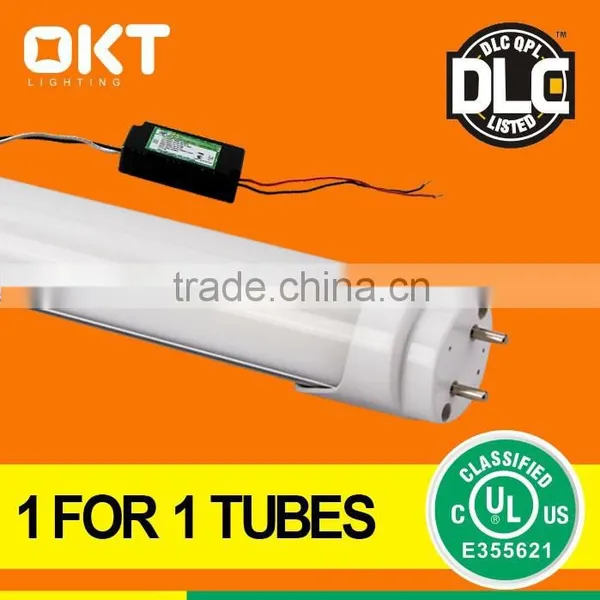

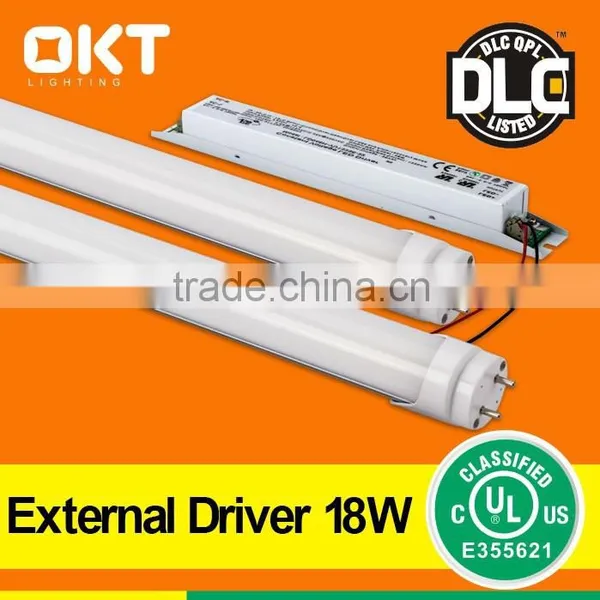

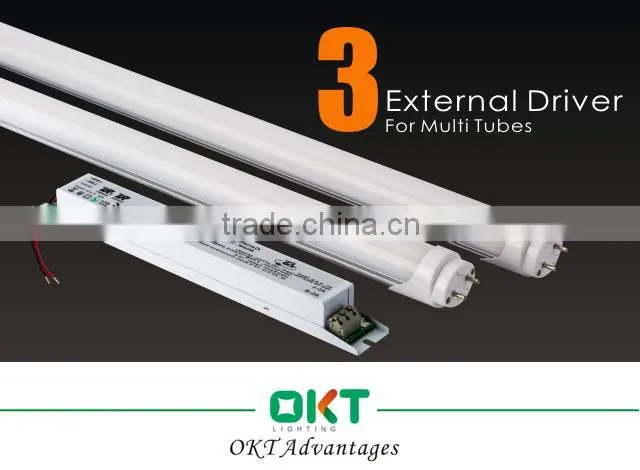

3. External Driver for multi t8 led tube light
Why Choose OKT led tube light with external driver
The OKT DLC led tube light with external driver for Linear Panels conversion for use only with fluorescent luminaires. This reach up to 110 lumens per watt included UL/cUL recognized internal or external driver, perfect for new construction applications or retrofitting existing the fluorescent tube in 2X2FT,2X4FT grille panel.
1. UL/cUL Listed,DLC Listed,LM79 Report Available;

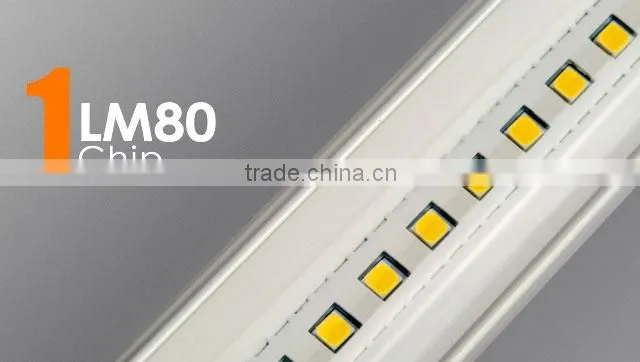

2. LM80 Chip, lifespan>50,000 Hours;
3. UL Driver MTBF> 500,000 Hours;
4. Isolated UL Recognized Driver;
5. THD<20%(At 277V);
6.110LPW for Milky Lens, 114LPW for Clear Lens;

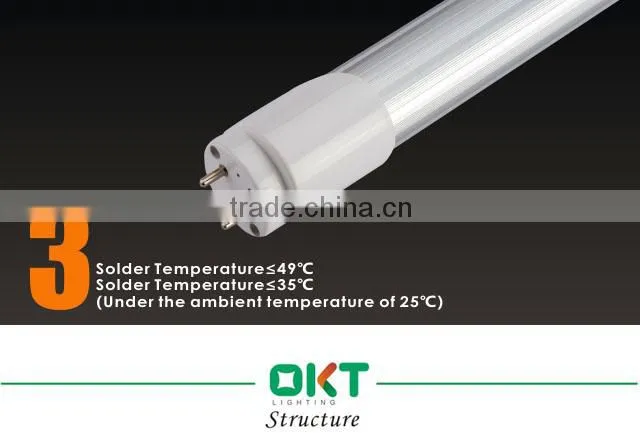

Structure For led tube light with external driver
| Model | A | B | C | D |
| 2ft t8 | 23.19" | 23.48" | 23.78" | 1.26"*1.14" |
| 4ft T8 | 47.17" | 47.46" | 47.76" | 1.26"*1.14" |
| 5ft t8 | 58.98" | 59.27" | 59.57" | 1.26"*1.14" |

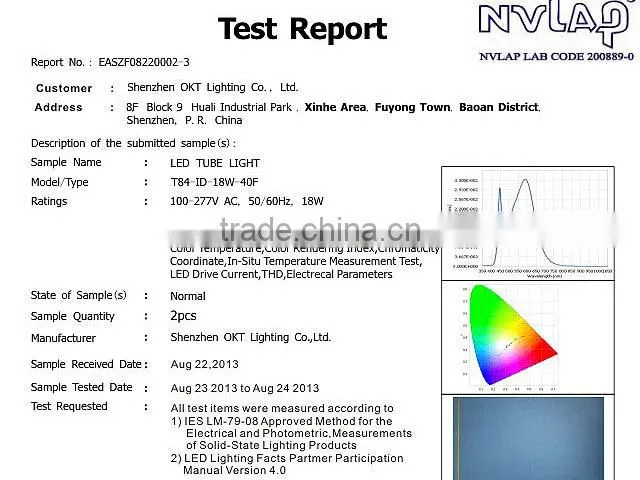

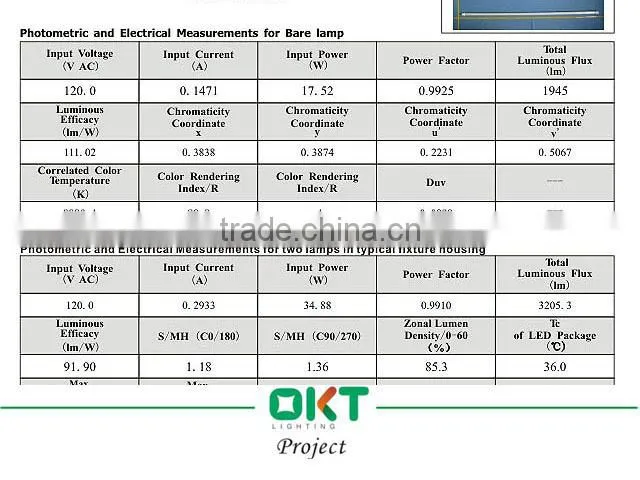

LM79 Test Report
This OKT led tube light with external driver was tested with no seasoning which made in compliance with IES LM-79-08.
It was operated at rated voltage or at voltage required by manufacturer.
The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
And relative humidity is less than 65%.
Projects For T8 Tube
OKT dlc t8 led tube light is perfect for residential and commercial applications. Many OKT t8 led tube light ul listed installed around the North American, especially united State, and with the most installed indoor luminaire run time of any manufacturer, such as:
OFFICE IN USA;
TENNIS COURT IN USA;

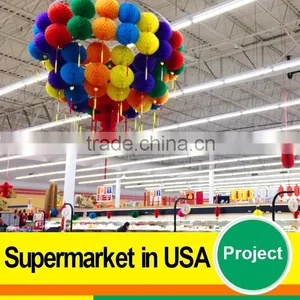

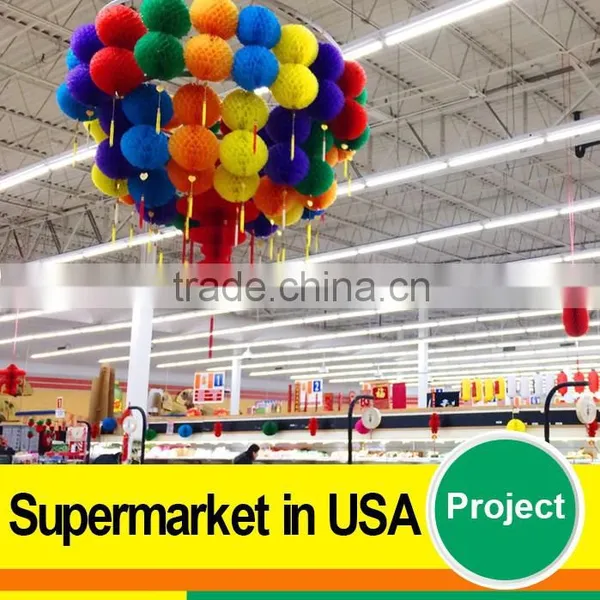

SUPERMARKET IN USA
Certificate
All OKT led tube light with external driver is listed on UL, CUL, DLC, FCC, Lighting Facts.
What is DLC? The Design Lights Consortium is recognized as the world-wide leader in rebate qualification for commercial solid state lighting applications. The DLC Qualified Product List (QPL) ensures that only high-quality, high-performance, tested and verified LED products will be eligible for rebate participating programs. The DLC certification process is extremely rigorous and every aspect of the LED light construction is reviewed for performance, efficiency, and longevity.
We're available to provide UL, CUL, Energy Star, DLC Multiple List and Private Label for ul 18w t8 led tube if needed.

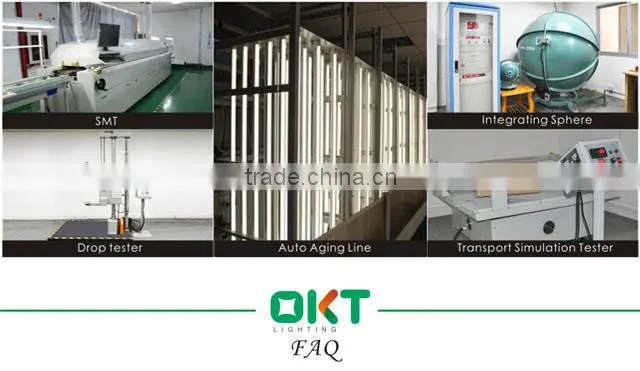

Technical Equipment

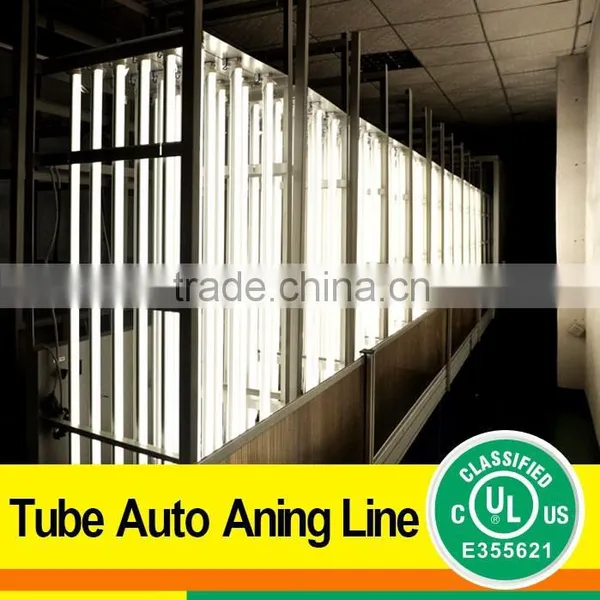

OKT apply some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our 18w t8 led tube light ul production process;
Those equipments make us deliver qualified t8 led tube light and offer more than 5 years' warranty.
FAQ
-
How about the delivery time for ul t8 led tube light?
A:we offer Quick lead time,only 1 day for sample call,10 days for 1000pcs.
-
What is your warranty for led tube light with external driver ?
A: 5 years warranty.
-
Situation 1 Under the terms of this warranty, OKT LIGHTING will provide free new products based on the proof-documents if the product have a failure occurs under normal usage within warranty period Situation 2 If failure or damage due to incorrect operation, wire connection or anything other do not follow our instruction, OKT lighting will provide paid maintenance within warranty period. -
We are the wholesaler,can you offer Multiple List and Private Label according to our requests?
A: YES.We will help you to handle ML process while our designer can design private label as required.
-
which color temperatures is listed on DLC?
A: 4000k and 5000k.
-
Can we get support if necessary?
A: we offers business policies to support all regular and new clients to expand markets,please contact us for details.
-
how is your packing?
A: we offer safty packing for shipment, see belows:
-
Model QTY PER CARTON Carton Size G.W 2ft t8 led tube light ul 50pcs 66*44*25cm 17KG 4ft t8 led tube light cul 30pcs 130*28*27cm 15KG 5ft t8 led tube light dlc 30pcs 156*28*24cm 25KG
