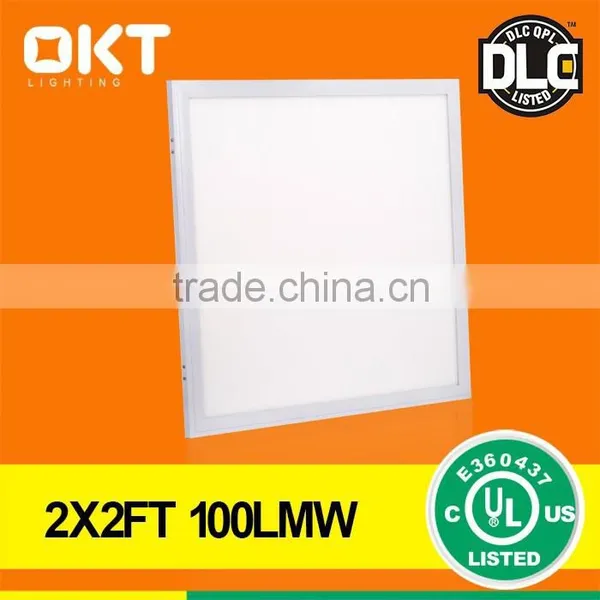

UP to 100lm/w UL DLC 2x2 surface mounted led panel light 40w
Description of surface mounted led panel light
The DLC surface mounted led panel light delivers high lumens while achieving 90 lumens per watt in 100~277 VAC Input with fired rated junction box. This 2*2FT retrofit cold white led panel light is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.
Specification of 2x2ft surface mounted led panel light
| Model | Item NO. | Input Power | Luminous Flux | DLC CCT Option | Input Voltage | Dimming | Certificate |
| 2x2FT surface mounted led panel light | VS22-DM** | 40 Watts | 3700LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
2x2FT surface mounted led panel light |
VS22-DH** | 55 Watts | 4900LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
| 2x4FT surface mounted led panel light | VS24-DM** | 50 Watts | 4600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
| 2x4FT surface mounted led panel light | VS24-DH** | 63 Watts | 5600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
| 1x4FT surface mounted led panel light | VS14-DM** | 40 Watts | 3600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL |
1x4FT surface mounted led panel light |
VS14-DH** | 50 Watts | 4500LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
Advantage of surface mounted led panel light
OKT surface mounted led panel light are UL, CUL , DLC listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:
- cULus, DLC Listed, LM79 Report Available
- More than 90lm/w
- Fire rated design with Junction box
- 0-10V dimming available
- 5 Years Warranty
- White or Silver Trim Color Options
- Suitable for Damp locations
- Accessary: Driver Box And Clips for T-Bar Included
Details Display
Customer Feedback
- We are happy with surface mounted led panel light and quality, let’s work on more. --- Luca (from NY,USA)
- 100% love the surface mounted led panel light I will be ordering more this week. ----Kody(from LA,USA)
- Thank you for your help and for the photos, are very explicit---Jose from Mexico
- We are very pleased with the quality of surface mounted led panel light and the performance.------Richard from CANADA
- the surface mounted led panel light has arrived and is excellent------John from Canada
Packing Infomation
| Model | Item No. | Sample Pack | Mass Pack | ||||
| QTY/CTN (pcs) | Carton Size (cm) | G.W(KG) | QTY/CTN (pcs) | Carton Size (cm) | G.W(KG) | ||
| 2*2ft surface mounted led panel light | VS22-DM** VS22-DH** | 2 | 70*69*17 | 14 | 4 | 70*69*17 | 21 |
| 2*4ft surface mounted led panel light | VS24-DM** VS24-DH** | 2 | 129*70*17 | 27 | 4 | 129*70*17 | 45 |
| 1*4ft surface mounted led panel light | VS14-DH** | 2 | 129*40*17 | 16 | 4 | 129*40*17 | 26 |
| VS14-DM** | |||||||
Warranty
5 years since the date of purchase for surface mounted led panel light ,welcome to viist our web to download OKT warranty terms.
More detailed info for OKT surface mounted led panel light , pls do not hesitate to inquiry now!
