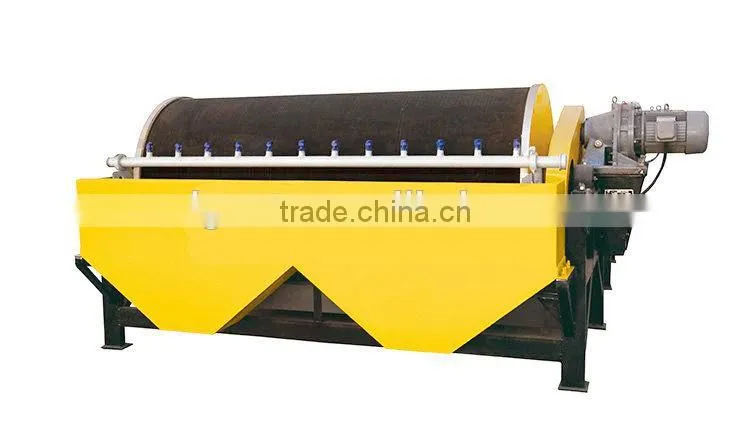

CTB wet overband magnetic separator for iron ore CTB high intensity wet magnetic separator with ISO9001:2008 Certification
1.wet magnetic separator 2.high intensity wet magnetic sepatator 3.series CTB wet magnetic separator 4.ISO9001:2008
1.Introduction of CTB wet magnetic separator
Series CTB wet magnetic separator is usually used for sorting the fine-grained magnetic minerals, or removing magnetic minerals from non-magnetic minerals. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a deep magnetic field, the machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacities.
2.Working principal of CTB wet magnetic separator
When the ore pulp goes into the separation area of the wet drum magnetic separator, as a result of different magnetic susceptibilities of a variety of minerals, under the magnetic force, the magnetic minerals are absorbed to the surface of drum, and are brought to the discharge area for ore concentrate along with the rotation of drum, then after leaving the magnetic system, the magnetic materials are flushed to ore concentrate box by the flushing water; Weak magnetic and non-magnetic minerals can not be absorbed and will flow to the discharge pipe for tailings.
4.Advantage of wet magnetic separator
♦ High magnetic field intensity
♦ Magnetic field depth, uneasy demagnetization
♦ High efficiency
♦ Strong adaptability of production fluctuation
5.Technical parameter of the machine
Model |
Capacity (t/h) |
Magnetic intensity (oe) |
Power (kw) |
Weight (wt) |
CTB600*900 |
8-15 |
1450 |
1.1 |
0.91 |
CTB600*1800 |
15-25 |
1500 |
2.2 |
1.34 |
CTB750*1200 |
25-30 |
1550 |
2.8 |
1.49 |
CTB750*1800 |
30-45 |
1550 |
3 |
2.05 |
CTB900*1800 |
35-60 |
1550 |
4 |
3 |
CTB1050*2400 |
55-90 |
1550 |
5.5 |
5 |
CTB1200*3000 |
80-150 |
1550 |
7.5 |
7.8 |
CTB1500*3000 |
120-200 |
1550 |
11 |
9.6 |

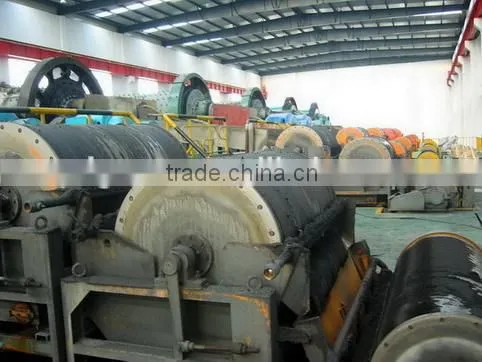

6.pictures about wet magnetic separator
standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case
or according to the customer's requirements
|
Weifang Guote Mining Equipment Co., Ltd is a modern enterprise who produces quartz sand, silica powder, potassium and sodium feldspar, calcium carbonate special equipment, provides non-metallic mineral production line test, design, consulting and the entire line of supply and dose the research and development, engineering design, production and installation, commissioning services. The scope of our services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles, food, cement, etc. Our products are sold more than thirty provinces and autonomous regions in domestic market.
Our company main products are: wet milling (rod milling) production line, dry milling with air classifier production line, highpurity quartz sand machine, electromagnetic, permanent magnetic separator, dry wet magnetic separator, vibrating feeder, air classifier, dust collector, hydraulic classifier, scrubbing, flotation machine, metal detector, screw conveyor, governor quantitative feeding meter, centralized control systems, etc. Faced with new opportunities and challenges, our company Guote will continue to take the spirit of "honesty, mutual benefit, cooperation and innovation," and dedicate to provide customers with "reliable, simple, efficient" products and services to enable our company to become a leading provider of non-metallic mining equipment.
Our company Guote is willing to work together with people from all walks of life go hand in hand, to create a better future.
|
