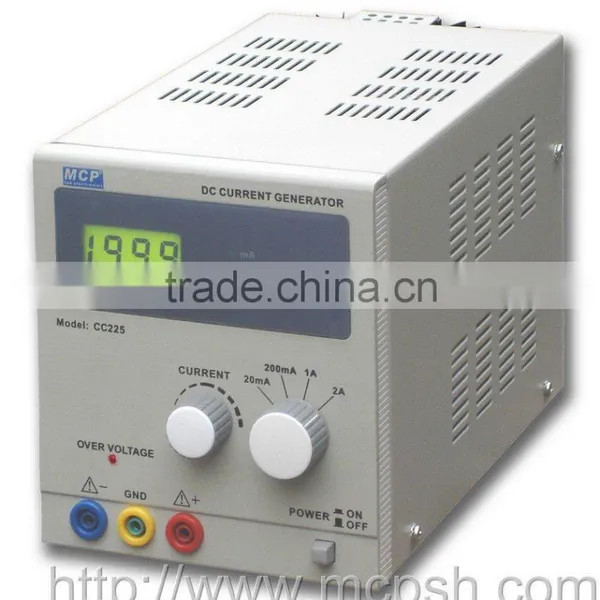

CC225 - current generator
Features:
. constant current output
. continuance adjustable
. short circuit and over voltage protection
. 3 digits LCD current meter
Specifications:
. output current: 0~2A (4 steps)
. max. voltage: 25V
. resolution: 10uA(0~20mA)
100uA(20~100~200mA)
1mA(200mA~1A)
. load regulation: 0.2%
. line regulation: 0.2%
. display: 3 1/2 digits LCD with back light
. input voltage: 110~127VAC±10% 60Hz,
220~240VAC±10%, 50Hz switchable
. dimensions(W×H×D): 132×160×270
. weight: 4kg
