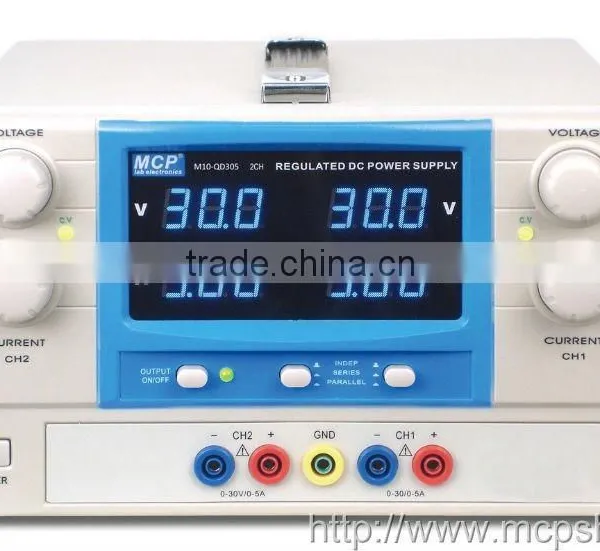

MCP M10-QD303 Dual Power Supply / Laboratory Power Supply Dual Output / Adjustable Dual dc Power Supply
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
M10-QD303
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M10-QR303 Constant Current Voltage dc Power SupplyNegotiableMOQ: 10 Pieces -
M10-SP205E - Single Output Adjustable DC Power Supply 20V/5ANegotiableMOQ: 10 Pieces
-
M10-QD305 Dual DC Power Supply / Adjustable dc Power Supply Dual / 30v Lab Power Supply/30v 5a Variable dc Power SupplyNegotiableMOQ: 10 Pieces
-
M10-QS302 Variable Power Supply / 0 30v 2a Power Supply Dc/bench Power SupplyNegotiableMOQ: 10 Pieces
-
M10-QS603 60v 3a 5a dc Power Supply 60 Volt/60v Power Supply / 60 Volt Power SupplyNegotiableMOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
MCP
Model Number
M10-QD303
Output Power
101 - 200W
Output Type
Dual
Input Voltage
Other
Output Voltage
0-30V
Output Current
3A
Features
. Output off function
. Dual independent adjustable DC outputs.
. Independent, series and parallel variety output
. Constant voltage and constant current
. Low ripple and noise
. Four LED displays with 3 digits, selectable for two sets
output voltage and current display simultaneously
. 16 hours continuous output with full load
. Auto tracking output
Specifications
.Line Regulation: CV 1X10-4+3mV CC 2X10-3+3mA
.Load Regulation: CV 1X10-4+4mV CC 2X10-3+5mA
.Ripple & Noise: CV 1mVrms CC 3mA rms
.Display Accuracy: Voltmeter±(0.2%Rdg+2digits)
Ampmeter±(1.0%Rdg+2digits)
.Input Voltage: 110~127VAC±10%, 220~240VAC±10% Switchable
| Model | Independent Output | Series Output | Parallel Output | Dimensions (LxWxD) |
Weight (kg) |
|---|---|---|---|---|---|
| M10-QD302 | CH1/0~30V/0~2A CH2/0~30V/0~2A |
CH1+CH2 |
CH1//CH2 0~30V/0~4A |
250x135x300mm | 8 |
| M10-QD303 | CH1/0~30V/0~3A CH2/0~30V/0~3A |
CH1+CH2 0~60V/0~3A |
CH1//CH2 0~30V/0~6A |
||
| M10-QD305 | CH1/0~30V/0~5A CH2/0~30V/0~5A |
CH1+CH2 0~60V/0~5A |
CH1//CH2 0~30V/0~10A |
||
| M10-QD3010 | CH1/0~30V/0~10A CH2/0~30V/0~10A |
CH1+CH2 0~60V/0~10A |
CH1//CH2 0~30V/0~20A |
250x135x460mm | 12 |
| M10-QD3020 | CH1/0~30V/0~20A CH2/0~30V/0~20A |
CH1+CH2 0~60V/0~20A |
CH1//CH2 0~30V/0~40A |
16 | |
| M10-QD6010 | CH1/0~60V/0~10A CH2/0~60V/0~10A |
CH1+CH2 0~120V/0~10A |
CH1//CH2 0~60V/0~20A |
16 |
