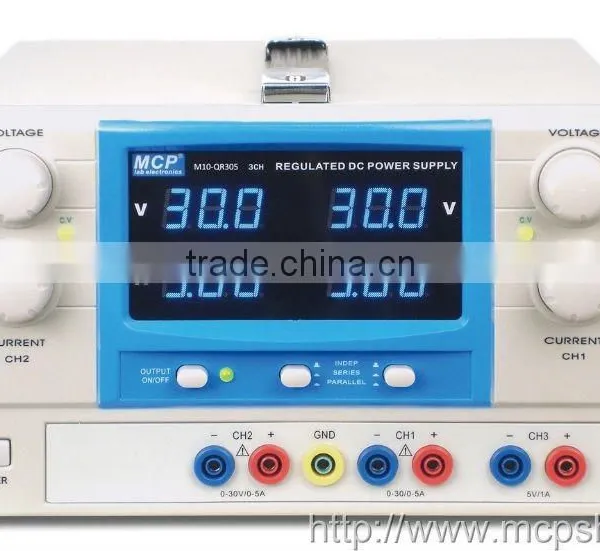

M10-QR303 Constant Current Voltage dc Power Supply
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Model Number:
M10-QR303
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M10-SP205E - Single Output Adjustable DC Power Supply 20V/5ANegotiableMOQ: 10 Pieces -
M10-QD305 Dual DC Power Supply / Adjustable dc Power Supply Dual / 30v Lab Power Supply/30v 5a Variable dc Power SupplyNegotiableMOQ: 10 Pieces
-
M10-QS302 Variable Power Supply / 0 30v 2a Power Supply Dc/bench Power SupplyNegotiableMOQ: 10 Pieces
-
M10-QS603 60v 3a 5a dc Power Supply 60 Volt/60v Power Supply / 60 Volt Power SupplyNegotiableMOQ: 10 Pieces
-
M10-QS3010 - dc Power Supply Variable 10a/30v 10a dc Power Supply/power Supply 0-30v 10a/ Power Supply 30v 10a/power Supply 300wNegotiableMOQ: 10 Pieces
Place of Origin
Shanghai, China
Model Number
M10-QR303
Specifications
M10-QR303 DC power supply. Output off function
. Triple independent DC outputs. Two adjustable and
one fixed output
Features
. Output off function
. Triple independent DC outputs. Two adjustable and
one fixed output
. Independent, series and parallel variety output
. Constant voltage and constant current
. Low ripple and noise
. Four LED displays with 3 digits, selectable for two sets
output voltage and current display simultaneously
. 16 hours continuous output with full load
. Auto tracking output
Specifications
.Line Regulation: CV 1X10-4+3mV CC 2X10-3+3mA
.Load Regulation: CV 1X10-4+4mV CC 2X10-3+5mA
.Ripple & Noise: CV 1mVrms CC 3mA rms
.Display Accuracy: Voltmeter±(0.2%Rdg+2digits)
Ampmeter±(1.0%Rdg+2digits)
.Input Voltage: 110~127VAC±10%, 220~240VAC±10% Switchable
| Model | Independent Output | Series Output | Parallel Output | Dimensions (LxWxD) |
Weight (kg) |
|---|---|---|---|---|---|
| M10-QR302 | CH1/0~30V/0~2A CH2/0~30V/0~2A CH3/1A/5V |
CH1+CH2 |
CH1//CH2 0~30V/0~4A CH3/1A/5V |
250x135x300mm | 8 |
| M10-QR303 | CH1/0~30V/0~3A CH2/0~30V/0~3A CH3/1A/5V |
CH1+CH2 0~60V/0~3A CH3/1A/5V |
CH1//CH2 0~30V/0~6A CH3/1A/5V |
||
| M10-QR305 | CH1/0~30V/0~3A CH2/0~30V/0~3A CH3/1A/5V |
CH1+CH2 0~60V/0~5A CH3/1A/5V |
CH1//CH2 0~30V/0~10A CH3/1A/5V |
