Home > Products > EDUCATION INSTRUMENTS > DBR-07 decade resistance box

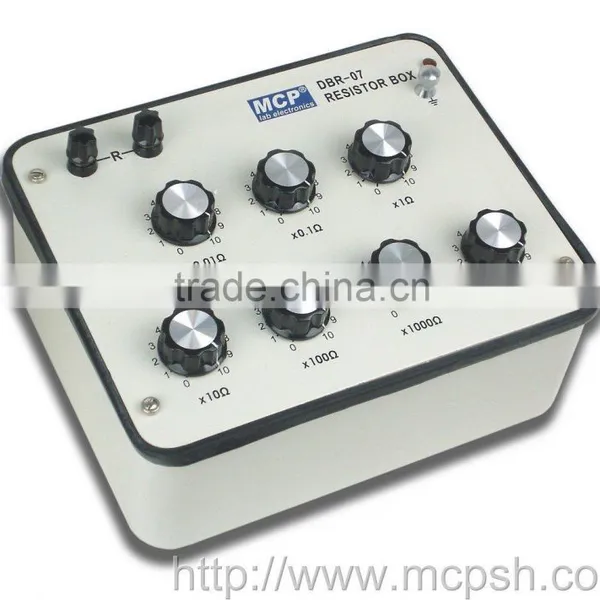

DBR-07 decade resistance box
Negotiable
/ Piece
4 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- T/T
You May Like
Product Details
Place of Origin: | Shanghai, China | Brand Name: | MCP | Model Number: | DBR-07 |
Type: | Variable Resistor | Resistance: | 0~111111.1Ω | Resistance Tolerance: | ±1‰ |
Product Description
Specifications
Decade resistance boxHigh accuracy to 0.1%
RESISTOR BOX
Good packing
wide specificaiton
decade resistance box
Feature
.High accuracy to 0.1%
Decade | Range | Max. Current | Dimension(mm) (LxWxH) | Weight |
1 | 0.01Ωx10 | 700mA | 285 X 140 X215 | 2.2kg |
2 | 0.1Ωx10 | 700mA | ||
3 | 1Ωx10 | 700mA | ||
4 | 10Ωx10 | 200mA | ||
5 | 100Ωx10 | 70mA | ||
6 | 1000Ωx10 | 20mA | ||
7 | 10000Ωx10 | 7mA |
