Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > BXD300 - Slide Rheostat

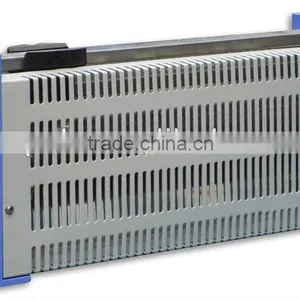

BXD300 - Slide Rheostat
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
BXD300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BXD600 - Variable Rheostat / Adjustable RheostatNegotiableMOQ: 10 Pieces -
RXG250 - Physics Laboratory Equipment/physics Laboratory InstrumentsNegotiableMOQ: 10 Pieces
-
F5-001 Capacitor Bank / Capacitor BankNegotiableMOQ: 10 Pieces
-
MCP F8-005 - Star Delta Switch for AC Motor / Star Delta StarterNegotiableMOQ: 10 Pieces
-
RXG250T - SOLENOID / for Tesla Meter/starter SolenoidNegotiableMOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
MCP
Model Number
BXD300
Type
Variable Resistor
Resistance Tolerance
±10%
Rated Power
320
Specifications
. RHEOSTAT. Fused safety socket of the slide bar
. 100 scale division to show the resistance sett
BXD300 - RHEOSTAT
Feature
. Fused safety socket of the slide bar
. Enclose in robust sheet metal cover
. 100 scale division to show the resistance setting.
. Good linearity
. Sliding contact of coppers graphite
. More tighter structure
. New apparance design
| Max. Working Voltage | 380VAC, 400VDC | |
| Resistance tolerance | ±10% | |
| Insulation resistance | >3x10 Ω | |
| Earthing resistance | 0.1Ω | |
| Rated resistance | see table | |
| Model | Power VA |
Resistance (Ω) |
Max. Current |
Dimensions mm |
Ceramic Pipe diameter |
Weight kg |
| BXD160 | 160 | 1 | 13A | 280x180x100 | 64mm | 2.3 |
| 3.3 | 7A | |||||
| 10 | 4A | |||||
| 33 | 2.2A | |||||
| 100 | 1.25A | |||||
| 330 | 0.7A | |||||
| 1000 | 0.4A | |||||
| 3300 | 0.22A | |||||
| BXD300 | 320 | 1 | 18A | 380x180x100 | 64mm | 2.8 |
| 3.3 | 10A | |||||
| 10 | 5.7A | |||||
| 33 | 3.1A | |||||
| 100 | 1.8A | |||||
| 330 | 1.0A | |||||
| 1000 | 0.57A | |||||
| 3300 | 0.31A | |||||
| 10000 | 0.18A | |||||
| BXD600 | 640 | 0.5 | 36A | 480x180x100 | 64mm | 3.5 |
| 1.6 | 20A | |||||
| 5 | 11.4A | |||||
| 16.5 | 6.2A | |||||
| 50 | 3.6A | |||||
| 165 | 2A | |||||
| 500 | 1.1A | |||||
| 1650 | 0.63A | |||||
| 5000 | 0.36 |
