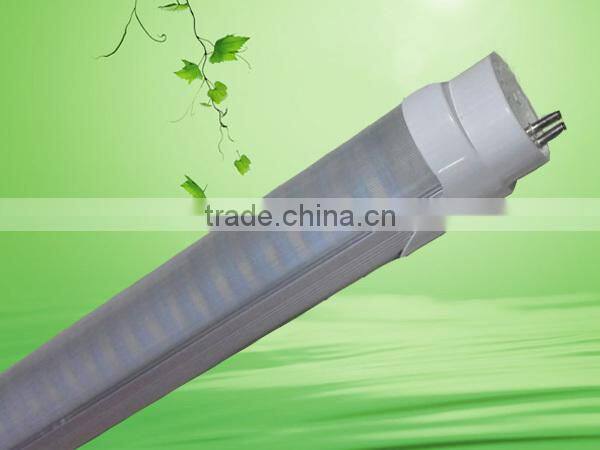

T5 LED Tube , Ballast Compatible
Special Features:
1. Quality Build-in non-Isolated Driver ( New technology )
A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%
D, CE, PSE compliance
E, Full protection: short circuit, over voltage, over current and over temperature
2. High-performance Original Epistar LED and perfect wiring design
It has High CRI and High lumens and high reliability. Even if one led failed, the remaining LEDs will still work.
3, Safety

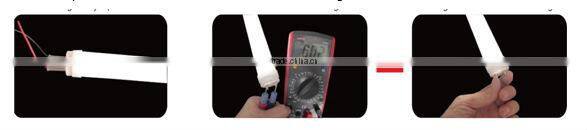

A, One-end powered , no electric shock risk .
One-end power Other end has no voltage No electric shock risk
B, Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC
C, Photobiological Safety standards : EN 62471
D, Hazardous materials restriction standards: RoHS
E, Quality Management standards: ISO 9001
4. Warranty Policy
5 years warranty with original written warranty ; For
any defects, we will solve it by either reparing any defective parts or replacing a new LED
tube.( For more details , please ask for Warranty Statement)
6, Simple
It is easy to use and install with the instruction manual .
7, Professional
Full installation instructions and diagrams provided .
8 , Test Show (SI-2 DIY led tubes are tested with PHILIPS , OSRAM, ABB, GE, BAG, TRIDONIC, HELVAR, BILTEMA, Panasonic , TOSHIBA, Hitachi and other electronic ballast , and almost all magnetic/inductive ballast )
Application:
1. Office building lighting
2. Hotel lighting

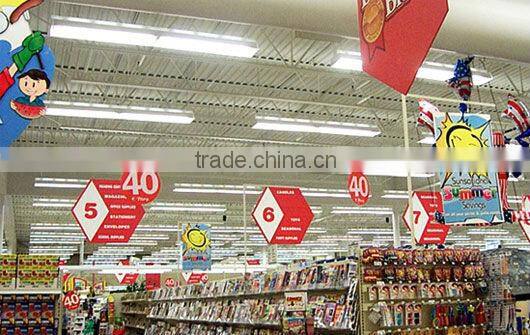

3. Supermarket lighting
4. Warehouse lighting
5. Airport lighting
6. Factory lighting
7, School Lighting
8, Hospital Lighting
9, Car parking Lighting
10, Other lighing

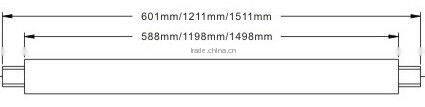

Drawing :
Part No. |
Main Spec. |
|
|
CA-CLT03WF5 ( 1500mm long )
|
Working power |
25W±10% |
Input voltage |
85-265VAC |
|
Working frequency |
50-60Hz |
|
Luminous flux |
2200-2500Lm |
|
power factor |
>0.95 |
|
CRI |
>80 |
|
Color Temperature (CCT) |
Cool white : 5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K |
|
PC type |
PC/ Aluminum |
|
Size |
1500mm*28mm |
|
Working temperature |
-20~+40°C |
|
Storage temperature |
-40~+80°C |
|
Light Frequency |
90Lm/W |
|
Viewing angle |
180 degree |
|
Packing details :
Item No. |
Tube Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-CLT01WF2 |
600mm |
50pcs |
25kg |
632*420*220mm |
CA-CLT02WF4 |
1200mm |
25pcs |
18kg |
1246*215*220mm |
CA-CLT03WF5 |
1500mm |
25pc |
22kg |
1540*215*220mm |
Caution & Warning
1.Use indoor or some place where no water.
2.Work under the fixed voltage.
3.Pls operate in the right way when you install the LED tube in case to avoid the power harm and body harm.
4. non-dimmable
5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
