18w Super Bright Original Osram LED Tube , High CRI,High-performance and Perfect Wiring Design,

18w Super Bright Original Osram LED Tube , High CRI,High-performance and Perfect Wiring Design, thumbnail-1
18w Super Bright Original Osram LED Tube , High CRI,High-performance and Perfect Wiring Design, photo-1
US$ 34 - 35 MOQ: 4 Pieces
Key Specifications
Get Latest Price
LED Light Source:
osram led
Warranty(Years):
3
Input Voltage(V):
85-265V
Contact Supplier Request Quote Chat Now
Shenzhen Cina LED Lighting Tech Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source osram led
Warranty(Years) 3
Input Voltage(V) 85-265V
Lamp Power(W) 18
Lamp Luminous Flux(lm) 1700-1800
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, Cool white : 5700K±500K Nature white: 4000K±400K Warm white : 3000K
Working Temperature(℃) -20, +40
Lamp Body Material Aluminum
IP Rating IP55
Certification CE, FCC, PSE
Place of Origin Guangdong, China
Brand Name CINA
Model Number Other, CA-DT83014WF4-18W

Special Features:

1.Build-in Isolated Driver with 5-7 years lifetime( New technology )

Build-in Driver with unique technology , lasting 5-7 years.So our LED tubes’ lifespan can reach 40,000 hours, and according to 12 hours working per day, it can be constantly used for more than 5-year. But the traditional fluorescent can not exceed 6,000 hours.



2, LED

A, Original Osram LED 3014

B, High CRI

C,Super bright LED , up to 10Lm/pc



3.Build-in Z –Diodes ( New technology )

Even if one led failed, the remaining LEDs will still work.



4.Warranty Policy

3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).

5, Safety

One-end powered , no electric shock risk .

  One-end power           Other end has no voltage         No electric shock risk



18w Super bright Original Osram LED tube , High CRI,High-performance and perfect wiring design,



6, Simple



      It is easy to use and install with the instruction manual .



7, Professional



Full installation instructions and diagrams provided .







8, Principles



Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC



             Photobiological Safety standards : EN 62471



       Hazardous materials restriction standards: RoHS



                Quality Management standards: ISO 9001

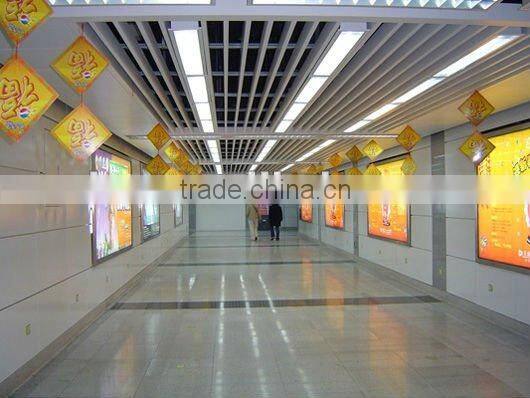

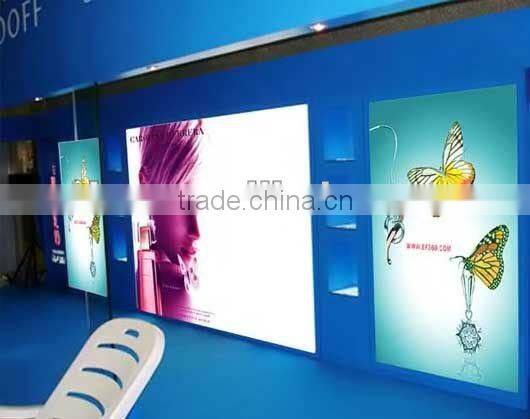

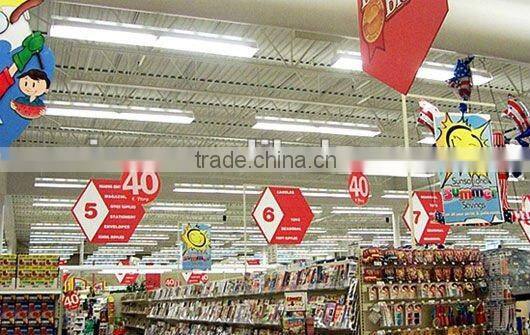

Application:









18w Super bright Original Osram LED tube , High CRI,High-performance and perfect wiring design,18w Super bright Original Osram LED tube , High CRI,High-performance and perfect wiring design,18w Super bright Original Osram LED tube , High CRI,High-performance and perfect wiring design,







1. Office building lighting



2. Hotel lighting



3. Supermarket lighting



4. Warehouse lighting



5. Airport lighting



6. Factory lighting



7, School Lighting



8, Hospital Lighting



9, Car parking Lighting



10, Other lighing



Technical Specification:







CA-DT83014WF4-18W ( 1200mm long )

Working power

18W±10%

Input voltage

85-265V

Rated frequency

50-60Hz

Luminous flux

1700-1800Lm

Power factor

>0.95

CRI

>75

Color Temperature (CCT)

Cool white :   5700K±500K

Nature white: 4000K±400K

Warm white : 3000K±300K

PC type

PC/ Aluminum

Size

1200mm*30mm

Working temperature

-20~+40°C

Storage temperature

-20~+80°C

Lighting efficiency

90Lm/W

Viewing angle

200 degree

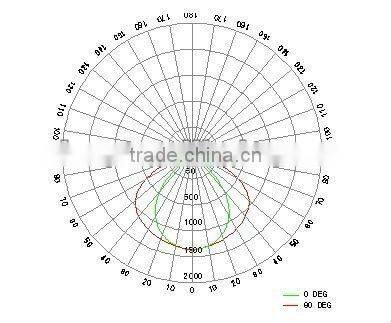

Light distribution Curve ( IES File available, please contact us )





18w Super bright Original Osram LED tube , High CRI,High-performance and perfect wiring design,



Packing details :







Item No.

Tube Size

Packing Qty

Gross Weight

Carton Size(L*W*H)

CA-DT83014WF4-18W

1200mm

25pcs

18kg

1246*215*220mm















Caution & Warning



1.Use indoor or some place where no water.



2.Work under the fixed voltage.



3.Pls operate in the right way when you install the LED Tube in case to avoid the power harm and body harm.



4.Non-dimmable.



5.If any doubt about the installation or use of this product, consult a competent electrician or technician.
