Ballast-compatible T8 LED tube no need remove the Ballast and no need change the Wiring

Specifications

Safety: One-end powered
Simple: Working with the ballasts
Professional: Manual provided
Principles: CE, PSE, TUV,RoHS

SI-2 DIY LED Tube

Philips , Osram , Panasonic , ABB(Germany) , BAG(Germany), BAG(Netherlands), TRIDONIC(Australia) , BILTEMA(Belgium),Toshiba(Japan), Hitachi(Japan) Ballast and more ,   NO PROBLEM



Special Features:



1. High-performance LED and Build-in Z –Diodes

Even if one led failed, the remaining LEDs will still work.



2, Isolated Driver with 5-7 years lifetime

A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%





3.Warranty Policy

3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).





4, Safety

One-end powered , no electric shock risk .





5, Simple

      It is easy to use and install with the instruction manual .



6, Professional

Full installation instructions and diagrams provided .



7, Principles

Fully compliant with electrical Safety standards :  CE , TUV , PSE, FCC

              Photobiological Safety standards :  EN 62471

       Hazardous materials restriction standards:  RoHS





Application:



1. Office building lighting

2. Hotel lighting

3. Supermarket lighting

4. Warehouse lighting

5. Airport lighting

6. Factory lighting

7, School Lighting

8, Hospital Lighting

9, Car parking Lighting

10, Other lighing



Technical Specification:

Part No.	Main Spec.
CA-DT83014WF2-10WR ( 600mm long )	Working power	10W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	1000-1200Lm
	power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :    5700K±500K Nature white: 4000K±400K Warm white :  3000K±300K
	PC type	PC/ Aluminum
	Size	600mm*30mm
	Working temperature	-40~+40°C
	Storage temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	120 degree
CA-DT83014WF4-21WR ( 1200mm long )	Working power	21W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	2000-2400Lm
	Power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :    5700K±500K Nature white: 4000K±400K Warm white :  3000K±300K
	PC type	PC/ Aluminum
	Size	1200mm*30mm
	Working temperature	-40~+40°C
	Reserve temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	120 degree
CA-DT83014WF5-25WR( 1500mm long )	Working power	25W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	2700-3000Lm
	Power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :    5700K±500K Nature white: 4000K±400K Warm white :  3000K±300K
	PC type	PC/ Aluminum
	Size	1500mm*30mm
	Working temperature	-40~+40°C
	Reserve temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	120 degree

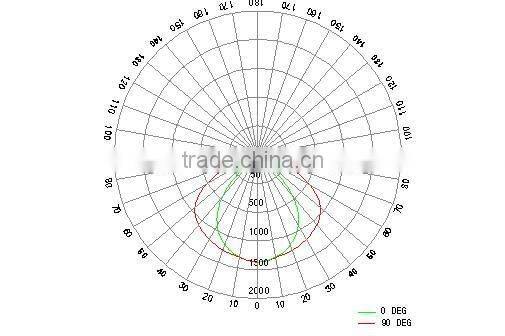

Light distribution Curve ( IES File available, please contact us )





Caution & Warning

1.Use indoor or some place where no water.

2.Work under the fixed voltage.

3.Pls operate in the right way when you install the LED Tube in case to avoid the power harm and body harm.

4.Non-dimmable.

5.If any doubt about the installation or use of this product, consult a competent electrician or technician.
