Help CenterLED T8 5050 Single End Powered 21w Tube
Related Products
-
LED T8 5050 Single End Powered 25w TubeUS$ 10 - 25MOQ: 5 Pieces -
LED T8 TUBE SI-2 DIY (Frosted Cover)magnetic+electronic BallastsUS$ 19 - 38MOQ: 25 Pieces
-
T8 LED TUBE,SI-2 DIY (Frosted Cover)magnetic+electronic Ballasts,energy SavingUS$ 19 - 38MOQ: 25 Pieces
-
LED T8 Lamp SI-2 DIY Energy-saving,magnetic+electronic Ballasts,with CE RoHsUS$ 19 - 38MOQ: 25 Pieces
-
LED T8 5050 ,High-performance Original Samsung LED, One-end Power, no Electric Shock Risk!US$ 10 - 25MOQ: 5 Pieces
Specifications
LED T8 5050 21w tubeSamsung LED
Build-in Z Diodes
CRI>85
Wide Angle: 300 degree
Special Features:
1. Quality Driver with 3-year warranty(Taiwan Meanwell driver)
A
, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%
D, UL, TUV, PSE compliance
E, Full protection: short circuit, over voltage, over current and over temprature
2. High-performance Original Samsung LED( Made in Korea ) and perfect wiring design
A, Original SAMSUNG LED
B, High CRI: 85
C, Super bright LED , up to 30Lm/pc
3, Safety

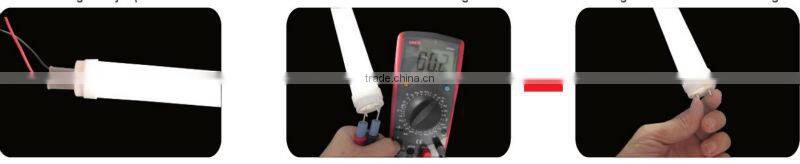

A, One-end powered , no electric shock risk .
One-end power Other end has no voltage No electric shock risk
B, Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC
C, Photobiological Safety standards : EN 62471
D, Hazardous materials restriction standards: RoHS
E, Quality Management standards: ISO 9001
4, Warranty Policy
3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching). For any defects, we will solve it by either reparing any defective parts or replacing a new LED tube. ( For more details , please ask for Warranty Statement)
4.Build-in Z –Diodes ( New technology )
Even if one led failed, the remaining LEDs will still work.
5, Wide Angle: 300 degree
6, Simple
It is easy to use and install with the instruction manual .
7, Professional
Full installation instructions and diagrams provided .

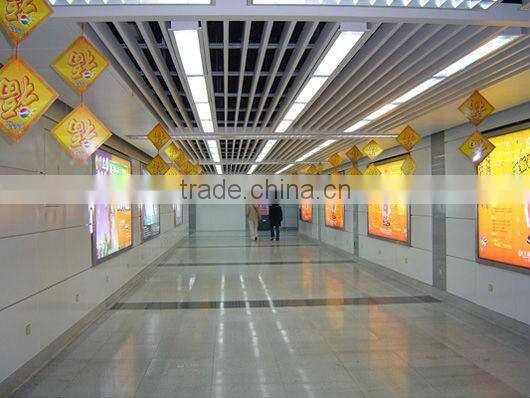

Application:
1. Office building lighting
2. Hotel lighting
3. Supermarket lighting
4. Warehouse lighting
5. Airport lighting
6. Factory lighting
7, School Lighting
8, Hospital Lighting
9, Car parking Lighting
10, Other lighing
Technical Specification:
Part No. |
Main Spec. |
|
|
CA-T85050WF4-21WRJ ( 600mm long ) |
Working power |
21W±10% |
Input voltage |
85-265VAC |
|
Working frequency |
50-60Hz |
|
Luminous flux |
1800-2100Lm |
|
LED |
SAMSUNG LED |
|
power factor |
>0.95 |
|
CRI |
>85 |
|
Color Temperature (CCT) |
Cool white : 5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K |
|
PC type |
PC/ Aluminum |
|
Size |
1200mm*26mm |
|
Working temperature |
-20~+50°C |
|
Storage temperature |
-40~+80°C |
|
Light Frequency |
100Lm/W |
|
Viewing angle |
300 degree |
|
Caution & Warning
1.Use indoor or some place where no water.
2.Work under the fixed voltage.
3.To install the LED tube after put off the ballast and starter.
4.Pls operate in the right way when you install the LED tube in case to avoid the power harm and body harm. When installing , please note the short-circuit protect such as the socket with the fuse.
5. non-dimmable
