Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > LED Stadium Lights 500-1000W With ETL/cETL,CE , SAA, IP66, ROHS Approved

LED Stadium Lights 500-1000W With ETL/cETL,CE , SAA, IP66, ROHS Approved

Name: LED Stadium Lights 500-1000W With ETL/cETL,CE , SAA, IP66, ROHS Approved
Brand: CINA
SKU: 114227693
Availability: InStock

LED Stadium Lights 500-1000W With ETL/cETL,CE , SAA, IP66, ROHS Approved thumbnail-1

LED Stadium Lights 500-1000W With ETL/cETL,CE , SAA, IP66, ROHS Approved photo-1

US$ 300 - 500 MOQ: 2 Pieces

Key Specifications

Get Latest Price

LED Light Source:

CREE LED

Input Voltage(V):

90-305VAC

Lamp Power(W):

500

Contact Supplier Request Quote Chat Now

Shenzhen Cina LED Lighting Tech Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source CREE LED

Input Voltage(V) 90-305VAC

Lamp Power(W) 500

Lamp Luminous Flux(lm) 45000-50000Lm

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Other, Warm white, Cool white

Working Temperature(℃) -40, 70

Working Lifetime(Hour) 40000

Lamp Body Material Other

IP Rating IP66

Certification CE, PSE

Place of Origin Guangdong, China

Brand Name CINA

Model Number CA-CLW50-500W

LED Stadium Light 500W

Special Feature :

1. Quality Waterproof Driver with 5-year warranty(Taiwan Meanwell driver)

A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>95%

D, UL, TUV, PSE compliance

2. High-performance Original CREE LED and perfect wiring design

Even if one led failed, the remaining LEDs will still work.

3, Safety

A, CE, RoHS, PSE , ATEX, EN62471,IP66

B, IP66 test pass
C, Safe voltage output : 36VDC Max output

D, 4000V Hi-pot test pass

4,Low Light Loss

The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.

5,Environment-Friendly

While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.

6,Anti-vibration

Solid-state device. Can withstand Moderate vibrations

7,Warranty Policy

5 years warranty with free collection and free delivery .

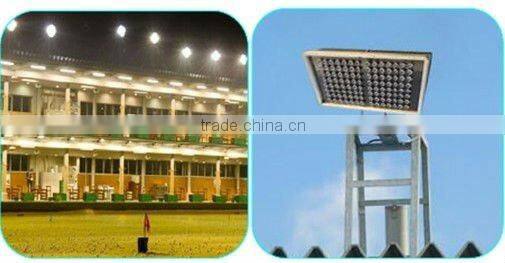

Application :

n Recreation area lighting

n Warehouse lighting

n Sign lighting

n Building lighting

n Car park lighting

n Perimeter fence lighting

n Street lighting

n Gas station lighting

Technical Specification :

Product Code	CA-CLW50-500W
Waterproof Rate	IP66
Total Power Comsuption	500W±10%
Input Voltage	90-305VAC
Input Frequency	47-63Hz
Light Source	CREE LED
lumen	45000-50000Lm
Luminous Efficiency	90Lm/W
Beam Angle	5/25/60 degree
LED Color	Warm white, Cool white
Color Temp(K)	3000K±300,5700K±500
CRI	Ra>80
LED Lifespan	40000Hrs
Operating Temp	-40°C to +70°C
Working Humidity	0-95%
Alu Shell Color	Black(Standard)
Product Size(mm)	600x300x80
Packing Size(mm)	700x400x 160
Weight	13kg

Packing Details:

Part No.	Item Size	Packing Qty	Gross Weight	*Carton Size(LWH)*
CA-CLW50-500W	600x300x80mm	1Pcs	13kg	700x400x160mm

Caution & Warning:

1, To ensure the feature of water resistance , unauthorized person is not allowed to disassemble flood light construction .

2, The safety operating temperature is -40°C to +70°C . Make the product work in the circumstances with this temperature range . Otherwise the product will break down or components inside may have a shorter lifespan . The average temperature on the product body is 40-50 deg.Celsius . It is suggested the product is installed beyond the hand touch on the metal body .

3, Don’t give a stress on the front surface of the glass with more than 0.2MPA/m²

4, Please make sure the electricity is powered off before the maintenance .

5.If any doubt about the installation or use of this product, consult a competent electrician or technician .
