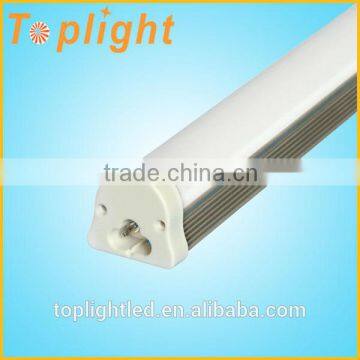

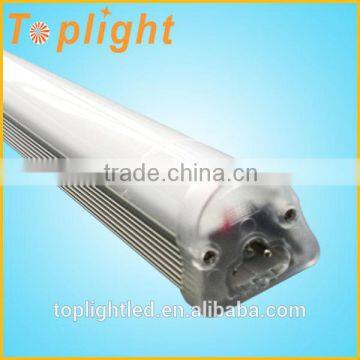

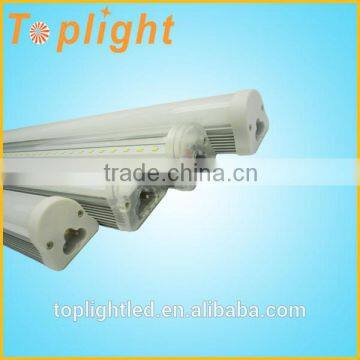

CE RoHS TUV PSE SAA APPROVED 30cm 60cm 90cm 120cm 150cm 180cm 240cm 18W t8 led tube light t5 integration led tube light Quality Choice

 LED T8 Unity Tube Light Electrical Parameter

Tube Length

(mm)

Model No.

LED Quantity

(pcs)

Luminous Flux

(lm)

Socket

309mm

TP-T8LAMP72-5W

72pcs

432-500lm

3pin

566mm

TP-T8LAMP108-6W

108pcs

650-750lm

3pin

566mm

TP-T8LAMP144-8W

144pcs

860-1000lm

3pin

557mm

TP-T8LAMP150-10W

150pcs

890-1070lm

3pin

796mm

TP-T8LAMP216-12W

216pcs

1300-1510lm

3pin

906mm

TP-T8SMD189-10W

189pcs

1130-1320lm

3pin

871mm

TP-T8LAMP204-12W

204pcs

1180-1450lm

3pin

871mm

TP-T8SMD216-12W

216pcs

1300-1510lm

3pin

1177mm

TP-T8SMD276-15W

276pcs

1510-1890lm

3pin

1177mm

TP-T8LAM288P-18W

288pcs

1610-1930lm

3pin

1177mm

TP-T8LAMP322-18W

322pcs

1760-2155lm

3pin

1477mm

TP-T8SDM350-20W

350pcs

3050-3480lm

3pin

1477mm

TP-T8LAMP384-22W

384pcs

2300-2680lm

3pin

1680mm

TP-T8LAM432P-25W

432pcs

3380-4035lm

3pin

2347mm

TP-T8LAMP644-40W

644pcs

3348-3864lm

3pin

LED T8 Unity Tube Light Basic Parameter

Power

5W,6W,8W,10W,12W,15W,18W,20W,22W,25W,40W

LED Source

Epistar 3528SMD

Input voltage

85-277VAC

Beam Angle

120degree

Power Factor

>0.85

Power Efficiency

>92%

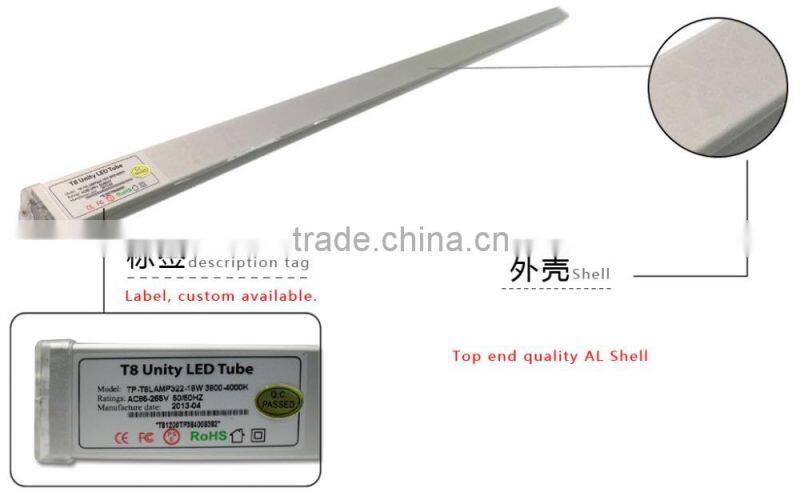

Material

AL+PC

LED T8 Unity Tube Light PC and Color Temperature

Color Temperature

Warm White(2700-3500K)

Natural White(5000-5500K)

Cool White(6000-7000K)

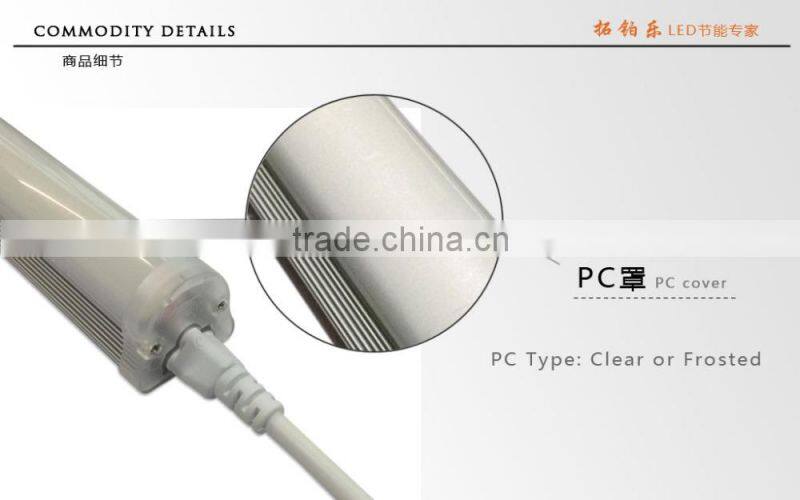

Tube PC

Clear PC

Frosted PC

• LED T8 Unity Tube Light could be installed and used directly.
• Kindly Notice: before installing, please make sure the power source is off!

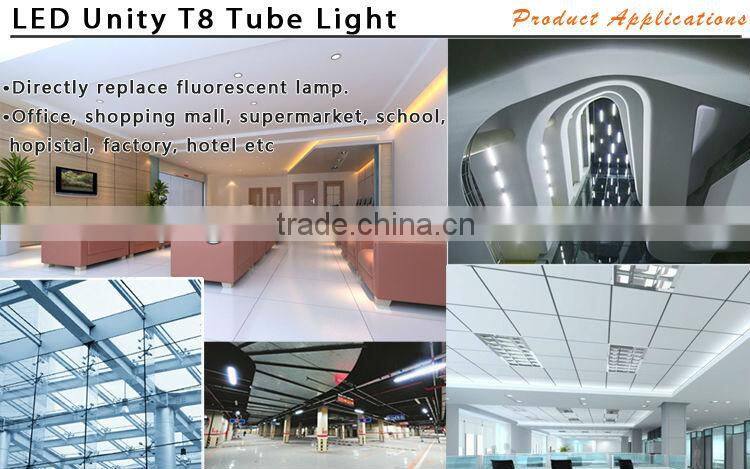

Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.

1. With appearance patent & innovative usage patent, Patent No. is No.201130466046.8 & No.201120198027.8

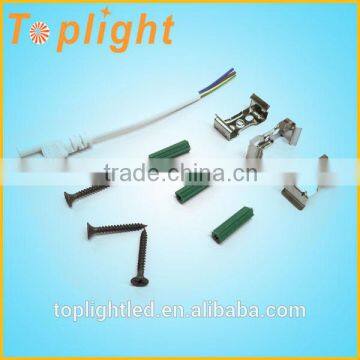

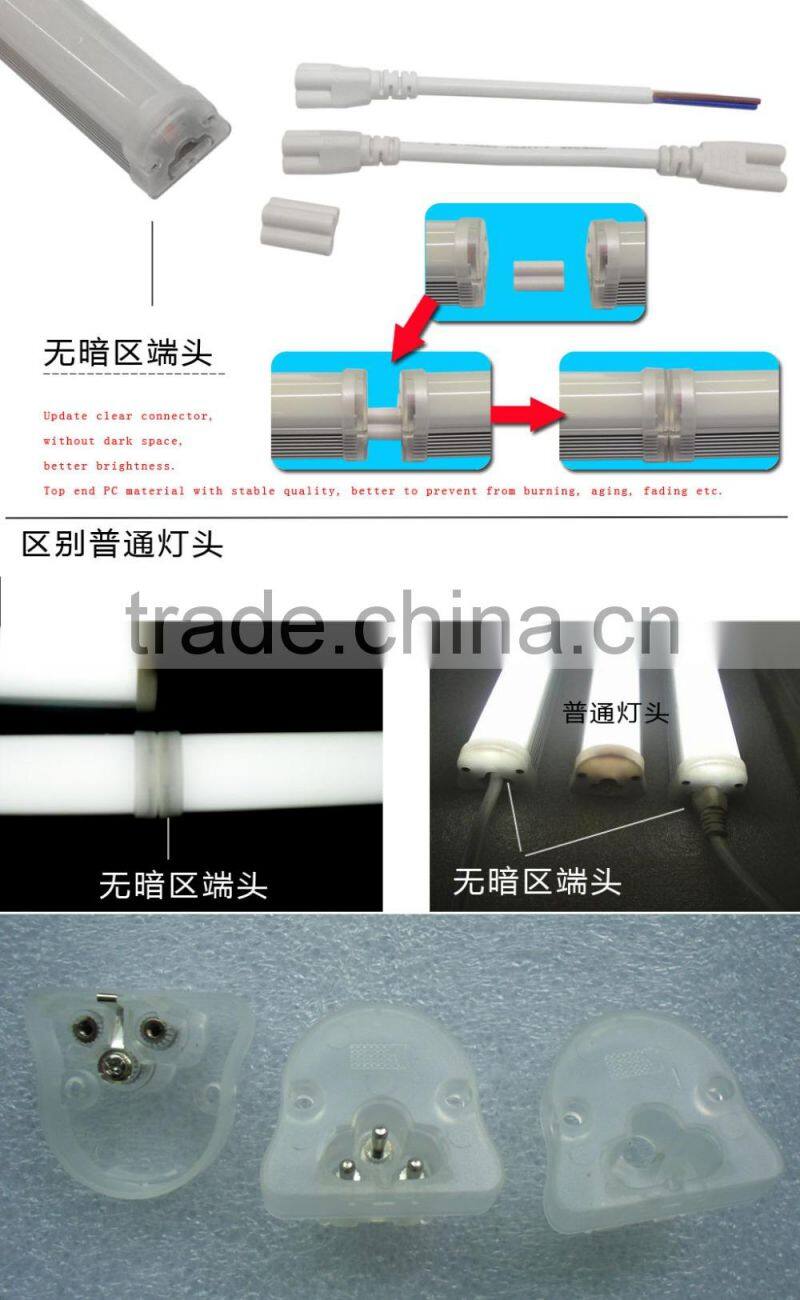

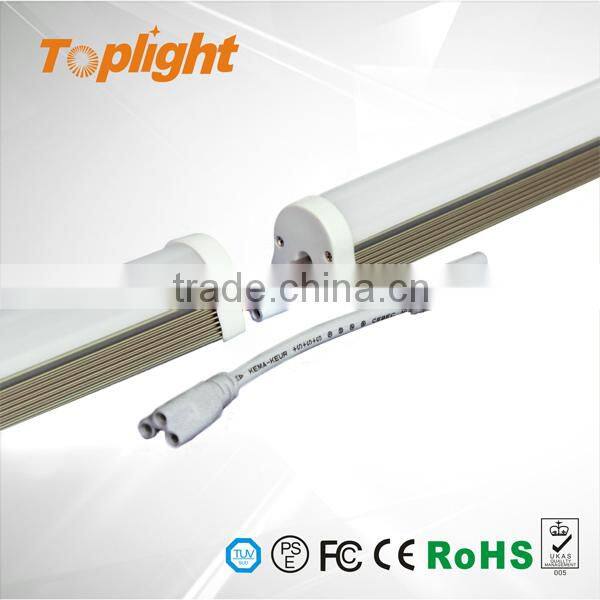

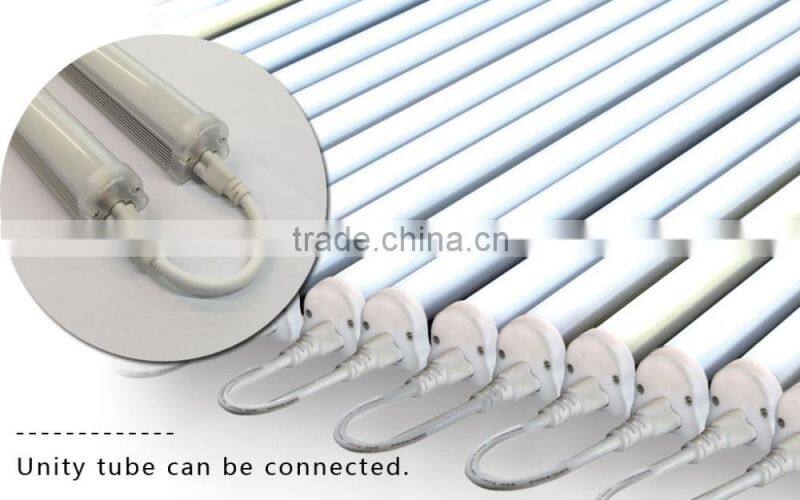

2. Can be contacted between the lamps,with middle contact wire, or series of length contacting wires

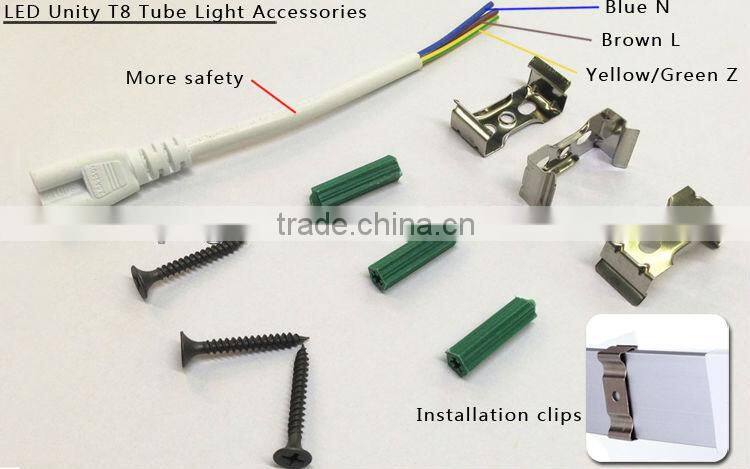

3. 2kinds of installation ways, special design with 3pins plug, according to European’s safety standard
4. Very suitable for new installation project, directly to use once installing well.

Each three workers with one QC to guarantee.

Inspection Of Finish LED Light

• Load test(Electrical spec. test)
• Aging test
• High-voltage test
• Grounding conduction test
• Install test
• Adhesion test

• Investigate your complaint;
• Inform you of our findings;
• Where we are at fault, try and put thing right to your satisfaction;
• If necessary, review our procedures or services to avoid the problem occurring again.

• Your inquiry will be promptly replied in 12 hours
• Well-trained and experienced staffs to answer your inquires in fluent English
• OEM&ODM available.any your customized lightings we can help you to design and put into product
• Protection of your sales area, ideas of design and all your private information
• Any defective products within warranty will get maintenance or replacement unconditionally

• Payments: T/T & Westtern Union, Paypal.Big order 30% in advance,small all in advance
• MOQ:10PCS
• Lead time: 3-5 workdays for sample, 7-15 workdays for bulk, according to your final quantities
• Arrival time: 5-7 work days
• Warranty time: 3 years, Within the warranty period,Toplight provides free repairing service
• If the certain item can't be repaired,we will offer the new one for replacement at no extra cost
