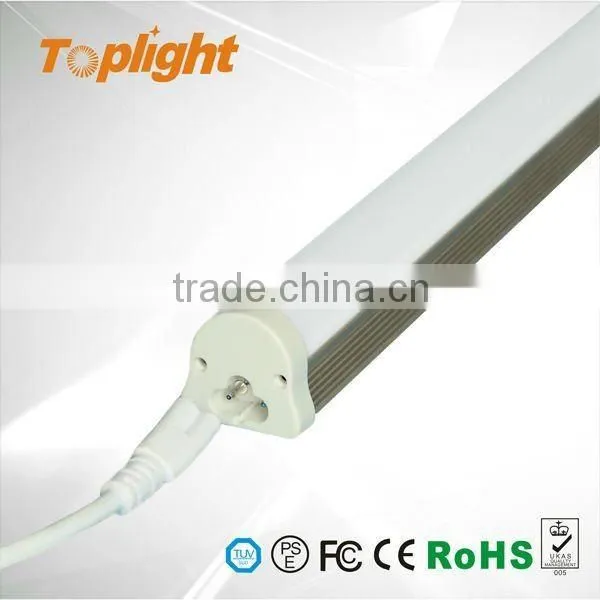

High Quality 0.6m Led t8 Integrated Lamp With Epistar Chip
US$ 10 - 12.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar smd5630
Warranty(Years):
3
Input Voltage(V):
100-265/85-277
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.6m Epistar/ Samsung High Cri Led t8 Integrated LampUS$ 11 - 14MOQ: 100 Pieces -
Warm White 25watt High Voltage 5ft t8 Unity Led Tube LightNegotiableMOQ: 25 Pieces
-
Best Quality Cool White 6500K Unity t8 Led Tube 1.5m, All in OneNegotiableMOQ: 25 Pieces
-
t8 Led Tube Integrated, 150cm, 25watt, Warm White, 100-265VACNegotiableMOQ: 25 Pieces
-
Pure White T8 Integrated LED Fluorescent Replacement Tube Light 110vNegotiableMOQ: 25 Pieces
LED Light Source
Epistar smd5630
Warranty(Years)
3
Input Voltage(V)
100-265/85-277
Lamp Power(W)
10
Lamp Luminous Flux(lm)
1250
Lamp Luminous Efficiency(lm/w)
120
Color Temperature(CCT)
Warm White
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
50000
Lamp Body Material
Other, Aluminum+PC
IP Rating
IP44
Certification
CE, FCC, PSE
Place of Origin
Guangdong, China
Brand Name
Toplight
Model Number
Other, TP-T8LAMP48-10W
high quality 0.6m led t8 integrated lamp with epistar chip
LED Tube integrated features:
1.The fixture and the lamp are unity,and no need the traditional fixture when installing.the install become easy.
2.No need to buy the fixture,and you will cut down the cost.

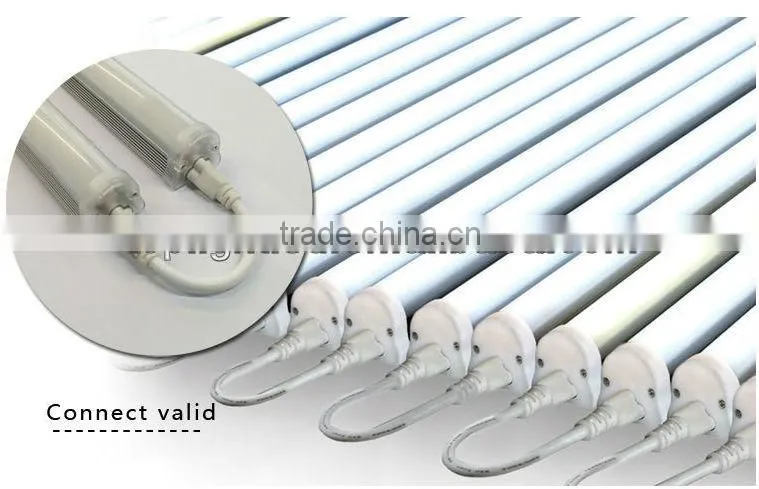

3.It can be connected one by one,it's good for parking,supermarket,gas station and so on.
4.Approved certifications: CE, FCC, ROHS, PSE
5.Very suitable for new installation project,directly to use once installing well,plug and play.
LED Tube integrated description:
| Model No. | TP-T8LAMP48-10W | TP-T8LAMP48-10W |
| LED Chips | Epistar smd5630 | Samsung smd5630 |
| Length | 600mm | 600mm |
| Actual length | 566±2mm | 566±2mm |
| CCT | 2700K-6500K | 2700K-6500K |
| Lumen | 1100-1250lm | 1000-1200lm |
| Voltage | 100-265VAC/85-277VAC | 100-265VAC/85-277VAC |
| Driver | non-isolated/isolated | non-isolated/isolated |
| CRI | >80Ra | >85Ra |
| PC Cover | Clear/frosted/stripe | Clear/frosted/stripe |
| Material | AL + PC | AL + PC |
| PF | >0.93 | >0.93 |
| Beam angle | 120degrees | 120degrees |
| accessories | clips,screw,connector | clips,screw,connector |
| Storage Temp | -20 to 50℃ | -20 to 50℃ |
| Lifespan | 50000hours | 50000hours |
Aging:
The Unity LED tube light's aging time is over 72hours, the LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Image description:
Installed images:
Application:
- Replacement for conventional fluorescent
- School /universities/Hospital
- Conference/meeting room show room
- Commercial complexes
- Factories/office
- Supper-markets
- Residential /institution buildings
Packaging & Shipping:
| Packing 1 |
Inner white box package Individually pack,Good for store retail,Avoid shaking,saving space |
| Packing 2 |
External carton packge Better protection once again,Make sure transportation safety |
| Shippment | by Express(DHL,UPS,FEDEX,EMS,TNT etc) ; by Air; By Sea etc. |
Our service:
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the world with speed and precision.
4.Offer customer the lowest price with high quality LED light.
5.Payments: T/T & Westtern Union, Paypal.Big order 30% in advance,small all in advance.
6.Lead time: 3-5 workdays for sample, 7-15 workdays for bulk, according to your final quantities
7.Arrival time: 5-7 work days
8.Warranty time: 3 years, Within the warranty period,Toplight provides free repairing service.
If the certain item can't be repaired,we will offer the new one for replacement at no extra cost.
Payment terms:
1.EXW Price
2.MOQ:100pcs(first time can order sample for quality test)
3.Lead time:3-7days for sample order,9-15days for bulk order
4.Payment: T/T,Paypal,WU 100% in advance
5.Shippment: DHL,UPS,FEDEX door to door service
6.CE RoHs FCC PSE certificates,3years warranty
If you are interested in it,please don't hesitate to contact us!!!
