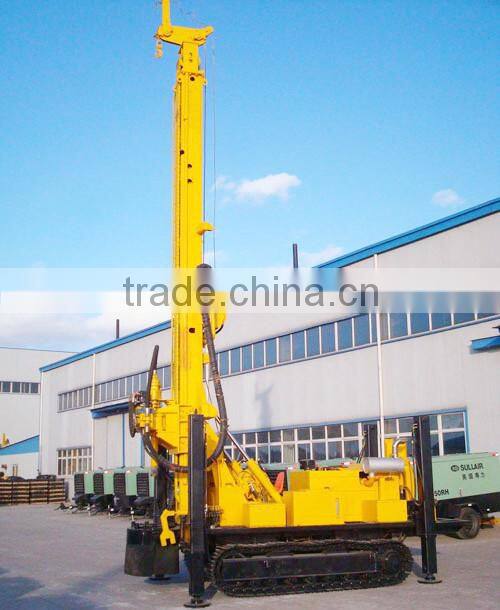

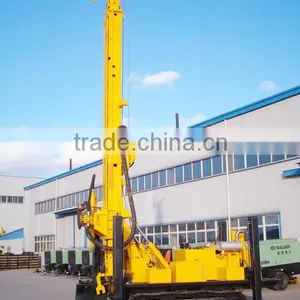

JS600 Track Mounted Water Well Drilling Rig
JS600 crawler mounted crawler drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Characteristics
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a Cummins engine,132kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140—Φ450 |
| 5 | Hole Depth | m | 600 |
| 6 | Rotation Torque | Nm | 6500 1st Gear |
| 13000 2nd Ger | |||
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger | |||
| 8 | Drill pipe diameter | mm | 89/102/114 |
| 9 | Drill pipe length | mm | 4000/4500 |
| 10 | Axial pressure | T | 10 |
| Winch | |||
| 11 | Max. Lifting force | T | 32 |
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 8 |
| Engine | |||
| 16 | Diesel Engine type | CUMMINS | |
| 17 | Rated Horse power | Kw | 132 |
| 18 | Electrical System | 24 | Volt |
| Compressor required | |||
| 19 | Compressor Type | Rotary Screw/Movable | |
| 20 | Pressure Required | Mpa | 1.05—6.9 |
| 21 | Air consumption | m³/min | 16—96 |
| Mud Pump(Optional) | |||
| 30 | Type | Hydrulic | |
| 31 | Model | BW450 | |
| 32 | Stroke | mm | 110 |
| 33 | Displacement | L/Min | 450 |
| 34 | Discharge pressure (Mpa) | Mpa | 2-3 |
| 35 | Suction tube diameter | mm | 89 |
| 36 | Discharge pipe diameter | mm | 51 |
| 37 | Liner Diameter | mm | 80 |
| Dimension | |||
| 38 | Net Weight | T | 15 |
| 39 | Shipping Length | mm | 8500 |
| 40 | Shipping Width | mm | 2300 |
| 41 | Shipping Height | mm | 3300 |
| 42 | Ground Clearance | mm | 300 |
Packaging & Shipping
Standard sea transportation package or packed as customer's requirement
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JCTECH” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
