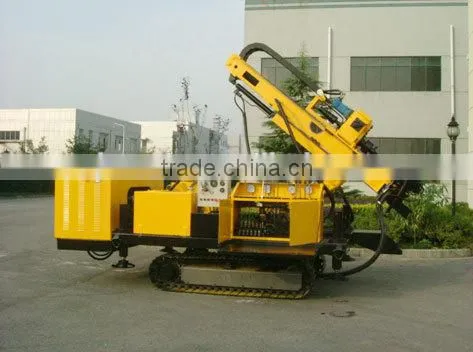

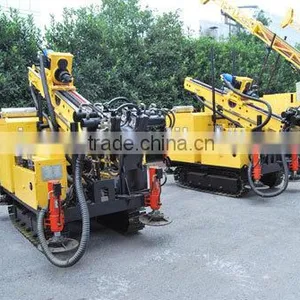

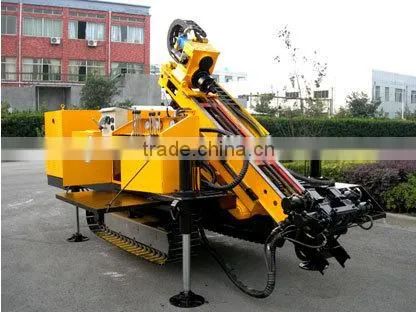

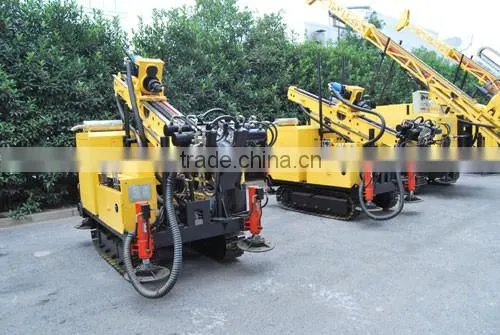

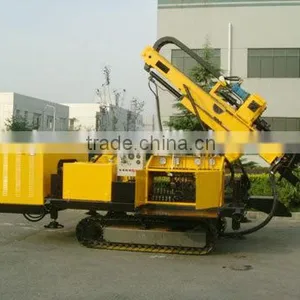

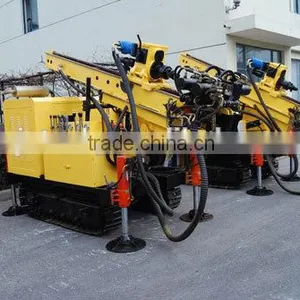

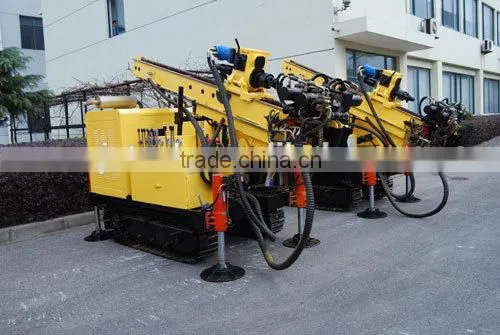

YGL-50 Mini Multifunctional Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole
Introduction
YGL-50(Q) drilling rig is a kind of full hydraulic power head (top drive) multifunctional crawler drilling rig. It can be applied in construction of big tonnage stress anchoring hole for hydro power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.
Features
1. The great rotary torque of the drilling rig makes the application wider, the borehole speed faster, the accident disposal capability better and drilling work efficiency higher.
2. Extension mechanism (Chinese patent number: ZL03222451.6) in the output spindle of top drive power head protects drilling tools effectively.
3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the strongpoint of the quickness, convenience, reliability, etc. of the gearshift.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5. The rig is crawler mounted, which makes the machine move easily.
6. Hydraulic elements are all selected from world famous brand products in order to achieve high reliability and performance stability.
7. It can be used by various drilling methods, such as:
Non-cycle liquid dry auger drill
DTH hammer drill in rock layer by air
Mud circulation drill in sand soil layer
DTH hammer with tube drill in broken rock area by air
Compact construction, small size and light weight make it available to use in narrow area.
8. YGL-50Q drill rig has a special drill arm which can be adjusted to have different height of level during the drill work.
Specification
1 |
Hole Depth (m) |
50 |
2 |
Hole Diameter(mm) |
130~200 |
3 |
rill rod specification(mm) |
89×1500,127×1500 |
4 |
Power Head Output Rotation Speed(rpm) |
40-98 rpm |
5 |
Power Head Max. Output Torque(Nm) |
2500NM |
6 |
ower Head Feeding Stroke (mm) |
1800mm |
7 |
Max. Power Head Lifting Capability (kN) |
30kN |
8 |
Max. Power Head Thrust Force (kN) |
15kN |
9 |
Mast Sliding Compensating Stroke(mm) |
500mm |
10 |
Climb Ability (°) |
20° |
11 |
Diesel engine power (kW) |
26 |
12 |
Overall dimension(transport state) (mm) |
3850×1450×2000 |
13 |
Weight (kg) |
2000 |
