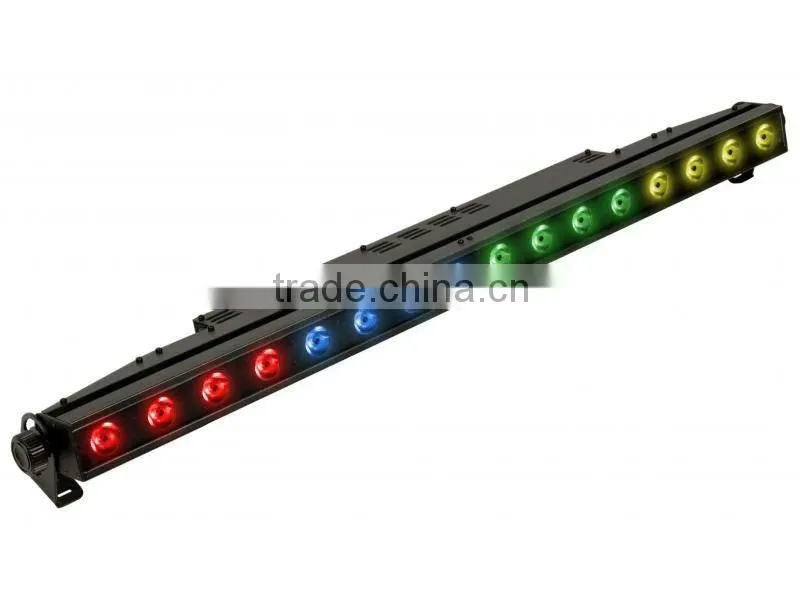

LED PIXEL BAR RGB 16pcs 3Watt Tri-color LEDs

Name: LED PIXEL BAR RGB 16pcs 3Watt Tri-color LEDs
Brand: BRITEQ
SKU: 114201965

US$ 20 - 100 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Belgium

Brand Name:

BRITEQ

Model Number:

LED PIXEL BAR RGB

Summitlite International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Belgium

Brand Name BRITEQ

Model Number LED PIXEL BAR RGB

Specifications

LED PIXEL BAR RGB.
Different preprogrammed shows: random, audio controlled, VU-meter, falling star, line chases, fading effects

BRITEQ multicolor effects LED PIXEL BAR RGB powerful LED PIXEL BAR

Description

Create stunning, multicolor effects with this powerful LED PIXEL BAR!
Equipped with 16pcs 3Watt tri-color LEDs
Each of the 16 pixels is fully controllable by DMX for endless possibilities!
Different preprogrammed shows: random, audio controlled, VU-meter, falling star, line chases, fading effects, …
Different operation modes:
- DMX 2ch Master/slave: choose from a selection of preprogrammed chases + speeds
- DMX 3ch: RGB control for all clusters together
- DMX 4ch: RGB control for all clusters together + master dim/strobe control (compatible LEDCON-2)
- DMX 5ch: RGB control for all clusters together + separate master dim/strobe controls
- DMX 6ch: RGB control for 2 sections of 8 clusters
- DMX 12ch: RGB control for 4 sections of 4 clusters
- DMX 24ch: RGB control for 8 sections of 2 clusters (compatible OC-1 matrix controller)
- DMX 48ch: RGB control for all 16 clusters individually
- DMX 50ch: RGB control for all 16 clusters individually + master strobe + master dimmer
- Standalone with optional hand controller
Narrow 25° beam angle for very focused beams
Very low power consumption, only 75W at full output (money saving!)
Comes with a bracket for easy truss mounting of 1 unit

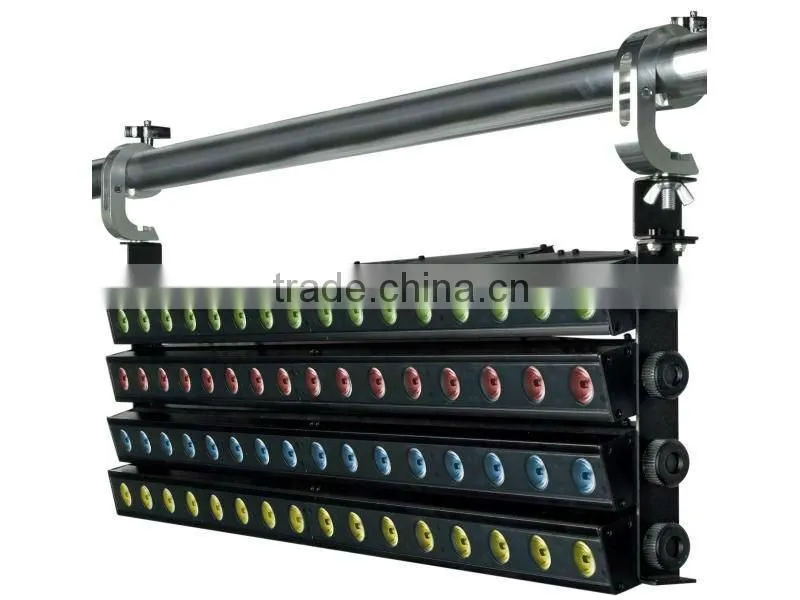

An optional “matrix-bracket" can be used to mount 4 units in a matrix setup
Easy software updates via special software upgrade unit
Alphanumeric LCD-display for easy menu navigation

Mains Input: AC 100 ~ 240V, 50/60Hz
Power consumption: 74 Watt max.
Power daisy chaining qty: +/- 10 units
Fuse: 250V 6,3A slow blow (20mm glass)
Sound Control: Internal microphone
DMX connections: 3pin male / female
DMX channels used: 1+3+4+5+6+12+24+48+50channels + 3 special: 2MSL + LC-1 + LC-2
Lamp: 16pcs 3W Tri-color LED-cluster
Weight: 6,4kg
