Durable service good price cnc industrial wire mesh making machine
Description of cnc industrial wire mesh making machine:
Reducer of the machine applies 8-module herringbone gear and the gear of inlet box is 10-module with speed ratio of 1:1. Materia for axis of high-speed gear is high frequency quenching 40Cr. Tower wheel can be made from common cast steel #55, common cast steel 55# with high-frequency quenching, and common cast steel #55 painted by tungsten carbide according to customers' demand.Transmission bearings are all famous products. Charging system applied sectional coupling that obtain proper bearing of the axis. Reducer , wet box and charing box are on the same base for easy installation and lifting. The surface painting ia of high grade and both internal and external of electric-control cabinet applies plastic-spraying process. It is divided into commom control and variablr-frequency control. Electric parts are all Chinese or international famous brands.
Heavy wet drawing machine is one of our products with more than 20% market share of China and 50% market share of key districts.
parameters of cnc industrial wire mesh making machine:
Items
Unit
LT8/650
LT11/650
LT15/650-560
LT11/450
LT15/450
Capstan diameter
mm
650
650
650-560
450
450
Max inlet diameter
mm
Φ8-Φ6.5
Φ8-Φ6.5
Φ6.5-Φ5.5
Φ4.5
Φ4.5
Min outlet diameter
mm
Φ3.7-Φ3.0
Φ2.7-Φ2.2
Φ1.6-Φ1.4
Φ1.7
Φ1.2
Inlet tensile strength
Mpa
≤1150
≤1150
≤1150
≤1150
≤1150
Drawing speed
m/min
200
250
280
260
300
Drawing dies
time
8
11
15
11
15
Total compression rate
%
78.7
88.54
93.94
85.73
92.89
Average compression rate
%
17.58
17.88
17.05
16.22
16.16
Motor power
Kw
160-132
160-132
132-110
90
75
Dimension
mm
5800*2350*1800
5500*2200*1600
Weight
T
11
9.5

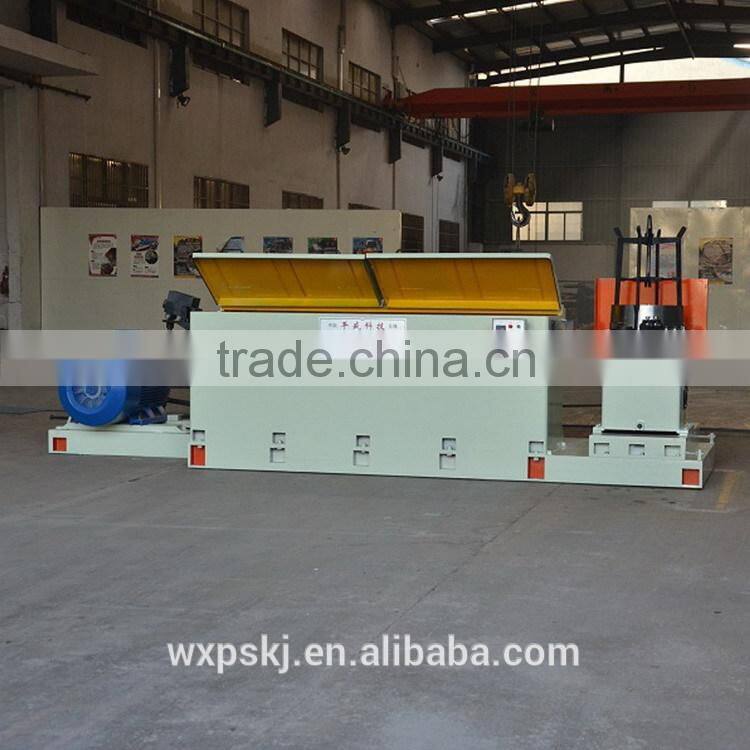

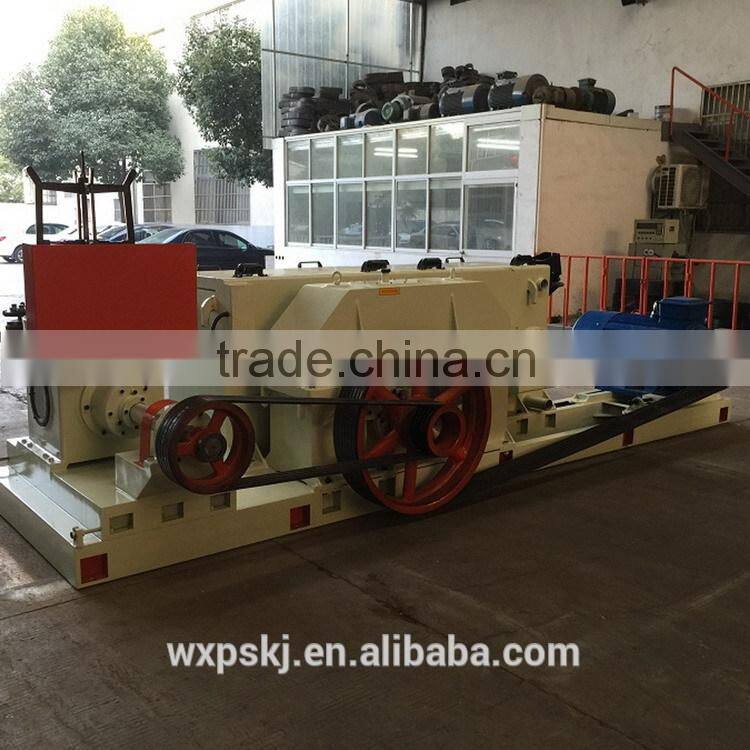

Pictures of cnc industrial wire mesh making machine:
Company Information:
1. We have gotten ISO9001:2008 standard and certificate
2. Company established year: 1985
3. Company location: Wuxi city, 125km away from Shanghai
4. FOB port: Shanghai
5. Business type: Manufacturer
6. Number of employees: 100-200
7. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi
Our services:
1. We are always providing customers with not only the excellent solutions of steel wire production line, best related equipment and perfect services but also free technical services on the steel wire production line.
2. If you have any questions in the process of producing steel wire, or about steel wire production line, please feel free to contact us any time. Our solutions and quotation will be sent to you soon to meet you special requirements.
3. Welcome to visit our factory and Wire drawing production lines.
--------------------------------------------------------------------------
Successful experience / Markets:
Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.
