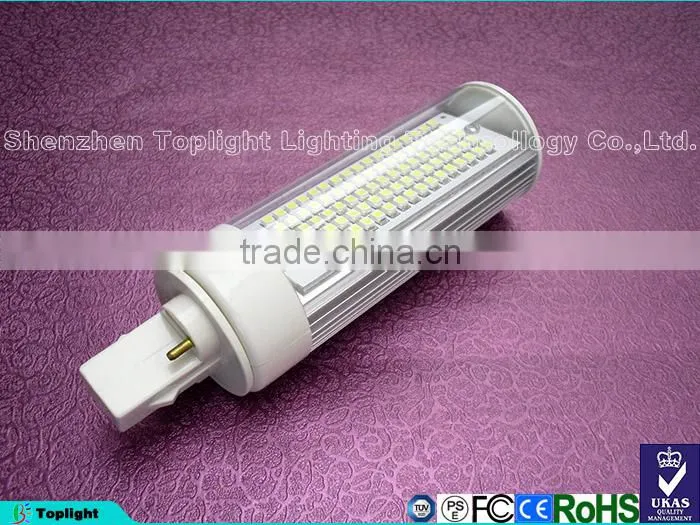

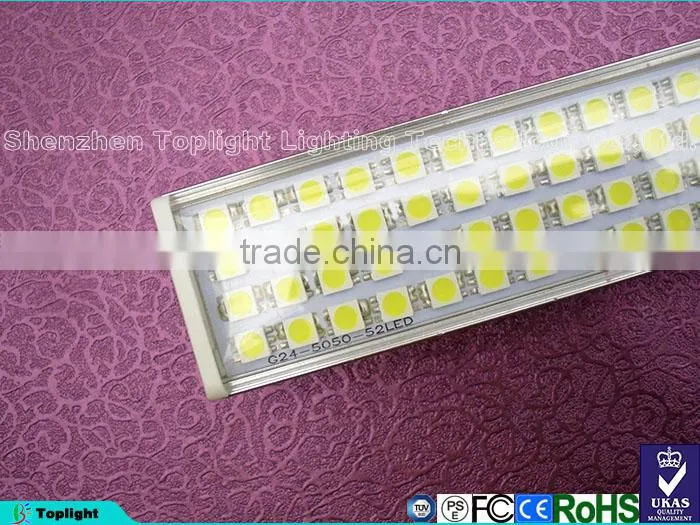

Rotating Led PL Light G24/G23/E27

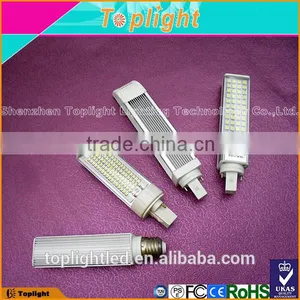

Rotating Led PL Light G24/G23/E27 thumbnail-1
Rotating Led PL Light G24/G23/E27 thumbnail-2
Rotating Led PL Light G24/G23/E27 thumbnail-3

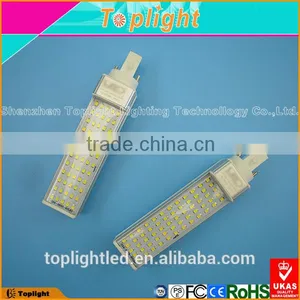

Rotating Led PL Light G24/G23/E27 thumbnail-4
Rotating Led PL Light G24/G23/E27 thumbnail-5
Rotating Led PL Light G24/G23/E27 thumbnail-6
Rotating Led PL Light G24/G23/E27 photo-1
Rotating Led PL Light G24/G23/E27 photo-2

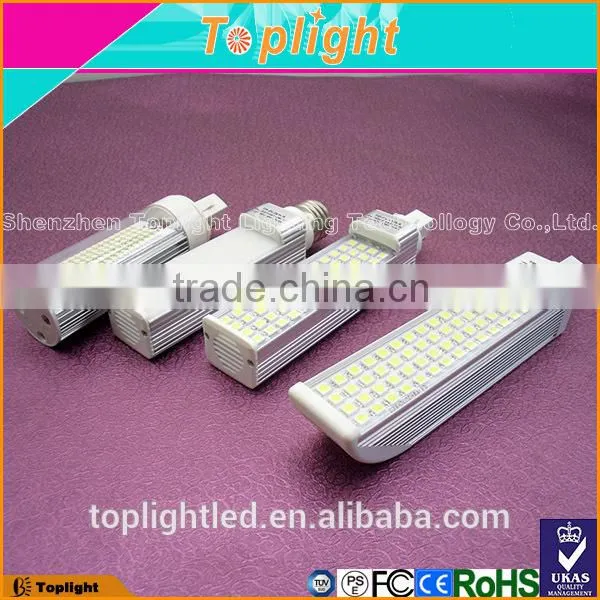

Rotating Led PL Light G24/G23/E27 photo-3
Rotating Led PL Light G24/G23/E27 photo-4

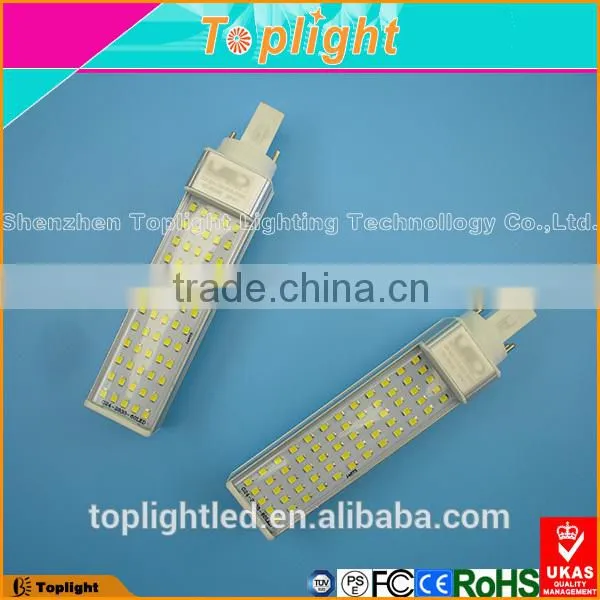

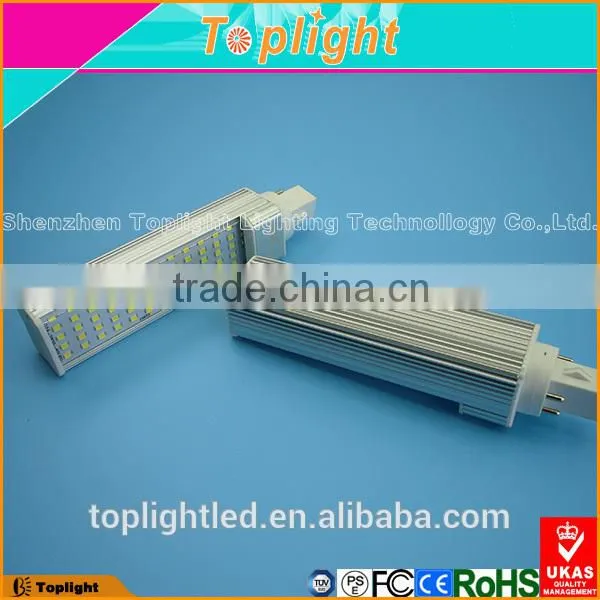

Rotating Led PL Light G24/G23/E27 photo-5

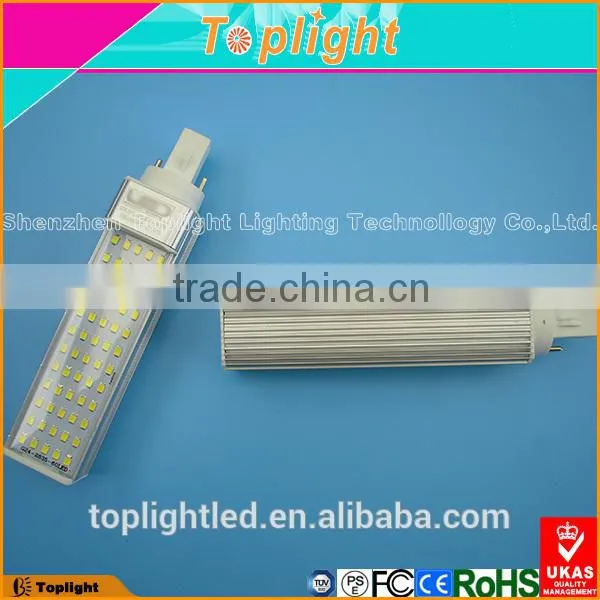

Rotating Led PL Light G24/G23/E27 photo-6
US$ 0.01 - 9 MOQ: 30 Pieces
Key Specifications
Get Latest Price
LED Light Source:
5050
Type:
Other, LED Plug Light
Input Voltage(V):
85-265VAC
Contact Supplier Request Quote Chat Now
Shenzhen Toplight Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050
Type Other, LED Plug Light
Input Voltage(V) 85-265VAC
Lamp Power(W) 7
Lamp Luminous Flux(lm) 550
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, Cool white, Natural white, Warm white
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification CE, FCC, PSE, UL
Base Type Other, G23/G24/E26/E27/B22
Place of Origin Guangdong, China
Brand Name Toplight
Model Number TP-PL07WA

Rotating led PL Light G24/G23/E27

Product Description

(1)LED PL light electrical parameter

 Lamp Size

(mm)

Model No.

LED Quantity

(pcs)

Luminous Flux

(lm)

Socket

124mm

TP-PL07WA

35PCS

550Lm

G23/G24/E26/E27/B22

(2)LED PL light Basic parameter

Power

7W

LED Quantity

35pcs 5050 LED

Input voltage

85-277VAC

Beam Angle

120degree

Power Factor

>0.85

Power Efficiency

>92%

Material

AL+PC

(3)PC and color temperature

Color Temperature

Warm White(2700-3500K)

Natural White(6 4000-5000K)

Cool White(6000-6500K)

Tube PC

Clear PC

Frosted PC

Package detail

Tube Length

Model No.

Net Weight

Packing Size

Carton Quantity

124mm

TP-PL07WA

0.12kg

165*37*37mm

1pcs/box

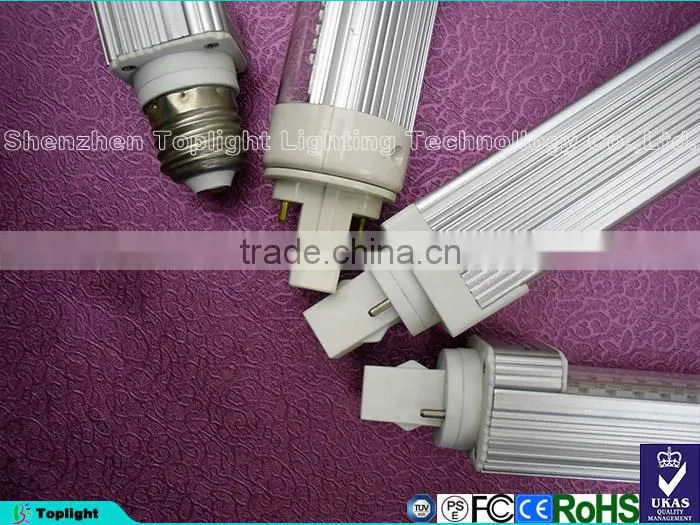

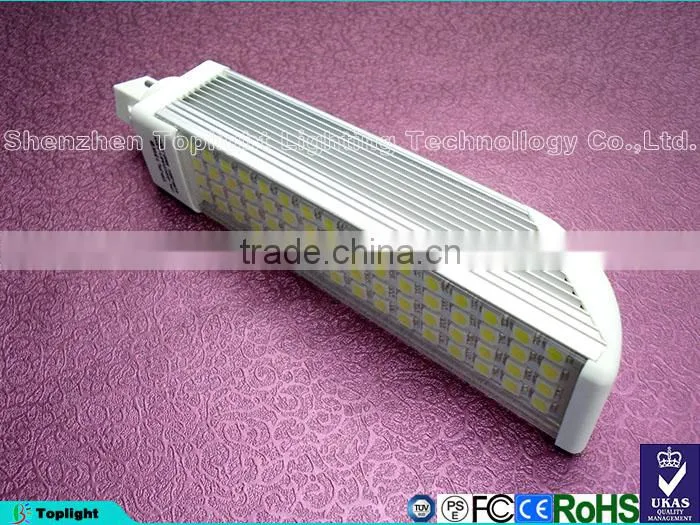

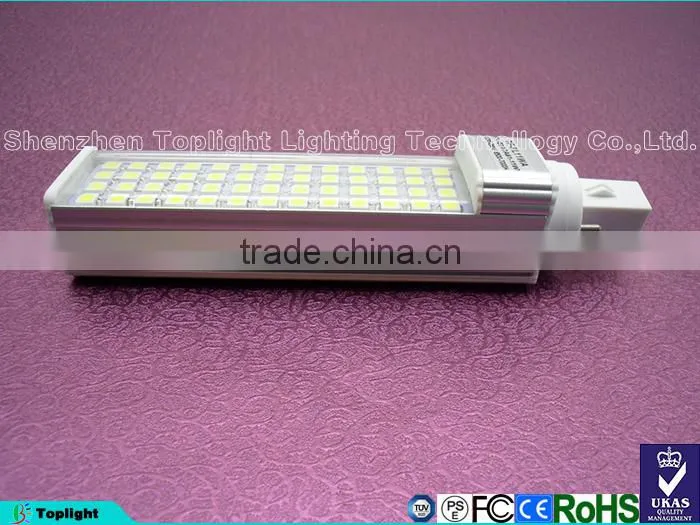

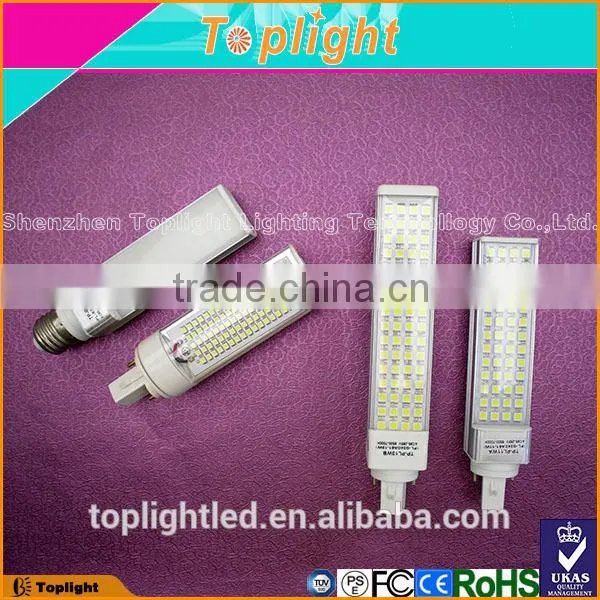

Plug PL led lights product showRotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27

PL Plug led light Structure installation

LED plug light could be installed on the G23/G24/E26/E27/B22 lamp base, pls take down the starter before installing.

Kindly Notice: before installing, please make sure the power source is off!

Rotating led PL Light G24/G23/E27

PL Plug Advantages of plug in our LED lights

1).Both Utility model patent and renewed design patent
2).Top quality drivers:PFC>0.91, Harmonic wave<9%, ripple wave<9%
3).Higher lumen compared to similar models of others
4).Driver box:drivers are seperated from heat sink, remarkably increasing lifespan
5).View angle:120 °&360°
6).Wide base range options:G23/GX23(2 pin), G24D(2 pin), G24Q/GX24Q(4 pin)
7).High end Osram & Edison chips with LM80 report
8).UL/cUL/CE ROHS listed

Rotating led PL Light G24/G23/E27

Plug PL led light Features of plug in LED lights

1).Operating temperature range:from-25 to 45 Celsius deg
2).Reduce energy costs up to 90% compared to traditional lamps,reduce maintenance costs up to 90%, almost free of maintenance
3).Heat and Shock Resistant ,no shadow and shatter-resistant
4).Lightweight with small design, ideal for indoor use, very easy for replacement
5).Does not produce UV rays that harm people’s eyes.
6).Directional light means no light pollution,dark sky compliance.
7).Free of charges on shipping back and forward of defective products

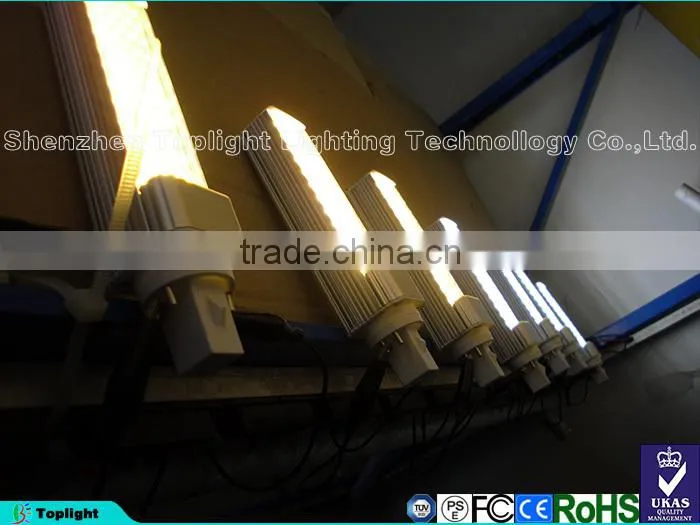

Plug PL led light Aging test

LED plug light’s aging time is over 72hours, LED plug lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.Rotating led PL Light G24/G23/E27

PLUG PL led light Application

Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.

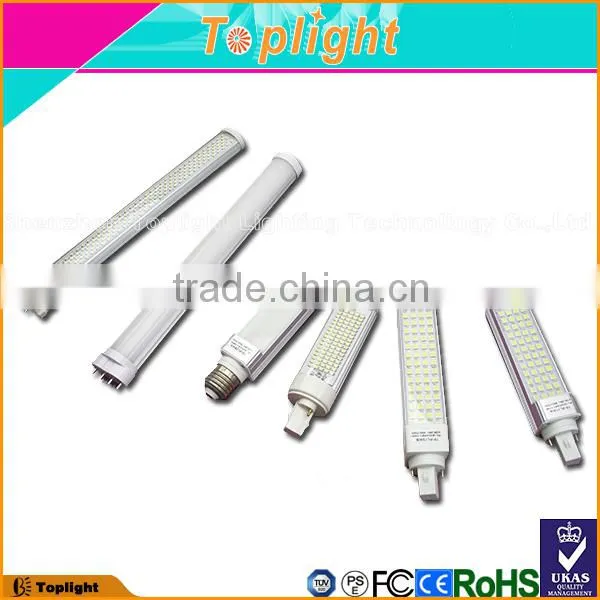

Types of Plug Pl led lights

Model No TP-PL05WA TP-PL07WA TP-PL08WA TP-PL09WA TP-PL10WA TP-PL11WA TP-PL12WA TP-PL13WA
Power 5W 7W 8W 9W 10W 11W 12W 13W
Input Voltage 90 to 260V ACSafely Isolated Driver
Alternating current 0.05A/100V 0.024A/220V 0.073A/100V 0.034A/220V 0.083A/100V 0.038A/220V 0.091A/100V 0.041A/220V 0.108A/100V 0.048A/220V 0.107A/100V 0.05A/220V 0.131A/100V 0.059A/220V 0.132A/100V 0.06A/220V
Hz 67-43
Typ. 80%-85%
Power factor 0.995/100V 0.966/220V

0.993/100V

0.973/220V

 0.992/100V 0.972/220V 0.995/100V 0.978/220V 0.991/100V 0.977/220V 0.995/100V 0.985/220V 0.995/100V 0.982/220V 0.996/100V 0.989/220V
Driver type safety isolation/built-in
IP Code IP30
Work Temperature -40--+80℃
Material Alu6063 and PC
Product finishing Anodic oxidation sandblast the silver
Led moder SMD 2835
LEDquantity 25PCS 35PCS 40PCS 44PCS 50PCS 52PCS 60PCS  64PCS
Color rendering index Ra>70 or Ra>80
LED colors Cool white/6000-6500K,Natural white/ 4000-5000K,Warm white/ 2700-3500K
Beam angle >120 degrees
Single Package Size  148*37*37  165*37*37  165*37*37  165*37*37  165*37*37  165*37*37  165*37*37 202*37*37
Single Pacakge G.W. 0.12KG 0.13KG 0.14KG 0.14KG 0.15KG 0.16KG 0.17KG 0.19KG
Packaging & Shipping

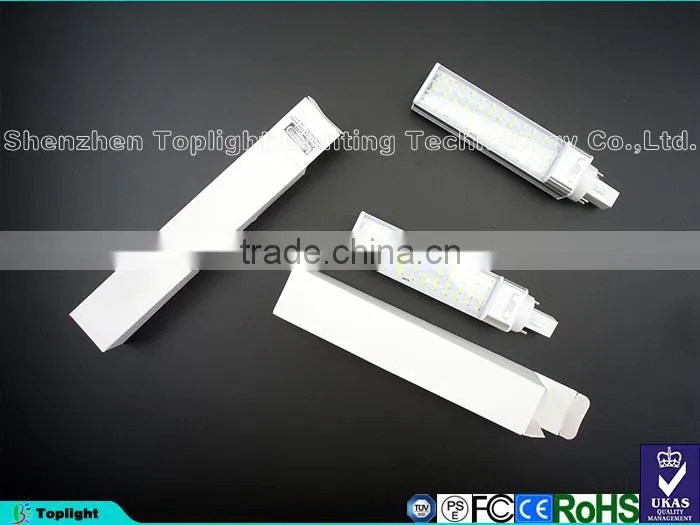

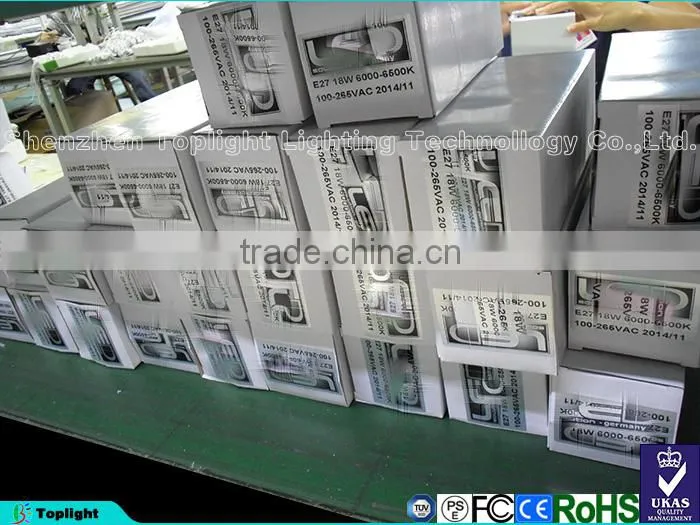

Plug led lights packingRotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27

Rotating led PL Light G24/G23/E27

Our Services
Quality Control After Sale Service

Each three workers with one QC to guarantee.

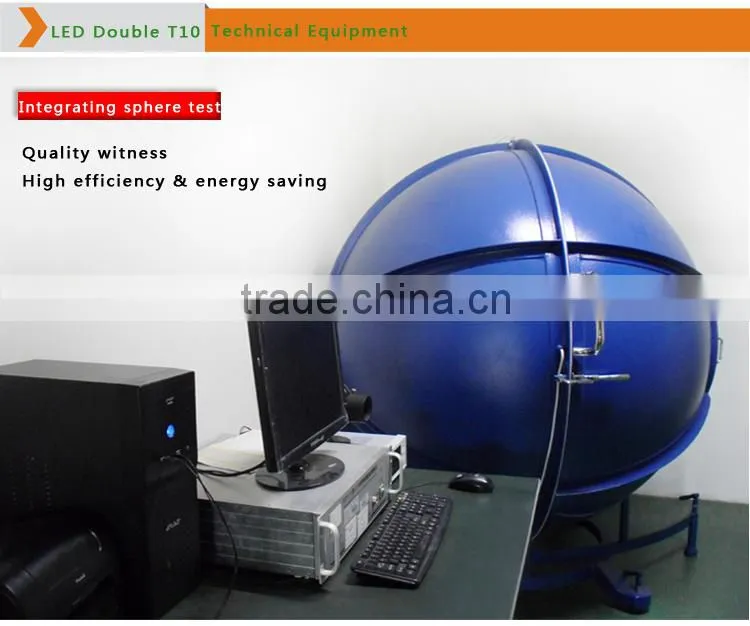

Inspection Of Finish LED Light

 Professional technical guidance
Free Repair Service Policy
Quick Response to complaint
  • Load test(Electrical spec. test)
  • Aging test
  • High-voltage test
  • Grounding conduction test
  • Install test
  • Adhesion test
  • Investigate your complaint;
  • Inform you of our findings;
  • Where we are at fault, try and put thing right to your satisfaction;
  • If necessary, review our procedures or services to avoid the problem occurring again.
Our Services
  • Your inquiry will be promptly replied in 12 hours
  • Well-trained and experienced staffs to answer your inquires in fluent English
  • OEM&ODM available.any your customized lightings we can help you to design and put into product
  • Protection of your sales area, ideas of design and all your private information
  • Any defective products within warranty will get maintenance or replacement unconditionally
  • MOQ:10PCS
Payment terms
  • Payments: T/T & Westtern Union, Paypal.Big order 30% in advance,small all in advance
  • Lead time: 3-5 workdays for sample, 7-15 workdays for bulk, according to your final quantities
  • Arrival time: 5-7 work days
  • Warranty time: 3 years, Within the warranty period,Toplight provides free repairing service
  • If the certain item can't be repaired,we will offer the new one for replacement at no extra cost



Company Information



Company information

We are professional LED manufacturer. All our LED products are exported to Euro and North American market with CE and ROHS.
Reasons to choose and rely on KAISTAR:
1. Quality assurance system based on ISO9001 standard;
2. Rich experience and strong capacity in manufacturing OEM products according to customers' specific requirements;
3. A strong R&D team with commitment to new product development and technology advancement, which keeps us ahead of the competition in the industry;
4. Competitive price resulting from large production volume and vertically integrated production structure.Rotating led PL Light G24/G23/E27Rotating led PL Light G24/G23/E27After Sale Service

Professional technical guidance
Free Repair Service Policy
Quick Response to complaint

  • Investigate your complaint;
  • Inform you of our findings;
  • Where we are at fault, try and put thing right to your satisfaction;
  • If necessary, review our procedures or services to avoid the problem occurring again.

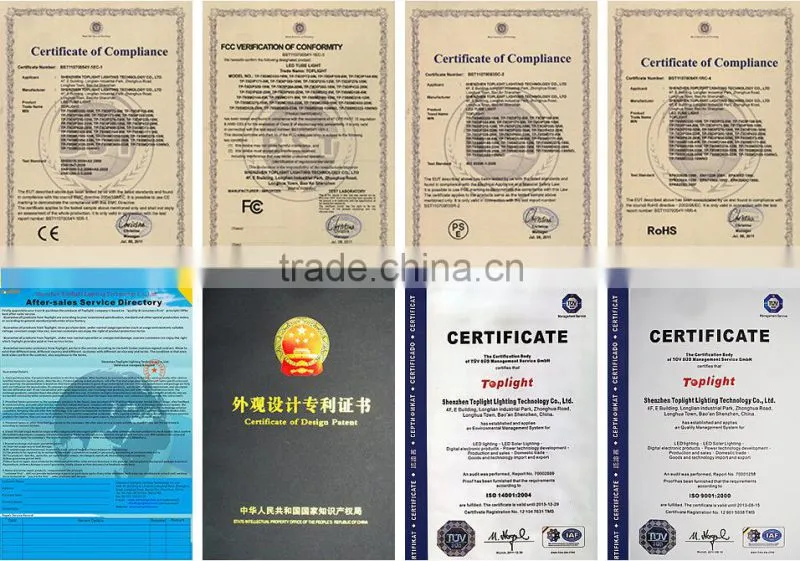

Certification

Rotating led PL Light G24/G23/E27

FAQ



FAQ

Q:What is your main product line is made?

  • We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and outdoor lighting. But led tube,led downlight,led panel light,led high bay, are our main products line.

Q:Your factory or trading company?

  • We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate

Q:You have the ability to do independent research and development?

  • Our engineering department has 4-5 people, we have the research and development capabilities. We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches

Q:Is there cheap shipping cost to import to our country?

  • For small order,express will be best.And for bulk order,sea ship way is best but take much time;For urgent orders,we suggest via air to airport.
