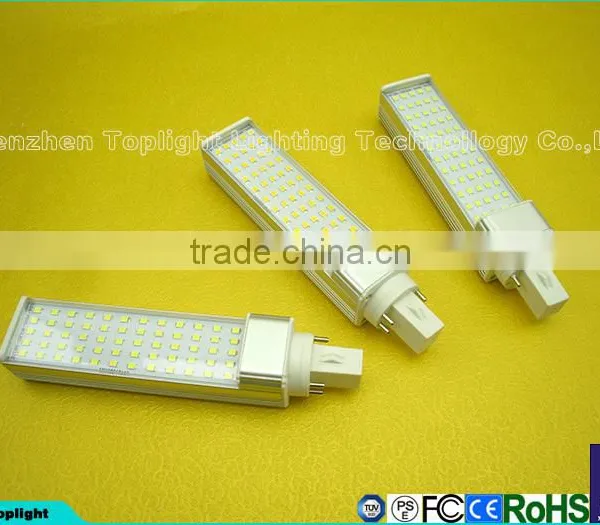

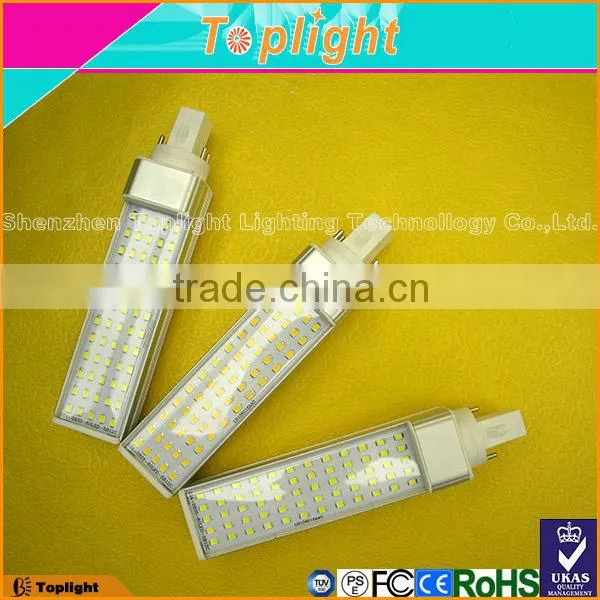

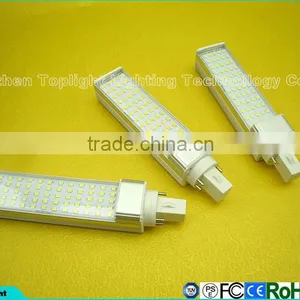

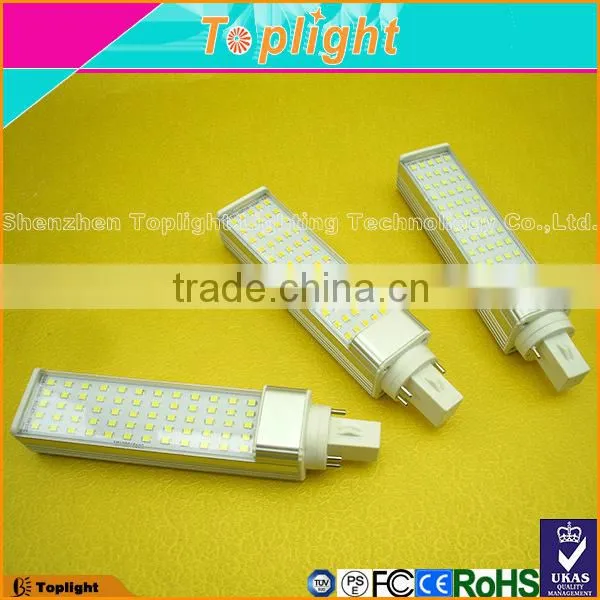

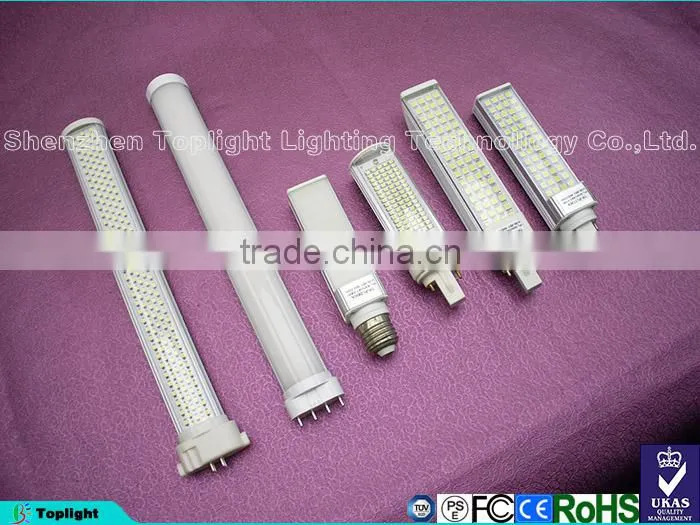

factory 2700K good quality 12w g23 led pl lamp
Description:
Product Type: 12W LED Plug Light
Place of origin: China
Brand Name: Toplight
Model No.: TP-PL012WA
FOB Port: Shenzhen port
Minimum Order: 30pieces
Payment Term: T/T or Paypal or WU
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample; 10-20days for bulk
Product Advantages:
1. It can replace the traditional lamp with nice appearance.

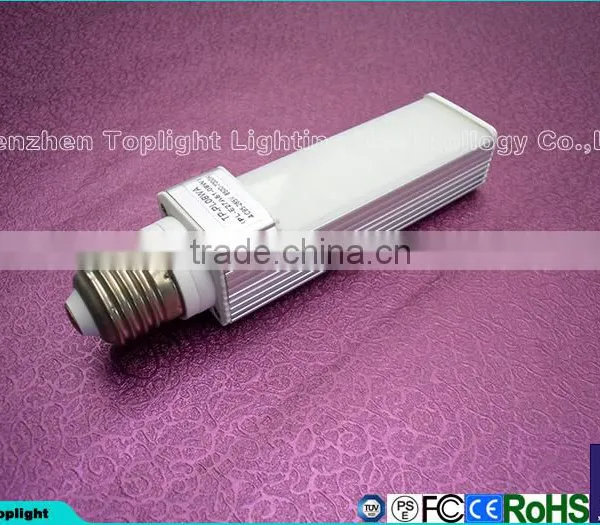

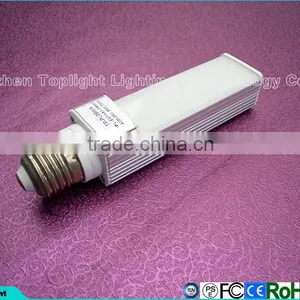

2. The plug of the light is G23/G24/E26/E27/B22
3. The products adopt the connection of AL and PC with inner driver and Aluminum PCB; it is better for heat sink.
parameters:
|
Lamp Size (mm) |
Model No. |
LED Quantity (pcs) |
Luminous Flux (lm) |
Socket |
164mm |
TP-PL12WA |
60PCS |
850-940Lm |
G23/G24/E26/E27/B22 |
Power |
12W |
LED Quantity |

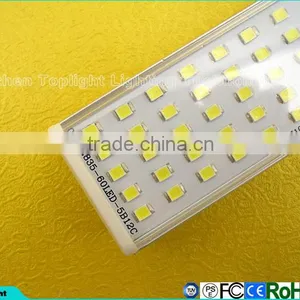

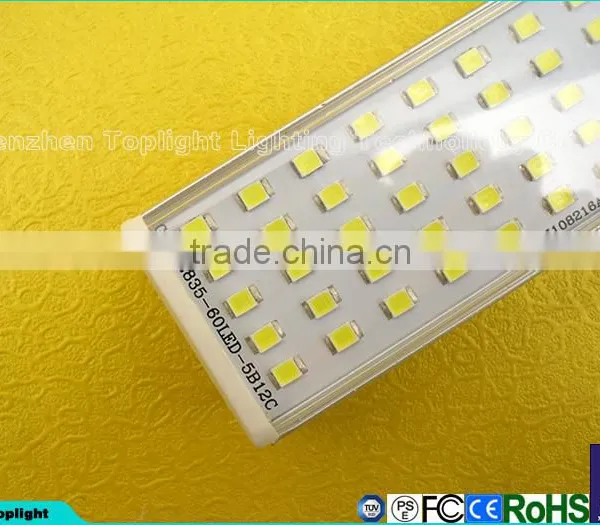

60pcs 2835 LED |
Input voltage |
90-260VAC |
Beam Angle |
120degree |
Power Factor |
>0.85 |
Power Efficiency |
>92% |
Material |
AL+PC |
Color Temperature |
Warm White(2700-3500K) |
Natural White(4000-5000K) | |
Cool White(6000-6500K) | |
Tube PC |
Clear PC |
Frosted PC |
Size chart:
| Power | A | B | C |
| 5 W | 124mm | 88mm | 28mm |
| 7 W | 124mm | 88mm | 28mm |
| 8 W | 147mm | 111mm | 28mm |
| 9 W | 147mm | 111mm | 28mm |
| 10 W | 152mm | 116mm | 28mm |
| 11 W | 164mm | 128mm | 28mm |
| 12 W | 164mm | 128mm | 28mm |
| 13 W | 192mm | 156mm | 28mm |
Socket chart
Structure installation:
12W LED plug light could be installed on the G23/G24/E26/E27/B22 lamp base, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!
Aging test:
LED plug light’s aging time is over 72hours, LED plug lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Package detail:
Tube Length |
Model No. |
Net Weight |
Packing Size |
Carton Quantity |
164mm |
TP-PL12WA |
0.25kg |
165*37*37mm |
1pcs/box |
Application:
Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.
