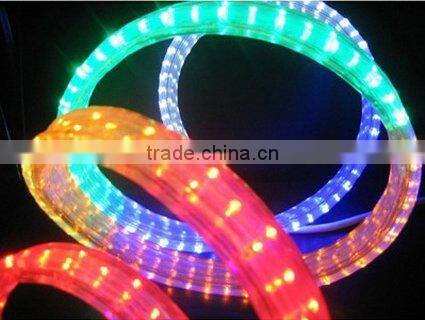

Help CenterProfessional LED Neon Flexible Strip SLN0050
Related Products
-
Color Jacketed LED Neon Flex Light SLN0050 SeriesUS$ 900 - 1,200MOQ: 2 Packs -
Mini LED Neon Flex Light SLN6050US$ 1,600 - 2,500MOQ: 2 Packs
-
Mini LED Rope Light SLN6050US$ 1,600 - 2,500MOQ: 2 Packs
-
Flexible LED Neon Rope Light SLN5050US$ 1,600 - 2,500MOQ: 2 Packs
-
Single Color LED Neon Flexible Strip Lighting SLN5050US$ 932 - 1,200MOQ: 2 Packs
Specifications
Profesional LED Neon Flex Strip, ,R,G,B,Y,O,W, all color, Super High brightness LED Chip insideChina direct supplier
Type1 Professional Version LED Neon Flexible Stripe
Features and Benefits
* Consistent and Stringent Wavelength control standards +/-5nm
* New Ultrabright LEDs
* Flexible
* Unique PVC single jacket design
* 100% unbreakable & waterproof
* Low Voltage, low Heat, Safety
* Extra Long Life
* Easy to Install
* Low Maintenance Costs
* Very low energy consumption
LED Neon Flex professional
LED Neon Flex professional is important stuff to achieve an extreme high lumens efficacy. LED Neon Flex professionals increased lumens stemmed from the application of high quality, high brightness LEDs coupled with an enhanced PVC mixture used in the main housing extrusion process. This optical gain enhancing PVC increases homogenization of the light effect which translates the maximum amount of lumens consistently delivered to the surface of the Neon-Flex professional. Take white color of LED Neon Flex professional for example, it can achieve a lumens efficacy of 36.1Lm/W and 63Lm/Ft. LED Neon Flex Professional assuredly will expand the proliferation of Summits LED Neon-Flex as a direct replacement to traditional glass Neon.
LED Neon Flex professional is only a bit higher in price, but it has better brightness to meet high luminous flux requirements for specific market. It is available in Red, Yellow, Blue, Green, White color. Please contact us for details.
1. Milky cover
2. SLED Professional version (SLN00XX-III) is with the highest brightness so far you can see in LED Chip market! And it keeps improving by development LED technology.
3. SLED General version (SLN00XX-II) is powered by General grade application for such as signs and background but in not high request on illuminations!
4. SLED economical version (SLN00XX-I) is special design for those limited budget on signs and designs but with similar effect up to glass neon flex.
5. Voltage range 24V 120V, 240V.
6. LED Spacing: 0.5" or 1.27cm.
7. Package: By rolls. But the real length depends on the integer multiple unit length.
8. Color, R, G, B, O, Y, W.
9. Cross section: 27.5*14.5mm
10. Color Temperature:
W: 5000K ~6000K
WW (warm white): 2200K~3000K
Item name rule:
We have an easy way to get our item code.
For example, the general Version neon flex strip SLN0050-II, the last two number means length per roll.
Suffix -color and - voltage like SLN0050-III-W-110V or SLN0010-III-G-24V
Rome number (-I, -II,-III) is for LED grade the bigger number the more brightness. We use Economical and General and Professional as our classification
Technical Spec:
SLN0010-III/SLN0050-III
Length in roll
240V
10m R, Y, O: 6 units B, G, W, WW (warm white): 10 units
50m R, Y, O: 32 units B, G, W, WW (warm white): 54units
120V
10m R, Y, O: 12units B, G, W, WW (warm white): 20 units
50m R, Y, O: 64 units B, G, W, WW (warm white): 108units
24V
10m R, Y, O: 90units B, G, W, WW (warm white): 130 units
50m R, Y, O: 450 units B, G, W, WW (warm white): 650units
LED Qty /unit
240V R, Y, O: 120PCS B, G, W, WW (warm white): 72PCS
120V R, Y, O: 60PCS B, G, W, WW (warm white): 36PCS
24V R, Y, O: 8PCS B, G, W, WW (warm white): 6PCS
Cut unit length:
240V R, Y, O: 1.52m B, G, W, WW (warm white): 0.91m
120V R, Y, O: 0.762m B, G, W, WW (warm white): 0.457m
24V R, Y, O: 0.102m B, G, W, WW (warm white): 0.076m
Power Consumption:
240V R, Y, O: 3.94W/m B, G, W, WW (warm white): 5.25W/m
120V R, Y, O: 3.94W/m B, G, W, WW (warm white): 5.25W/m
24V R, Y, O: 3.94W/m B, G, W, WW (warm white): 5.25W/m
Max loading by 1.6A convertor
240V R, Y, O: 97m B, G, W, WW (warm white): 73 m
120V R, Y, O: 49m B, G, W, WW (warm white): 36m
24V R, Y, O: 6.4m B, G, W, WW (warm white): 6.0m
Light Output
Color Red Y/Orange Green Blue White
Total output (Lm/Ft) 25.6 24.1 9.2 37.5 63
Recommended operating temperature and humidity: -20°C to 60°C, 100% humidity
Accessories::
Plastic clip,
Channels: PC channel 2 m or mini Channel 5cm, Aluminum channel,
Front connector: Plug + power code + Transformer+ AC/DC convertor +front connector + male pin+shrink tube
Splice connector: male pin + shrink tube
Middle connector 2 female connector + 2 male pin + costumed cable
End connector: end cap
Glue
