Specifications

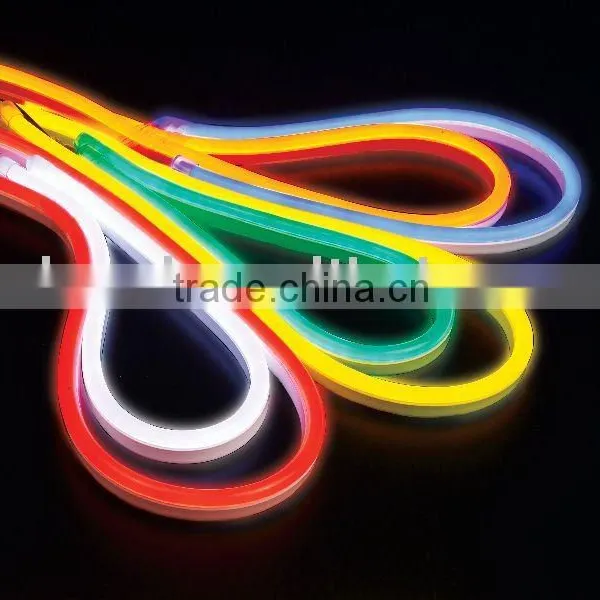

Mini LED Neon Flex , Flexible as you wishes for signs and DIY,R,G,B,Y,O,W, all color, High brightness LED Chip insideMini neon flex stripe
Item name#: SLN6050-R- 240V or SLN6050-Y-240V, etc.
Last two numbers 50 means 50M per roll, 10m can be chooseable
And add suffix - color and suffix -voltage (240V, 220V, 120V, 110V 24V,)
Type 6 (Mini type)
Technical info:
*. Color cover jacket (for professional signs, and DIY)
*. SLED General Version (SLF60XX) is powered by General grade application for such as signs and back group but in no high request on illuminations!
*. Voltage range: 24V 120V, 240V.
* .LED Spacing: 0.5" or 1.27cm.
*. Package: By rolls. But the real length depends on the integer multiple unit length.
*. Color: R, G, B, O, Y, W.
* Cross section: 24*11mm
* Cut unit length:
240V R, Y, O 1.52m; G, B, W: 0.91m
120V R, Y, O 0.762m; G, B, W: 0.457m
24V R, Y, O 0.102m; G, B, W: 0.076m
* LED Qty per Unit
240V R, Y, O 120PCS; G, B, W: 72PCS
120V R, Y, O 60PCS; G, B, W: 36PCS
24V R, Y, O 8PCS; G, B, W: 6PCS
* Power Consumption:
240V Y, O 3.15W/m; R, G, and B, W: 3.94W/m
120V Y, O 3.15W/m R, G, and B, W: 3.94W/m
24V Y, O 4.72W/m R, G, and B, W: 5.90W/m
*LED Qty per roll: 5040 PCS for all
* Package: 50M per roll. The real length is depends on the integer multiple unit length.
* Max load by 1.6A convertor:
240V Y, O 122 m R, G, B, W 97m
120V Y, O 61 m R, G, B, W 49m
24V Y, O 7.9m R, G, B, W 6.4 m
