Home > Lights & Lighting > LED Interior Lighting > LED Tube > High Quality 8" t9 Circline Led Tube 11w
High Quality 8" t9 Circline Led Tube 11w
US$ 9.5 - 13.5
MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
85-277
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Lumen 205mm LED Circline 80Ra 10W LED Round Tube T9US$ 9.8 - 15.8MOQ: 10 Pieces -
Hot Selling 300mm 18w Circular t9 Led Tube Light With CE ROHSNegotiableMOQ: 50 Pieces
-
Diameter 205mm 11w Circular LED T9 Tube Light CE, ROHS Ring TubeNegotiableMOQ: 50 Pieces
-
T9 12w G10q Led Circular Tube Replacement 2g13 LampNegotiableMOQ: 10 Pieces
-
2800-7000K Diameter 205/225/300mm G10q Tube Suspended Circular LedUS$ 13 - 15MOQ: 2 Pieces
LED Light Source
SMD2835
Warranty(Years)
3
Input Voltage(V)
85-277
Lamp Power(W)
11
Lamp Luminous Flux(lm)
1130
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Warm White
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
50000
Lamp Body Material
Other, Aluminum+PC
IP Rating
IP44
Certification
CE, PSE
Place of Origin
Guangdong, China
Brand Name
Toplight
Model Number
Other, TP-G10SMD205-20
High quality 8" t9 circline led tube 11w
- High Brightness, premium quality LED
- Cool White LED Light colour
- 80% Energy Saving light tubes
- Brand new LED technology
- 50,000 hour tube life

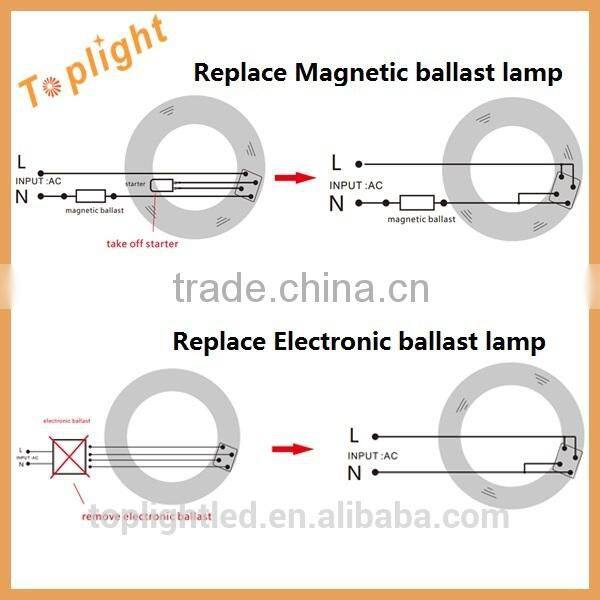

- Circline LED Tubes work without starter and electronic ballast
- No Mercury and other Hazardous Materials
Advantages:

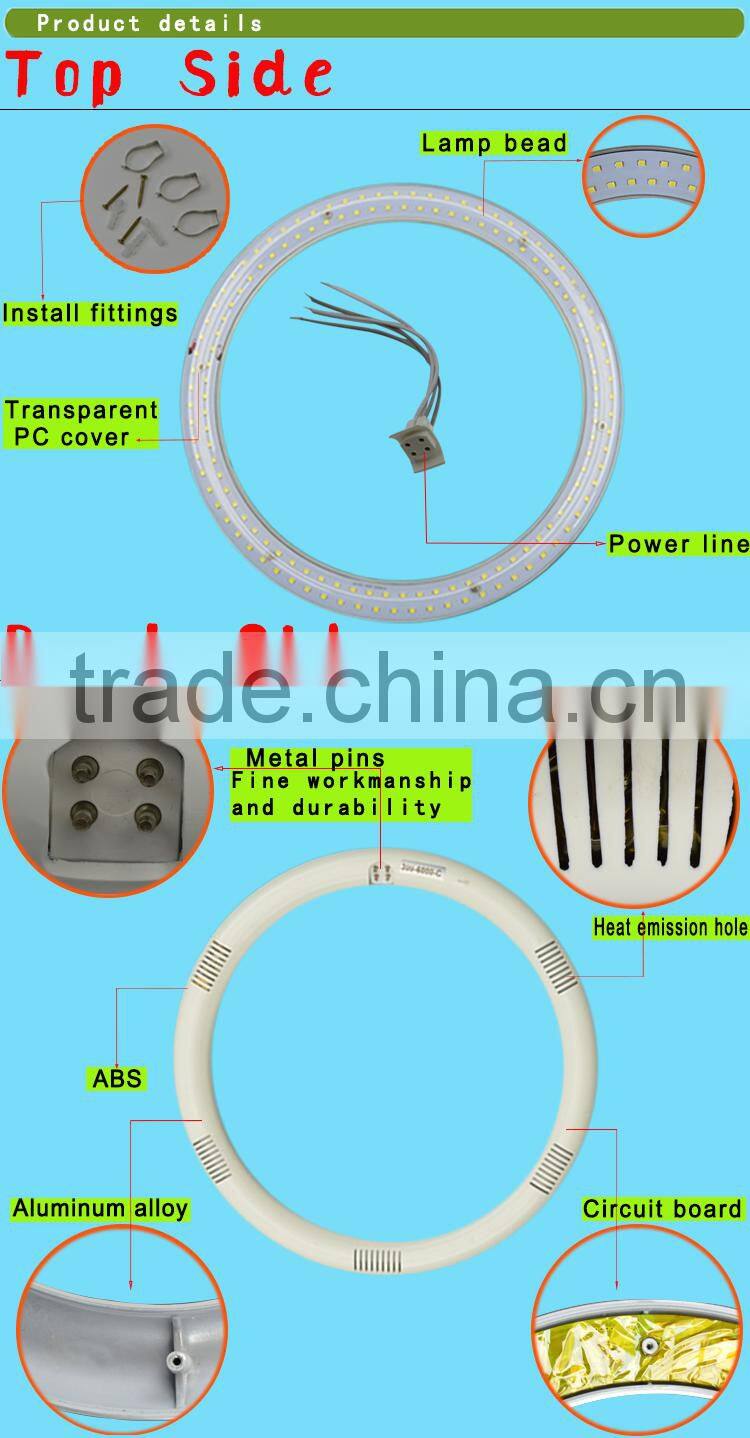

1.High quality LED Chip: Taiwan Epistar SMD2835,high brightness 150pcs led.
2.Complete independent Mould, with more professional and unique design.
3.Japanese Imported PC cover and RUBYCON capacitor, longer lifespan.
4.Newest style PCB with seamless connection.
5.Inner heat sink body from 6063 aluminum.
6.Free fee laser marking for your LOGO.
7.CE,RoHS,PSE & 3 years warranty.
Parameters:

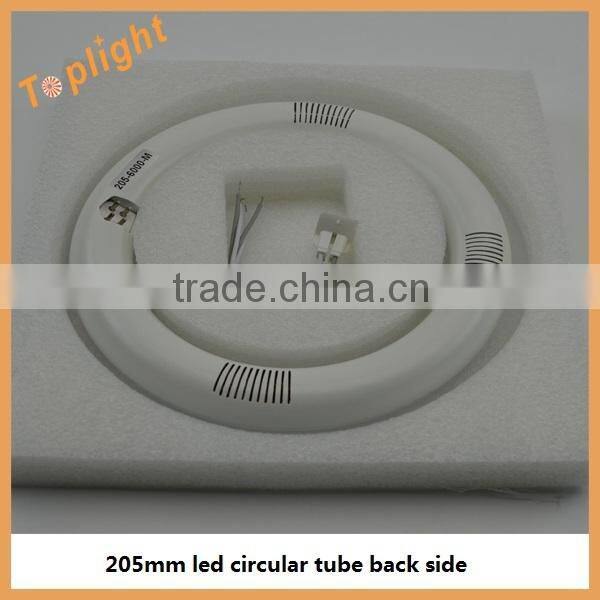

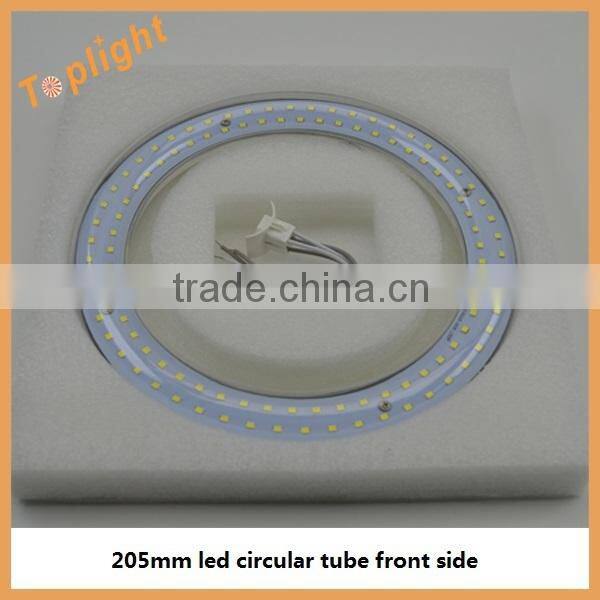

- Wattage: 11W, Dia205mm*29mm
- Colour Temperature: 3000K Warm White, 4000K Natural White, 6000K Cool White
- Base: G10q
- Lumens: 950lm or 1100lm

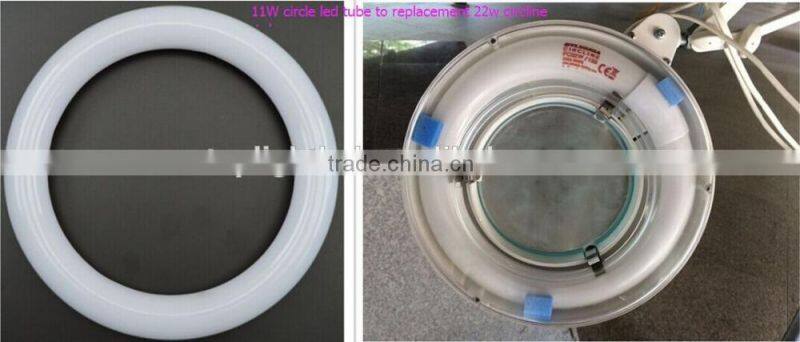

- Dimensions: CRI>80 Replacement of T9 22W Tradional Circular Tube Respectively
- Aluminium Housing, Transparent/Milky PC Cover
- Internal constatnt current driver
- Input Voltage: 85-277VAC
- Life Time 50,000 Hours
- 3Y Warranty,CE RoHS PSE approved

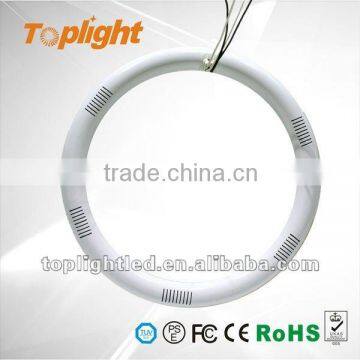

Circline led tube:
| Model No. | TP-G10SMD205-20 | TP-G10SMD225-30 | TP-G10SMD300-32 |

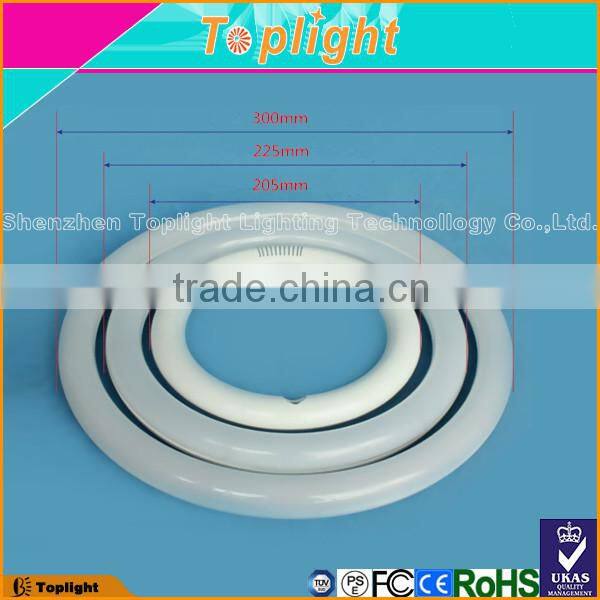

| Dimension | Dia205*29mm | Dia225*29mm | Dia300*29mm |
| Power | 11w | 12w | 18w |
| Replace Philips | 22w | 32w | 40w |
| Led quantity | 84pcs | 108pcs | 150pcs |
| LED chips | Taiwan Epistar 2835 SMD | ||
| Light efficiency | >90lm/w(Milky cover),>100lm/w(Clear cover) | ||
| Input Voltage | 100-265VAC, 85-277VAC | ||
| CCT | 2700K ~ 6500K(Warm white,pure white,cold white) | ||
| CRI | >70Ra,>80Ra Optional | ||
| Power factor | >0.95 | ||
| Housing materials | Aluminum + PC cover | ||

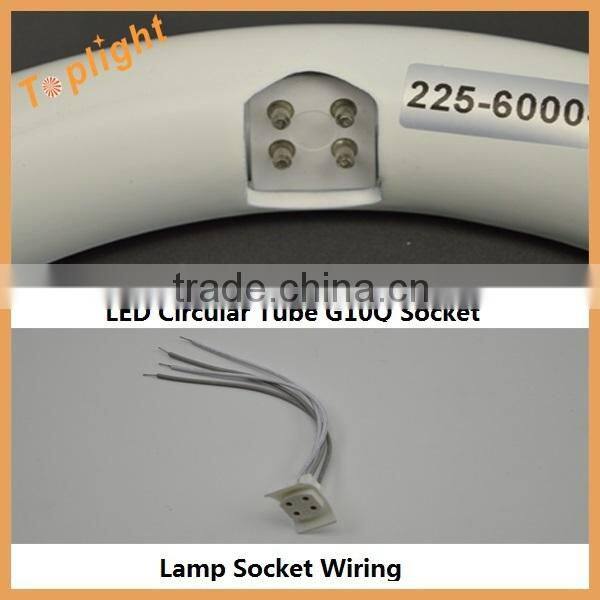

| Socket | G10Q | ||
| Power supply install | Internal/External, non-isolated/Isolated | ||
| Beam angle | >120 degree | ||
| Lifespan | 50000hours | ||
Detailed description:

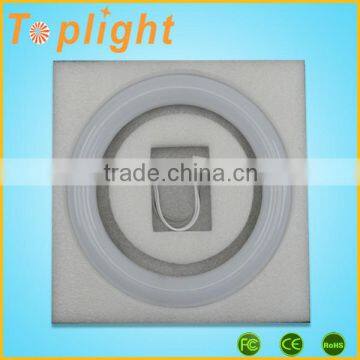

Package:
Bubble bag+White Box: 12PCS/CTN,545*275*280mm
EPE+White Box: 10PCS/CTN, 580*290*280mm

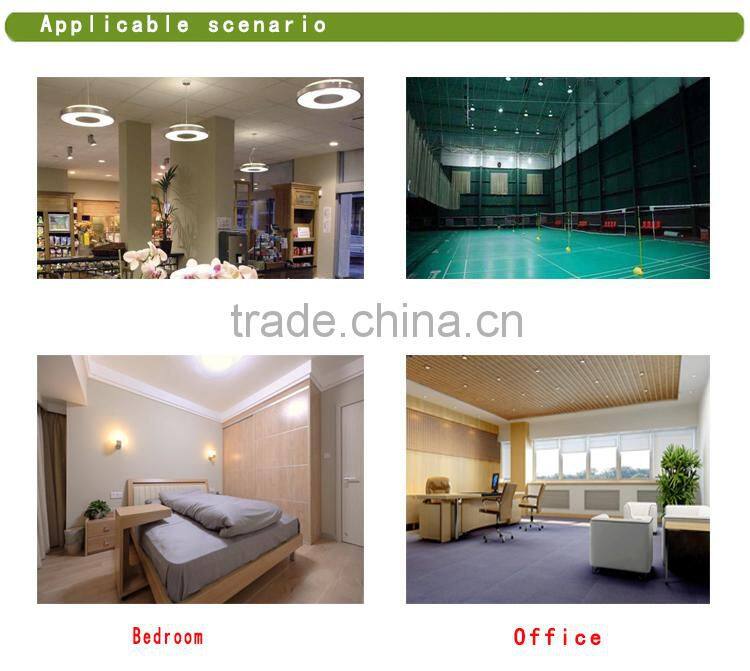

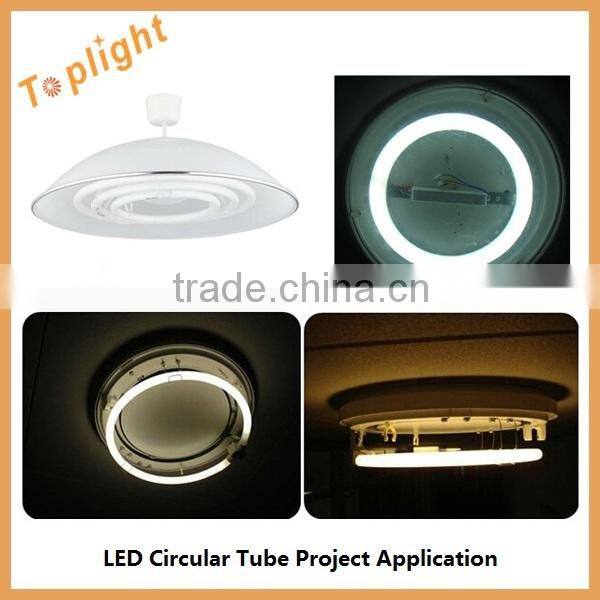

Application:
If you are interested in,please do not hesitate to contact me.
Welcome to send me your inquiry!!!
