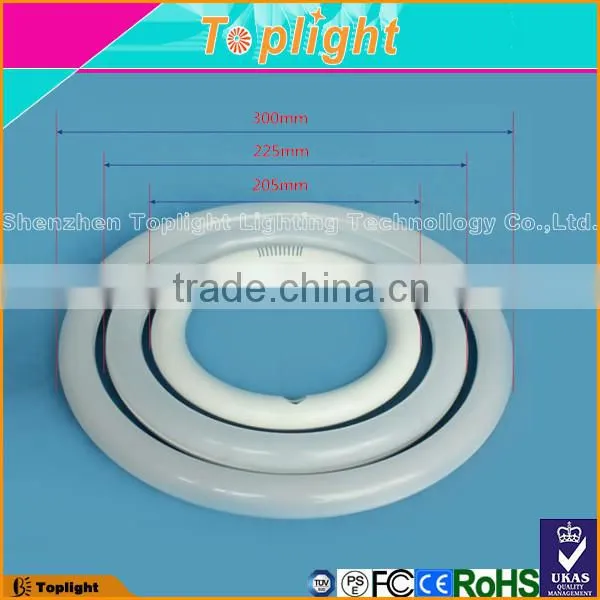

2800-7000K Diameter 205/225/300mm G10q Tube Suspended Circular LedUS$ 13 - 15MOQ: 2 Pieces -
G10q Socket t9 2800-7000K 205mm 225mm 300mm 12 Inch Circular LedUS$ 13 - 15MOQ: 2 Pieces
-
205/225/300mm 2800-7000K ce Rohs Led Tube G10q Circulaire Led ArmatuurUS$ 10 - 15MOQ: 2 Pieces
-
G10q Socket t9 2800-7000K 205mm 225mm 300mm 18 w G10q Led Circulaire BuisUS$ 13 - 15MOQ: 2 Pieces
-
2800-7000K Diameter 205/225/300mm G10q Tube Circulaire LedUS$ 13 - 15MOQ: 2 Pieces

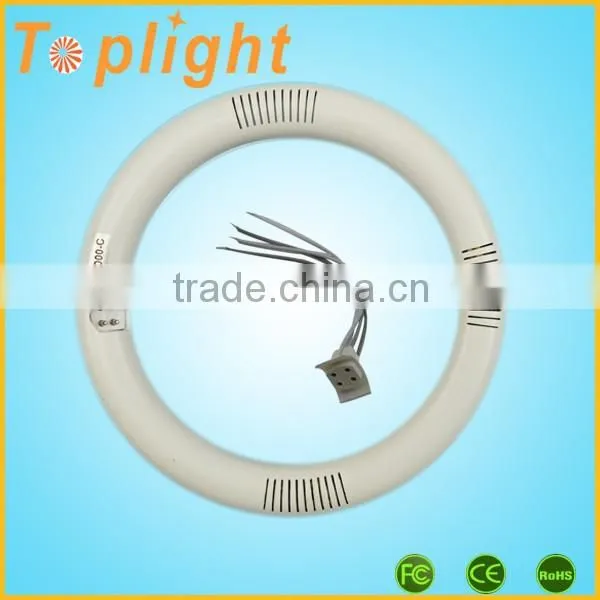

T9 12w g10q led circular tube replacement 2g13 lamp
T9 Tube & G10Q Socket LED Circular Ceiling light
Model Optional: TP-G10SMD205-20(11w), TP-G10SMD225-30(12w),TP-G10SMD300-32(18w)
Product Advantages:
1.It can replace the traditional Philps fluorescent ceiling tube,more brighter and long lifespan.
2.Inner driver ,PF>0.92, and stable.Easy to install.

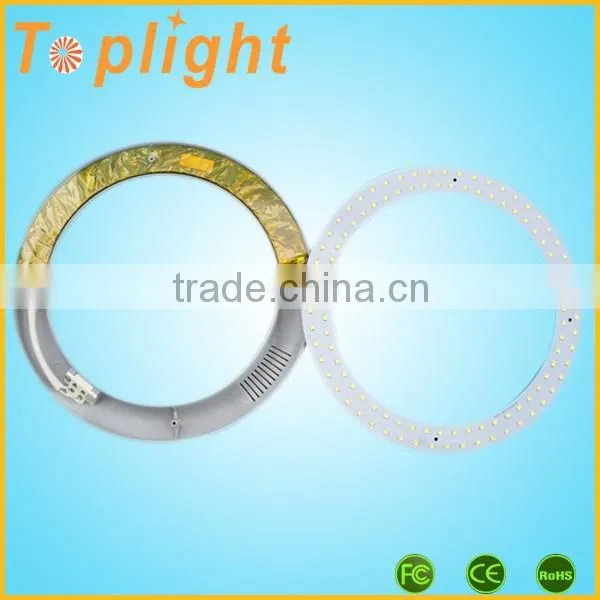

3.Adopt the connection of Al and PC . Perfect design,shine with all round .the plug is G10Q.
Application:
1.Illumination lighting for homes,offices,restaurants,hotels,malls,buses,trains,warehouses,parking lots etc.
2.Task lighting for cabinets, cupboards etc in your homes,restaurants,and kitchens or any other places where accent lighting is required.
3.Dispplay lighting for the articles in your stores and shops.
4.Back lighting for square billboards or advertisement boards.
Product Parameters:
(1) electrical parameter:
|
Tube Length (mm) |
Model No. |
Socket |
LED Quantity (pcs) |
Luminous Flux (lm) |
225mm*30±0.5mm |
TP-G10SMD225-20 |
G10Q |
108pcs |
1050-1260lm |
(2) basic parameter:
Power |
12W |
LED Quantity |
2835 LED/108pcs |
Input voltage |
85-265VAC |
Beam Angle |
>120degree |
Power Factor |
>0.95 |
Power Efficiency |
>92% |
Material |
AL+PC |
(3)PC and color temperature:
Color Temperature |
Warm White(2700-3500K) |
Natural White(4000-4500K) | |
Cool White(6000-6500K) | |
Tube PC |
Clear PC |
Frosted PC |
Installation:
12W Circular T9 LED Tube Light could be installed on the G10Q base lamp.
Kindly Notice: before installing, please make sure the power source is off!
Aging:
12W Circular T9 LED Tube Light 's aging time is over 72hours, the LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

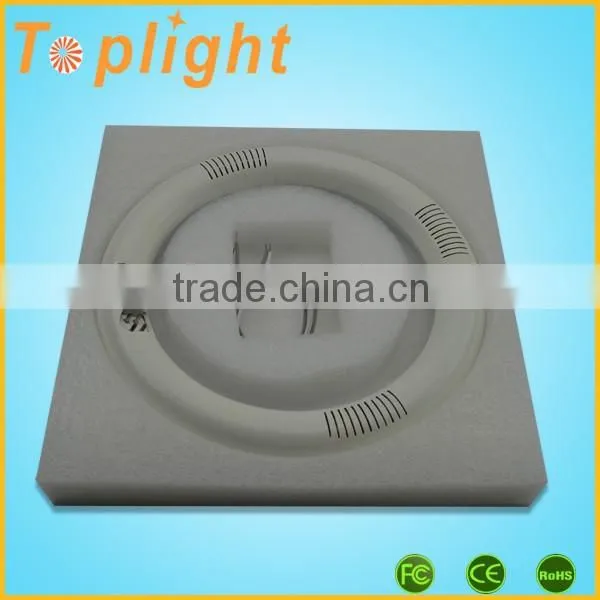

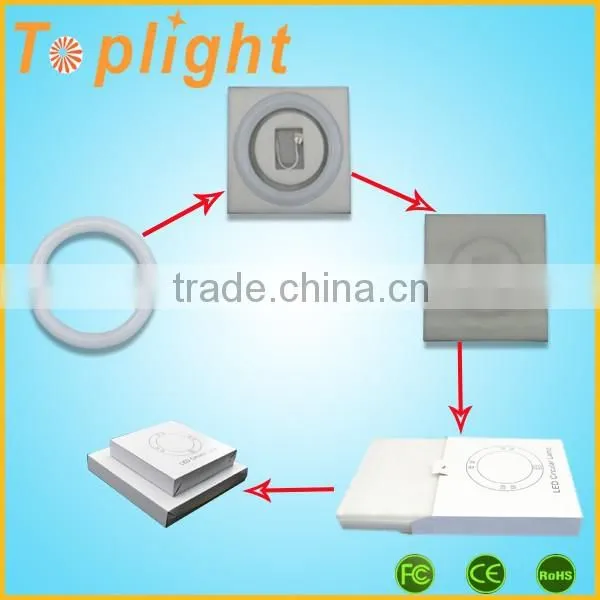

Packing:
Tube Length |
Model No. |
Net Weight |
Packing Size |
Carton Quantity |
225mm*30±0.5mm |
TP-G10SMD225-20 |
0.30kg |
620*290*290mm |
10pcs/CTN |
Bubble bag+White Box: 12PCS/CTN,545*275*280mm
EPE+White Box: 10PCS/CTN, 545*275*280mm

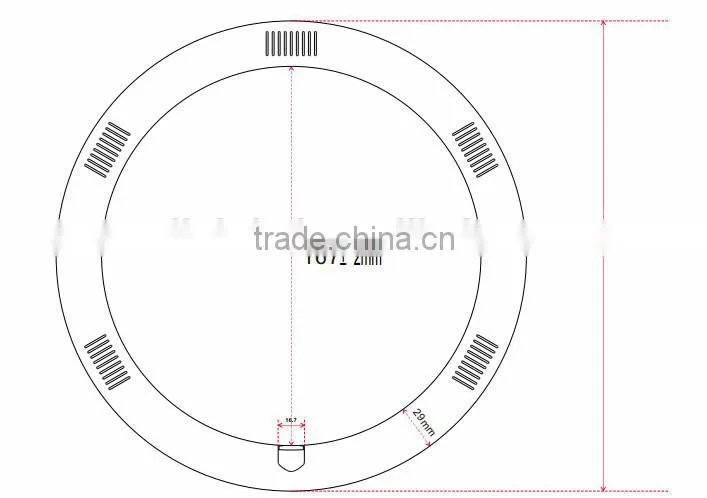

Product size:

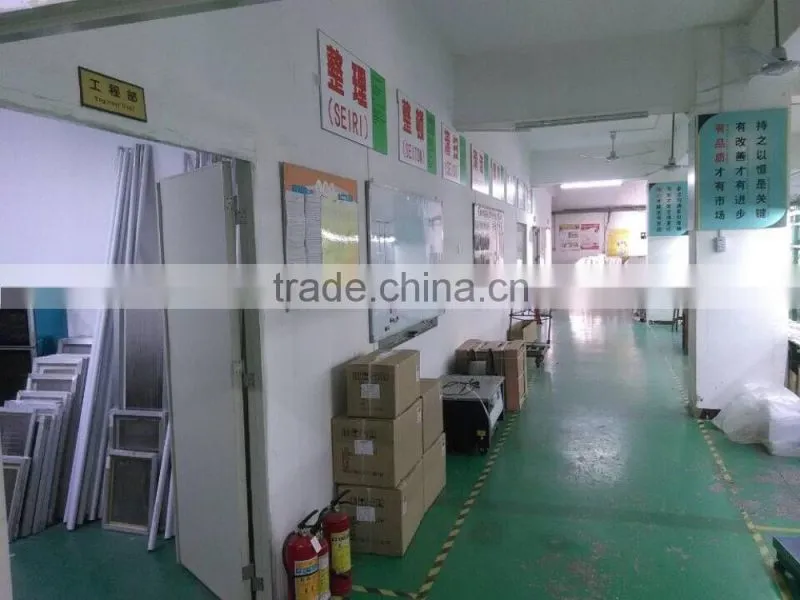

Factory Pictures:
Contact info:
Ms Jessie Jiang
