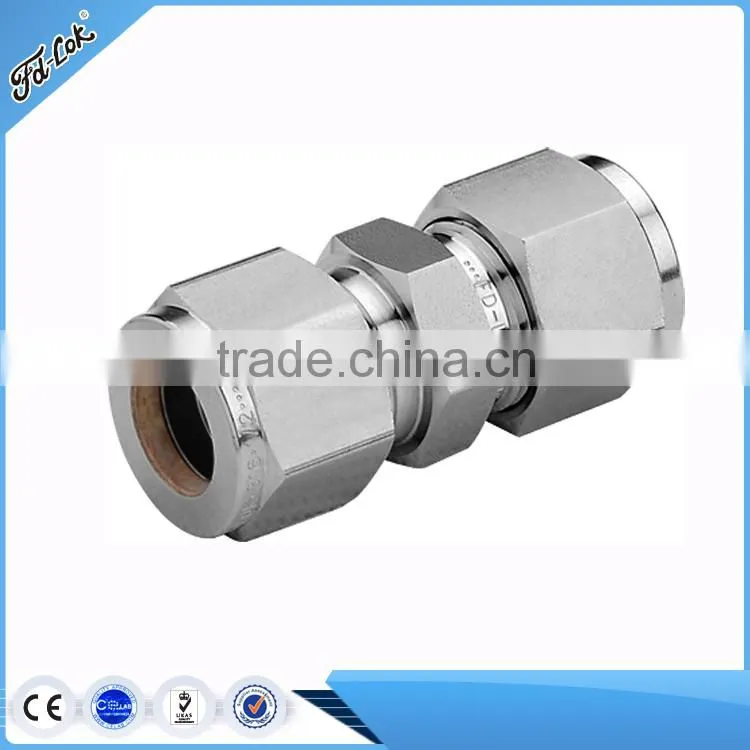

Reducing union, double ferrule tube fitting, swagelok type fitting
Feature:
1.Sizes range from 1/16" to 11/2" and 2 mm to 38 mm.
2.Diverse materials and configurations are available.
3.Precision machined components ensure perfect deformation of the ferrules and tubing.
4.Female nut threads are silver-plated to minimize the friction with the body threads.
5.Radius junction design with elbows provides smooth flow path.
6.Every fitting is stamped with size, material, and heat code.
7.Fittings are easy to disconnect and retighten.
8.Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.
| Material | Minimum Temperature | Maximum Temperature |
| Stainless Steel | -325°F(-198°C) | 800°F(426°C) |
| Brass | -325°F(-198°C) | 400°F(204°C) |
| Alloy 400/R-405 | -325°F(-198°C) | 800°F(426°C) |
| Product name | reducing union, double ferrule tube fitting, swagelok type fitting |
|
| Material | 316SS, 316LSS and other special materials | |
| Size |
Fractional Sizes from: 1/8" - 2" Metric sizes from: 3mm - 38mm |
|
| Nominal pressure | up to 6000-10000 PSI | |
| Technics | Forged bar stock | |
| Thread Standard | NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc | |
| Applicable medium | oil,gas,water or other medium | |
| MOQ | If have stock .unlimited quantity. If no stock , MOQ 100pcs . | |
| Payment term | stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable | |
| Packing | each one in poly bag and small box, then in export wooden case | |
| Other detail |
1)safe, reliable and leak-proof connection; 2)Easy to install ,disconnect and retighten; 3)No torque is transmitted to tubing during installation 4) Specified specification available upon request 5) Quality assurence 6) free sample can be send to test qulity before place on order |
Our product is high quality,ensure safe,trouble-free performance.
Our Capacity:
1)Date of foundation:2002
2)Annual Revenue:Above $9 million
3)About QC: Excellence, quality first is our philosophy
4)Sales Market: Europe,North America,Southeast Asia and Brazil
5)Main Products: Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,
2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,
Syphons, Globe Valves, Plug Valves, Tube
We Provide You With Sincerely Service, if you interest, please contact us NOW!!!
