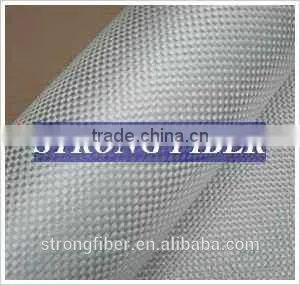

Fiberglass Woven Roving for ship making
Characteristics
- Warp and weft rovings aligned in a parallel, flat manner and uniform tension
- Densely aligned fibers, providing high dimensional stability and easy handing
- Good moldabllity, fast and complete resin wet-out, enabling high productivity
- Good transparency and high strength of the composite products
Application
Fiberglass woven roving is high-performance reinforcement widely used in hand lay up and robot processes to manufacture boats, vessels, plane and automotive parts, furniture and sports facilities.
Specification
Product No. |
Warp/Weft(Tex) |
Warp Density(Ends/cm) |
Weft Density(Ends/cm) |
Area Weitht(g/m2) |
Moisture Content(%) |
Loss in ignition(%) |
Weave |
WR200 |
180/180 |
6.00 |
5.00 |
200 |
≤0.15 |
0.40~0.80 |
Plain |
WR260 |
300/300 |
4.60 |
4.10 |
260 |
≤0.15 |
0.40~0.80 |
Plain |
WR300 |
300/380 |
5.00 |
4.00 |
300 |
≤0.15 |
0.40~0.80 |
Plain |
WR360 |
600/900 |
3.20 |
1.80 |
360 |
≤0.15 |
0.40~0.80 |
Plain |
WR500 |
1200/1200 |
2.20 |
2.00 |
500 |
≤0.15 |
0.40~0.80 |
Plain |
WR600 |
1200/1200 |
2.60 |
2.50 |
600 |
≤0.15 |
0.40~0.80 |
Plain |
WR800 |
2400 |
1.80 |
1.80 |
800 |
≤0.15 |
0.40~0.80 |
Plain |
Note: Woven Rovings are available with a width range of 50mm~2600mm and weigth range of 200g/ m2~1600g/ m2. Other specifications are also available on customer request.
Packing
Each Woven Raving is wound onto a paper tube which has an inside diameter of 76mm and the mat roll has a diameter of 225mm. The mat roll is wrapped up with plastic film,and then packed in a cardboard box or wrapped up with kraft paper. The rolls can be vertically or horizontally placed. For transportation, the rolls can be loaded into a cantainer directly or on pallets.
Storage
Unless otherwise specified, Woven roving should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15°C~35°C and 35%~65% respectively.
