Specifications
1.high refrigeration efficiency and lower loss2.flack ice machine simple structure and small land area
3.sanitary and dry
Flake Ice Machine
Application:
Commercial flake ice machine is widely used in supermarket preservation, seafood restaurant, food processing, fruit and vegetable preservation, make the seafood, fresh meat and meat products more fresh.
Industrial flake ice machine is widely used in food processing, chemical manufacturing, bio-technology, wine industry, fruit and vegetable preservation and mine cooling, etc.

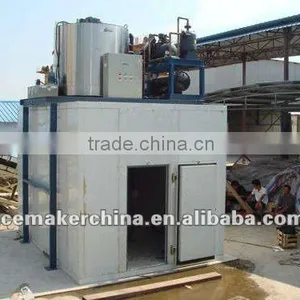

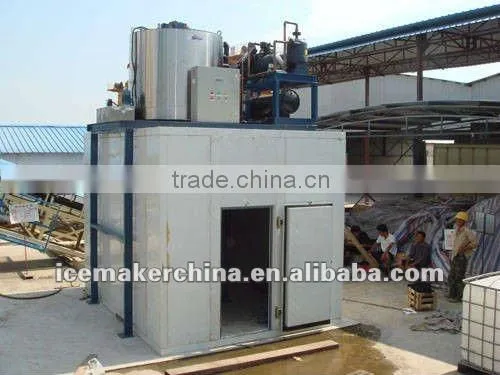

flake ice machine with cold room
Design Technology Material
Flake ice machine is designed with intelligent PLC control system, stable running,high -efficiency and simple maintenance.
Our evaporators are made up of stainless steel 304. Its evaporating area is greatly expanded and the ice is more beautiful and dryer by its inner spiral chute design. So it never distorts even long time working in low temperature and low pressure, which greatly increase the working life of the flake ice machine system.
|
|
01:Motor |
| 02:Refrigerant runner | |
| 03:Water inlet | |
| 04:Decelerator | |
| 05:Ice skate | |
| 06:Water sprinkling pan | |
| 07:Principle axis | |
| 08:Water sprinkler | |
| 09:Water return pipe | |
| 10:Ice freezing surface | |
| 11:Insulation layer | |
| 12:Ice outlet | |
| 13:Low water pan | |
| 14:Stainless steel wrapper sheet |
Feature
1.The temperature of ice is lower and it can reach 8 celsius degree below zero
2.Ice is dry and transparent, good looking shape, non-caked, good mobility and sanitary.
3.It has the flake shape so that it has big contact area with refrigerating products and the effect is excellent.
4.Flake shape and no sharp edges, cannot destroy refrigerating products and it is beneficial for storage and transportation.
5.The thickness of flake ice is 1mm-2mm. No need to crush and can use at any time.
flake ice maker machine Technical parameters:
| NO. | Production | capacity of refrigeration | Weight of Machine | Machine Dimension |
|---|---|---|---|---|
| -- | Ton/D | Kw | kg | L*W*H(mm) |
| BF500 | 0.5 | 3.75 | 160 | 1220*900*1000 |
| BF1000 | 1.0 | 8.85 | 210 | 1300*960*1200 |
| BF2000 | 2.0 | 17.84 | 360 | 1500*1200*1350 |
| BF3000 | 3.0 | 24.15 | 1000 | 1800*1250*1400 |
| BF5000 | 5.0 | 35.10 | 1100 | 2100*1250*1500 |
| BF6000 | 6.0 | 45.85 | 1100 | 2500*2040*2200 |
| BF8000 | 8.0 | 42.70 | 1300 | 2100*1250*1500 |
| BF10000 | 10.0 | 76.10 | 1500 | 2300*1750*1740 |
| BF15000 | 15.0 | 110.9 | 3200 | 3200*2100*2000 |
| BF20000 | 20.0 | 151.0 | 4200 | 3400*2200*2560 |
| BF25000 | 25.0 | 180.0 | 5000 | 3800*2300*2560 |
| BF30000 | 30.0 | 214.2 | 6000 | 4500*2300*2800 |
| BF40000 | 40.0 | 226.1 | 7500 | 7800*2100*2480 |
| BF50000 | 50.0 | 268.1 | 10000 | 5000*2300*3000 |
| BF60000 | 60.0 | 278.4 | 12000 | 5500*2300*3200 |
Before shipping, we test our products and check all parts!
