Automatic Plate Ice Maker Machine Price
Ⅰ.About Plate Ice Machine
1. Energy saving can reach beyond 30%.
2. Daily capacity can be from 1ton to 50tons.
3. Ice thickness is from 6mm to 8mm, it is also adjustable.
4. Easy to operate: PLC programmable monitor, no need manpower
Ⅱ.Plate Ice Machine Different Model:
Model |
Output |
Compressor Power |
Water Pump Power |
Water Consumption |
Outer Dimension(mm) |
Net Weight |
|
Ton/24h |
KW |
KW |
L/H |
L*W*H |
Kg |
HYF10 |
1 |
2.51 |
0.4 |
42 |
1900*1370 *1665 |
660 |
HYF15 |
1.5 |
3.93 |
0.4 |
63 |
1900*1470* 1700 |
730 |
HYF20 |
2 |
5 |
0.75 |
83 |
1900*1550* 1700 |
750 |
HYF25 |
2.5 |
5.25 |
0.75 |
104 |
1900*1650*1700 |
890 |
HYF30 |
3 |
7.5 |
0.75 |
125 |
1900*1770*1800 |
1100 |
HYF40 |
4 |
11 |
0.75 |
167 |
2500*1800*2000 |
1500 |
HYF50 |
5 |
15 |
1.1 |
208 |
2500*1850* 2100 |
1900 |
HYF60 |
6 |
18.75 |
1.1 |
250 |
2500*1890*2100 |
2100 |
HYF80 |
8 |
22.5 |
1.5 |
333 |
2500*1920*2100 |
2500 |
HYF100 |
10 |
30 |
2.2 |
417 |
2500* 2100*2530 |
3100 |
HYF120 |
12 |
37.5 |
2.2 |
500 |
2500 2200*2300 |
3320 |
HYF150 |
15 |
43 |
3.7 |
625 |
2500* 2200*2480 |
3500 |
HYF200 |
20 |
59 |
3.7 |
833 |
3470* 2200*2480 |
4700 |
HYF250 |
25 |
73 |
3.7 |
1042 |
5100* 2200* 2480 |
4900 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn’t mention size of cooling tower, cooling tower is usually installed in the outside.
Machine running condition: water temperature: 23Centi degrees, evaporate temperature:-12Centi degrees, condensing temperature 40Centi degrees, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
Ⅲ.Customers:
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our factory and give us suggestion, let us make progress, thanks!
IV.Packing:
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customers only need prepare power for the machine.
4. All required components for installing the machine will be provided.
V. Plate Ice Machine Pictures:

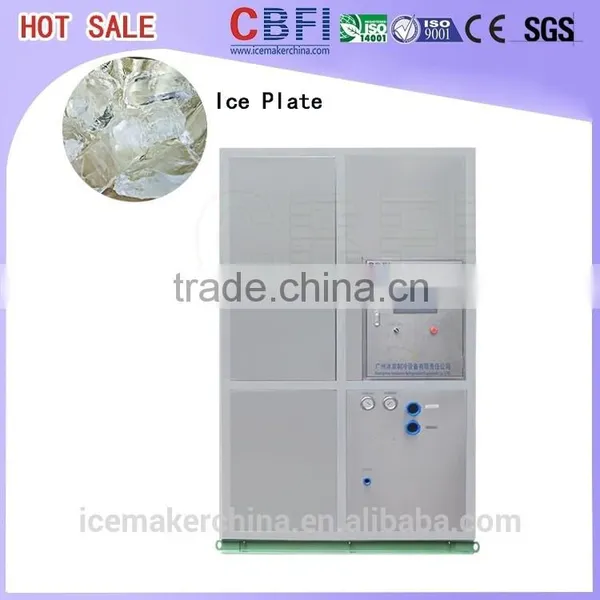

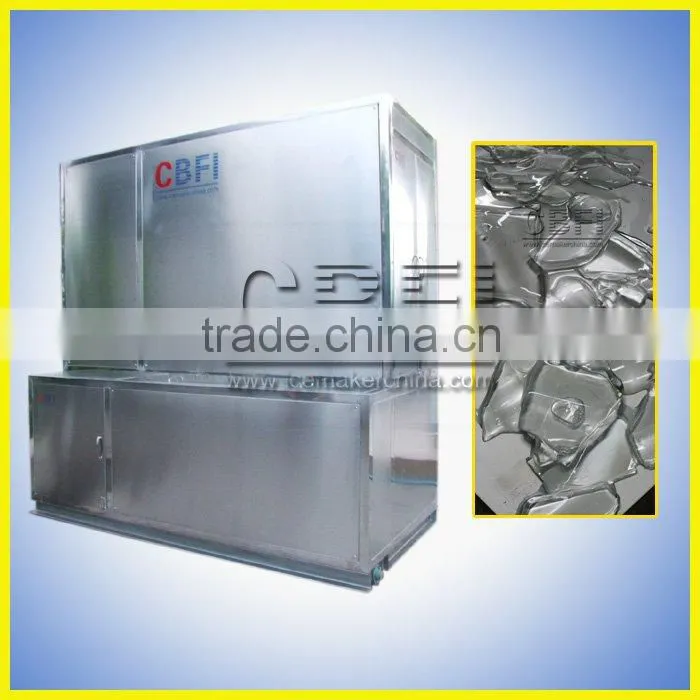

This is the outlook of the ice plate machine. It is stainless stell 304.

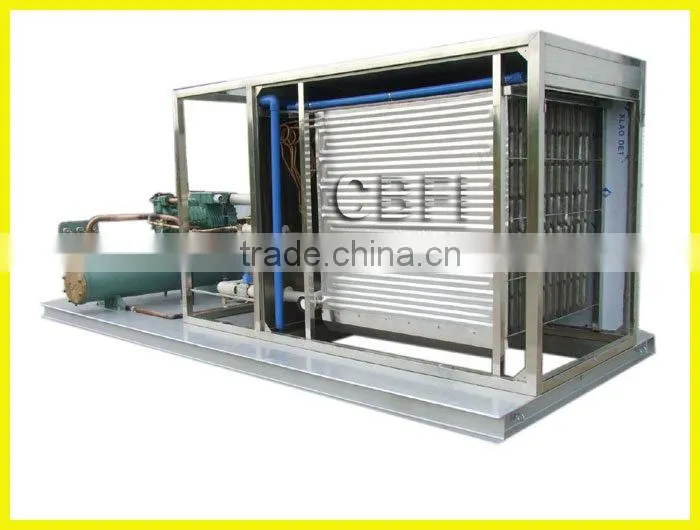

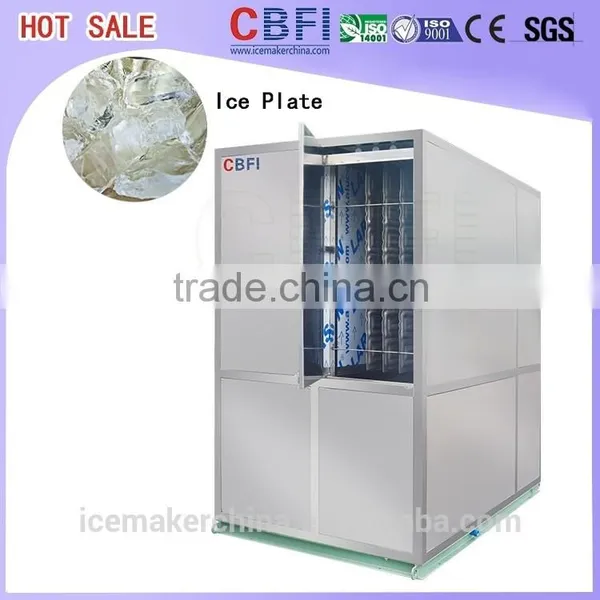

You can see the internal appearance of the ice plate machine from this picture.
The ice plate machine in our customers.
This is the plate ice .All the ice are transparent and dry.
The lifelong the ice making evaporator is 100 years.
