Specifications
1.industry leading evaporator2.double-sided formed ice technology
duce 1ton ice consume 60kw power
Application of plate ice:
Plate ice is dense ice, high cleaning ability, big refrigeration quantity, and ice thickness is adjustable. Its function become increasingly important in industry, agriculture and fishing industry. Plate ice is widely used for fisheries production, aquatic products processing, aquatic fishing, transportation ice using, meat product processing, supermarket fresh-keeping, food process, medicine, chemical and dye, fermentation engineering, construction project concrete cooling, mine cooling, ice storage project and papermaking industry.
Features of ice machine:
The shape of the ice is a plate ice, the evaporator have two technologies: flat liquid film heating exchange technology and double-side formed ice technology and have many S-type heating pipes which design according to the hot-runner and adopt the heating dropping ice technology, so the machine not have any wear and tear.
The ice making system is the multiple system that making ice dependent and have the dropping ice function, shorten the ice-making period, the full equipment have good anti-corrosive function, anti-shock and resist pressure performance. It realized that produced one tone ice just consumed about 60KW power, it has the incomparable advantage of the flake ice machine and the others ice machine.

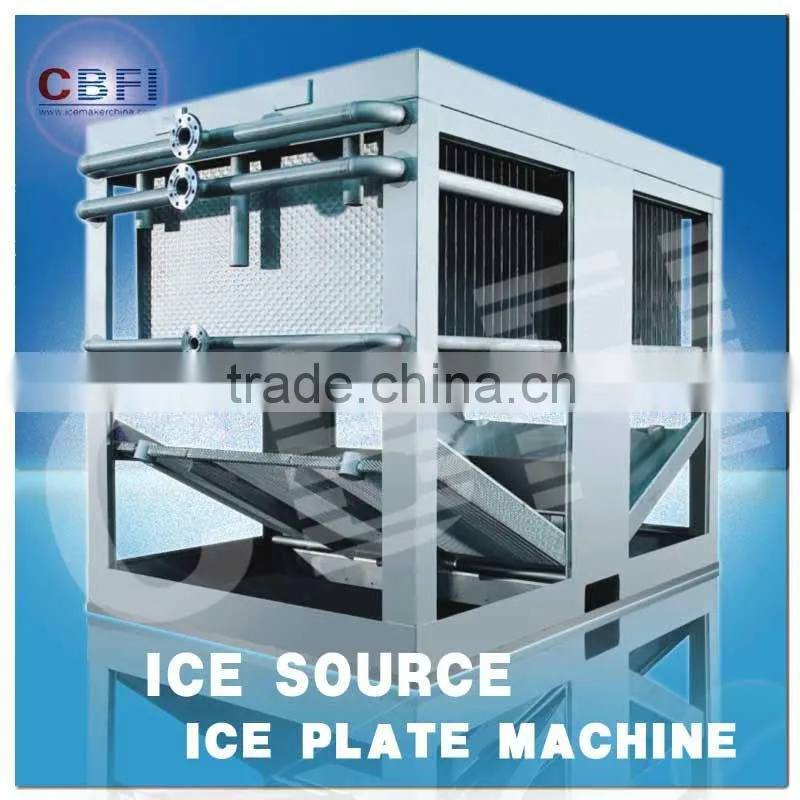

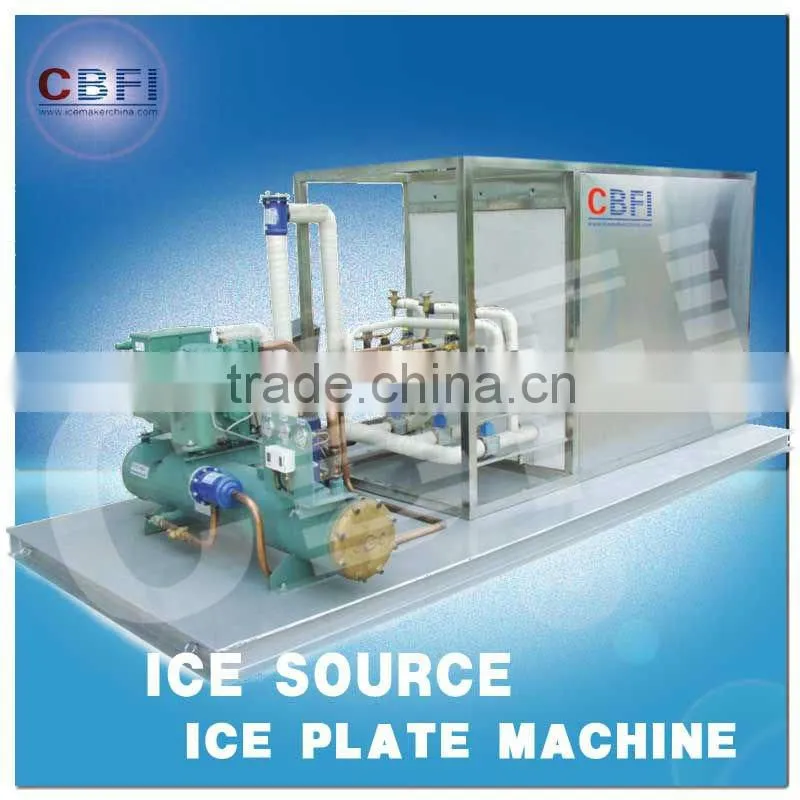

HYF Series Plate Ice Machine:
Item No. |
Production |
Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
HYF10 |
1.0 |
3.69 |
0.37 |
0.75 |
0.37 |
1900*1370*1660 |
800 |
HYF20 |
2.0 |
7.11 |
0.55 |
0.75 |
0.55 |
2400*1600*1700 |
1200 |
HYF30 |
3.0 |
9.68 |
0.55 |
1.5 |
0.75 |
2400*1600*1800 |
1350 |
HYF50 |
5.0 |
17.47 |
0.55 |
1.5 |
1.5 |
2500*1860*1840 |
1500 |
HYF100 |
10.0 |
26.6 |
1.1 |
2.2 |
1.5 |
2500*2200*2150 |
2500 |
HYF150 |
15.0 |
48.3 |
1.1 |
3.7 |
2.2 |
4000*1800*2200 |
3800 |
HYF200 |
20.0 |
63 |
1.5 |
3.7 |
3.75 |
4000*2040*2200 |
4650 |
Plate ice is dense ice, high cleaning ability, big referation quantity, and ice thickness is adjustable. Its function become increasingly important in industry, argiculture and fishing industry.
Welcom to purchase our products!
