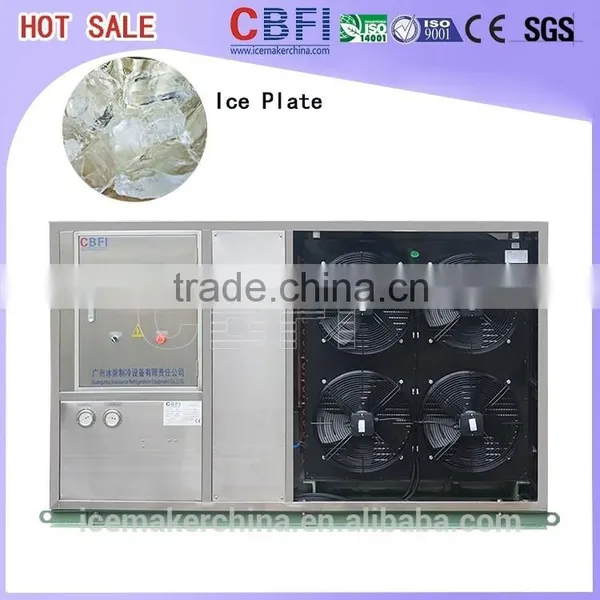

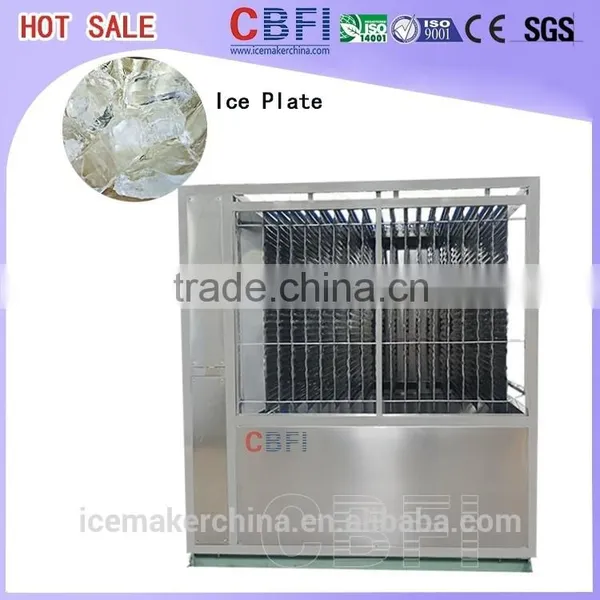

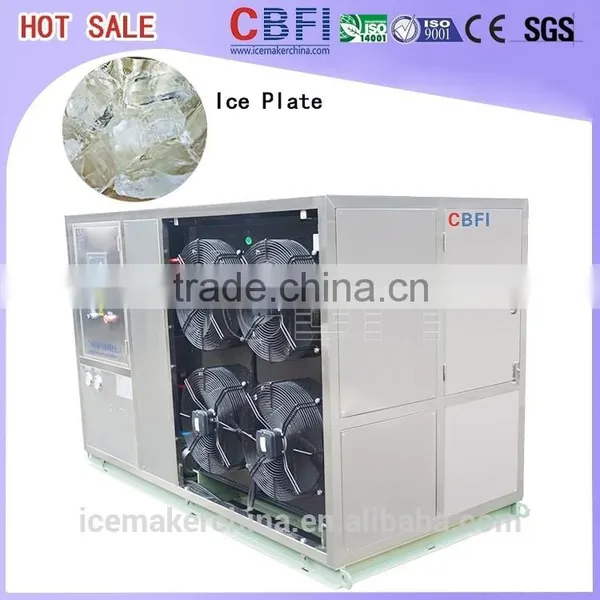

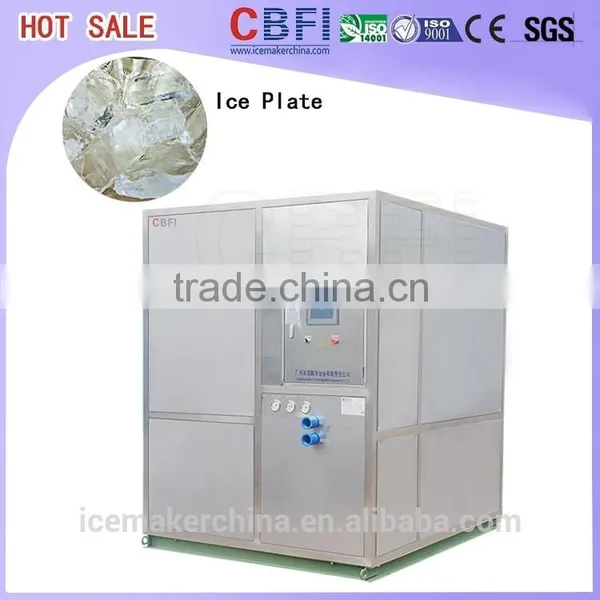

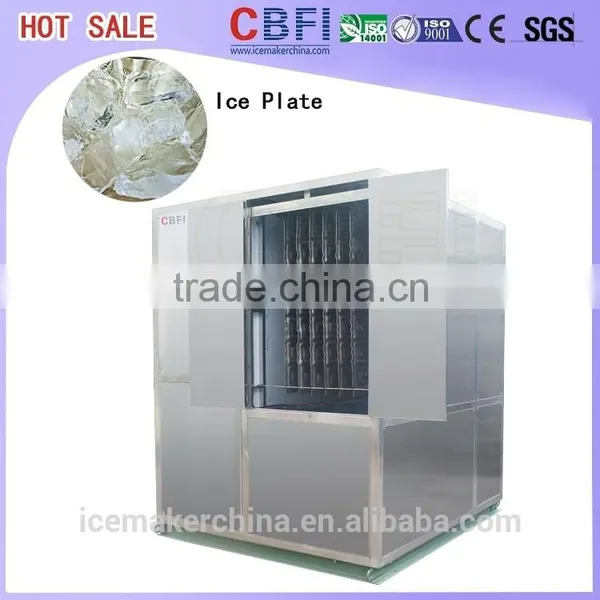

High Quality Industrial Plate Ice Making Machine In Africa

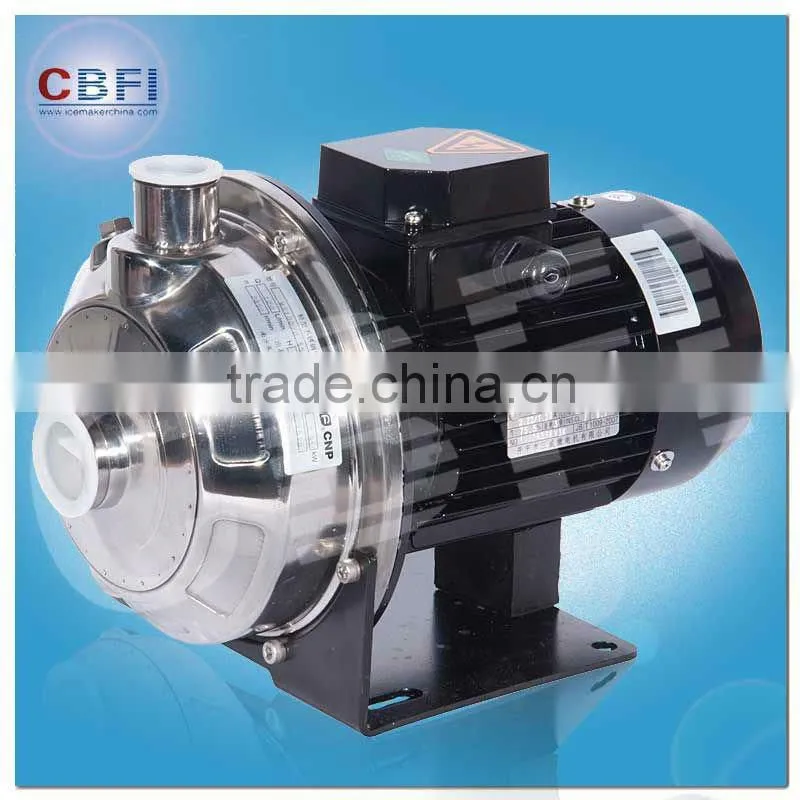

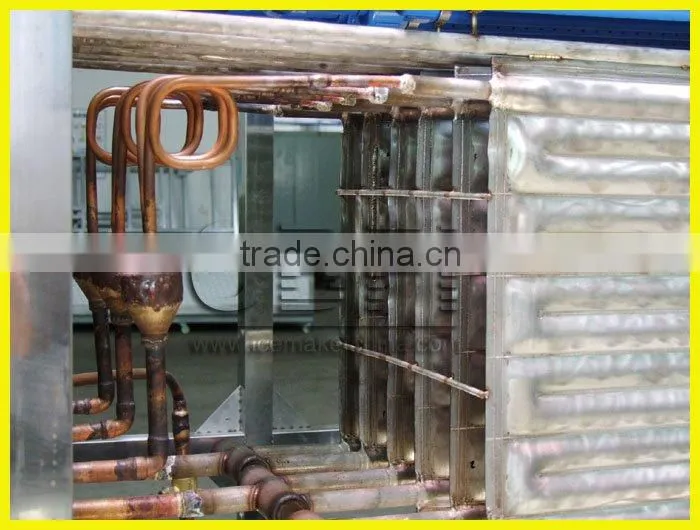

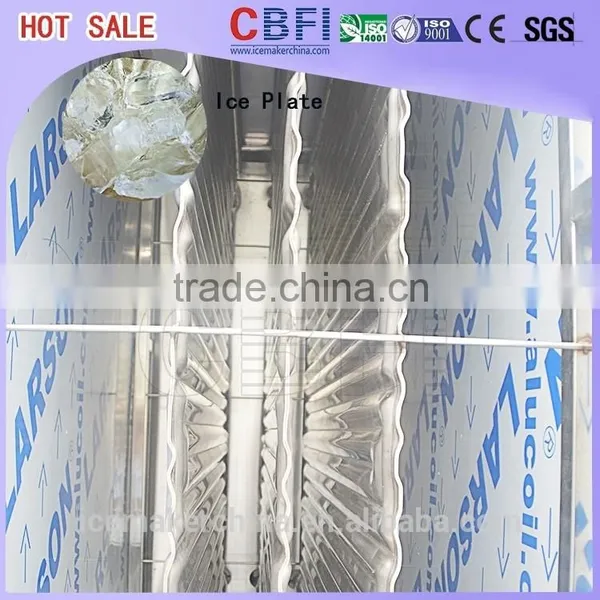

When the large plate ice machine begins operating normally, the water in the tank below is pumped from the cold water tank to the cold water sprinkler, and then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle. After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.
HYF Series Plate Ice Machine:
Model |
Output |
Compressor Power |
Water Pump Power |
Water Consumption |
Outer Dimension(mm) |
Net Weight |
Ton/24h |
KW |
KW |
L/H |
L*W*H |
Kg |
|
HYF10 |
1 |
2.51 |
0.4 |
42 |
1900*1370 *1665 |
660 |
HYF15 |
1.5 |
3.93 |
0.4 |
63 |
1900*1470* 1700 |
730 |
HYF20 |
2 |
5 |
0.75 |
83 |
1900*1550* 1700 |
750 |
HYF25 |
2.5 |
5.25 |
0.75 |
104 |
1900*1650*1700 |
890 |
HYF30 |
3 |
7.5 |
0.75 |
125 |
1900*1770*1800 |
1100 |
HYF40 |
4 |
11 |
0.75 |
167 |
2500*1800*2000 |
1500 |
HYF50 |
5 |
15 |
1.1 |
208 |
2500*1850* 2100 |
1900 |
HYF60 |
6 |
18.75 |
1.1 |
250 |
2500*1890*2100 |
2100 |
HYF80 |
8 |
22.5 |
1.5 |
333 |
2500*1920*2100 |
2500 |
HYF100 |
10 |
30 |
2.2 |
417 |
2500* 2100*2530 |
3100 |
HYF120 |
12 |
37.5 |
2.2 |
500 |
2500 2200*2300 |
3320 |
HYF150 |
15 |
43 |
3.7 |
625 |
2500* 2200*2480 |
3500 |
HYF200 |
20 |
59 |
3.7 |
833 |
3470* 2200*2480 |
4700 |
HYF250 |
25 |
73 |
3.7 |
1042 |
5100* 2200* 2480 |
4900 |
