High Quality Seawater Flake Ice Maker for Fishery

Specifications

Application:

Commercial  seawater flake ice maker  is widely used in supermarket preservation, seafood restaurant, food processing, fruit and vegetable preservation, make the seafood, fresh meat and meat products more fresh.

Industrial  seawater flake ice maker  is widely used in food processing, chemical manufacturing, bio-technology, wine industry, fruit and vegetable preservation and mine cooling, etc.

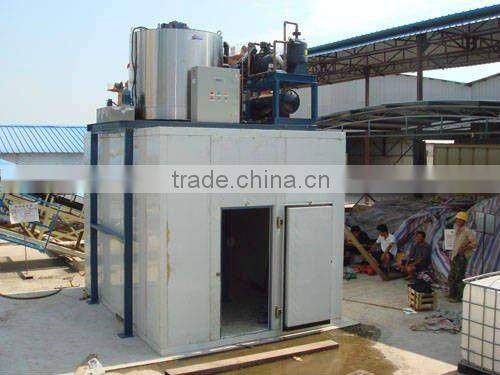

ice flake making machine with cold room

Design  Technology  Material

seawater flake ice maker  is designed with intelligent PLC control system, stable running,high -efficiency and simple maintenance.

Our evaporators are made up of stainless steel 304. Its evaporating area is greatly expanded and the ice is more beautiful and dryer by its inner spiral chute design. So it never distorts even long time working in low temperature and low pressure, which greatly increase the working life of the flake ice machine system.

	01:Motor
	02:Refrigerant runner
	03:Water inlet
	04:Decelerator
	05:Ice skate
	06:Water sprinkling pan
	07:Principle axis
	08:Water sprinkler
	09:Water return pipe
	10:Ice freezing surface
	11:Insulation layer
	12:Ice outlet
	13:Low water pan
	14:Stainless steel wrapper sheet

The evaporator workers by way of insides scratching and remains unmoved while the knives scratch ice inside wall, the supply of refrigerant keeps constant and unleaked for improved stability of operation.

This machine is made of low temperature quality alloy with reasonable piping design for efficient heating transfer, which can not only improve effectiveness of cold-produce and decrease the running cost, but also can reduce the space requirement and weight and so the disposable investment.

The ice knife works by way of spiral and rolling. Compared with fixed ice knife, it has advantages of smaller resistance, lower power consumption, no noise emission and powerless ice.

Feature

1.The temperature of ice is lower and it can reach 8 celsius degree below zero

2.Ice is dry and transparent, good looking shape, non-caked, good mobility and sanitary.

3.It has the flake shape so that it has big contact area with refrigerating products and the effect is excellent.

4.Flake shape and no sharp edges, cannot destroy refrigerating products and it is beneficial for storage and transportation.

5.The thickness of flake ice is 1mm-2mm. No need to crush and can use at any time.

seawater flake ice maker  Technical parameters:

Before shipping, we test our products and check all parts!
