Convenience to install cube ice machine
1. Ice cube machine for produce food grade ice, cube ice is edible ice.
2. Cube ice you can see often in Restaurant, Hotel, and Wine bar and so on.
3. Cube ice have two sizes for choose, 22mm x 22mm x 22mm, 29mm x 29mm x 22mm.
4. Daily capacity of ice cube machine can be from 1tons to 20tons.
5. Cube ice is widely adopt in hotel, bars, banqueting hall, western restaurant, fast food restaurant, CVS( convenience store), cold drinking shop.
1. Reasonable design for the structure, save space, easy to install
2. Greatly save energy, only 80-85kw powers are consumed too produce one ton ice.
3. Ice dropping automatically, no ice dropping auxiliary equipment, lower the error rate.
4.Special ice outlet, ice outgoing automatically, no need taking ice by hand and ensure the ice clean and sanitary.
|
Item No. |
Production |
Compressor Rated Power |
Circult -ing Water Pump Power |
Cool -ing Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
CV1000 |
1.0 |
3.69 |
0.37 |
1.5 |
0.37 |
1200*1000*1600 |
800 |
CV2000 |
2.0 |
7.11 |
0.37 |
1.5 |
0.55 |
1630*1600*1686 |
1000 |
CV3000 |
3.0 |
9.68 |
0.37 |
2.2 |
0.75 |
1980*1630*1840 |
1200 |
CV5000 |
5.0 |
17.47 |
0.55 |
2.2 |
1.5 |
2890*1780*1840 |
1600 |
CV8000 |
8.0 |
28.52 |
1.1 |
4 |
1.5 |
4820*1780*2000 |
2500 |
CV10000 |
10.0 |
37.68 |
1.1 |
4 |
1.5 |
5730*1780*2000 |
3000 |
CV15000 |
15.0 |
52.41 |
1.65 |
5.5 |
2.2 |
8620*1780*2000 |
4500 |
CV20000 |
20.0 |
75.36 |
2.2 |
8 |
3 |
11460*1780*2100 |
6000 |
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for installing the machine will be provided.

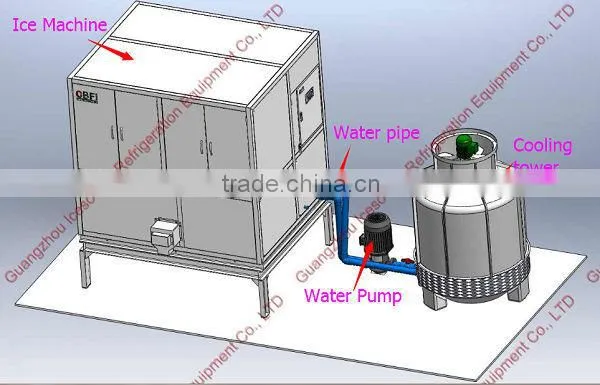

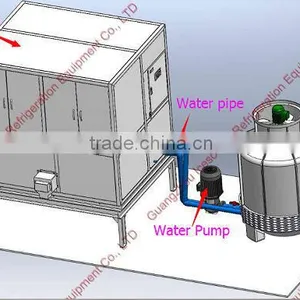

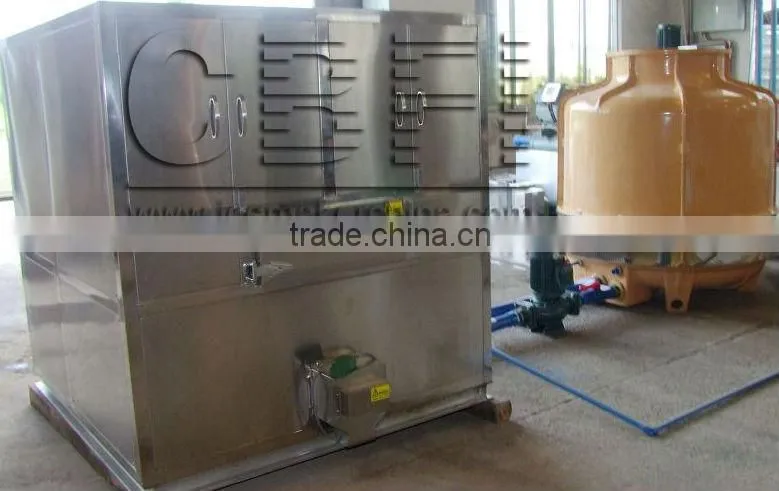

This is the whole of the machine. The design is so compact. And the cooling tower always has been in installed oueside.
You can know clearly the machine fittings from this pictures.

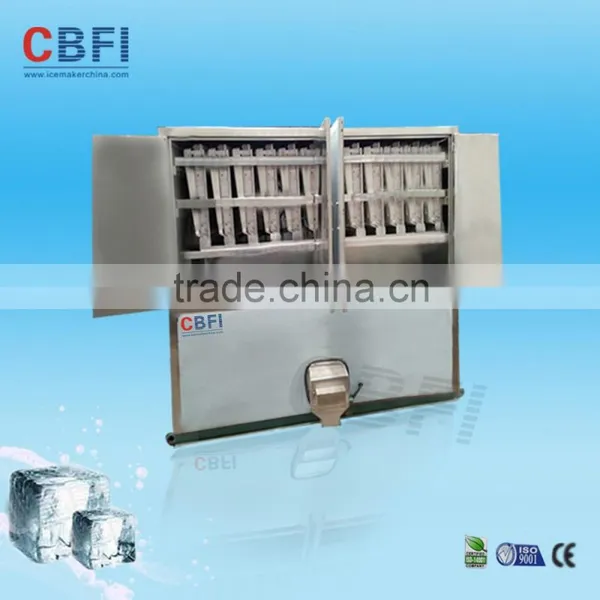

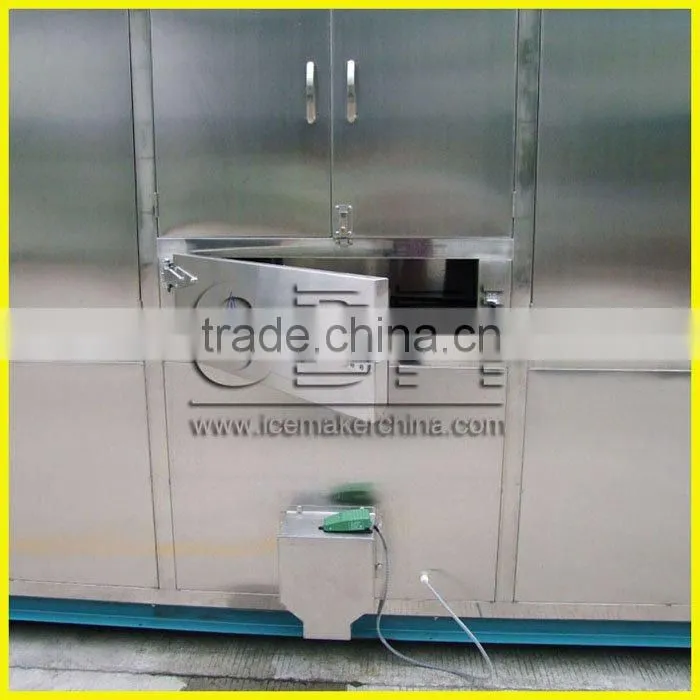

The ice come out automatically, you just need to put a bag in the exist and then pack the ice.

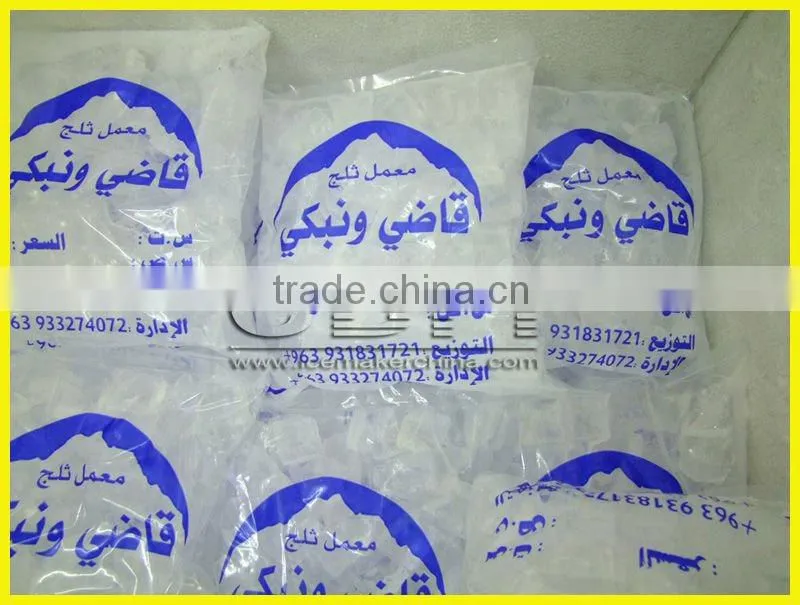

The ice cam be packed like this. And then sell them to your customers.
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.

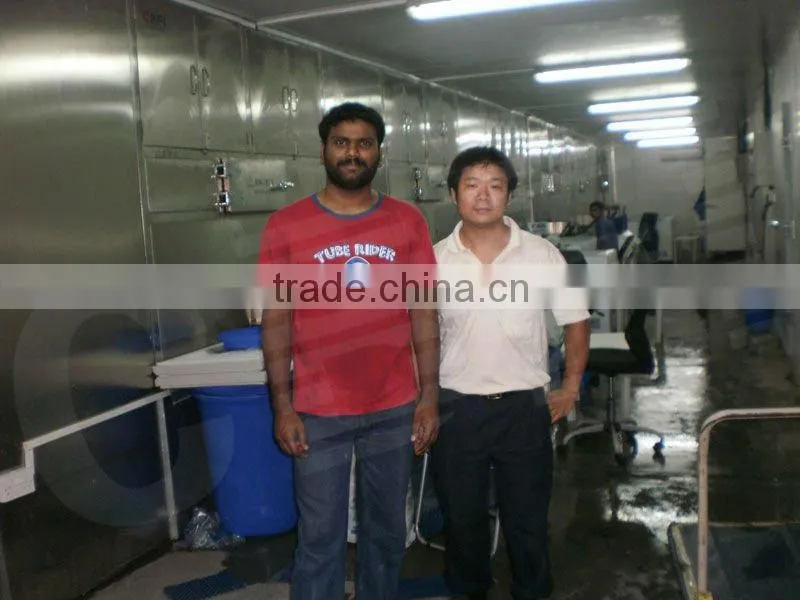

Our technician went to install the ice cube machine in Africa. You can see from this picture that the ice factory can be like this.
This is the ice making evaparator.
