Cube Ice Maker
Cube ice machines are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops,etc.
1. Cube Ice Machine
2. Cooling Tower
3. Cooling Water Pump
4. Other essential parts of the machine installation as the picture show.
Note:Machine is coming to use, you only need to connected the power and water supply,
simpleconnection.
Different capacity of cube ice machine:
Machine running condition:
water temperature: 25Centi degree,
evaporate temperature:-12Centi degree,
condensing temperature: 40Centi degree,
Ice Cube Machine Different Model:
|
Item No. |
Production |
Compressor Rated Power |
Circult -ing Water Pump Power |
Cool -ing Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
CV1000 |
1.0 |
3.69 |
0.37 |
1.5 |
0.37 |
1200*1000*1600 |
800 |
CV2000 |
2.0 |
7.11 |
0.37 |
1.5 |
0.55 |
1630*1600*1686 |
1000 |
CV3000 |
3.0 |
9.68 |
0.37 |
2.2 |
0.75 |
1980*1630*1840 |
1200 |
CV5000 |
5.0 |
17.47 |
0.55 |
2.2 |
1.5 |
2890*1780*1840 |
1600 |
CV8000 |
8.0 |
28.52 |
1.1 |
4 |
1.5 |
4820*1780*2000 |
2500 |
CV10000 |
10.0 |
37.68 |
1.1 |
4 |
1.5 |
5730*1780*2000 |
3000 |
CV15000 |
15.0 |
52.41 |
1.65 |
5.5 |
2.2 |
8620*1780*2000 |
4500 |
CV20000 |
20.0 |
75.36 |
2.2 |
8 |
3 |
11460*1780*2100 |
6000 |
Reference valve under 50Hz power supply. Real production of machine will have a little
change according to change of water temperature and ambient temperature.
The above information is according to adopt water cooled condenser.
Size of machine is before installation. It didn’t mention size of cooling tower, cooling tower.
And the cooling tower usually install in the outside.
CBFI cube ice:
1. Ice cube machine daily production capacity is from 1 ton to 20 tons.
2. Ice cube machine is used produce food grade ice, cube ice is edible ice.
3. Cube ice have two sizes for choice, 22mm x 22mm x 22mm,
29mm x 29mm x 22mm
Two different ice size is optional for you
CBFI cube ice machine details:
1. Nickeled Copper Ice Mould:
1. All CBFI Cube Ice machine use Copper Ice mould coated with Nickel
2. Resistant to 60% concentrated nitric acid to clean and no erosion.When washing ice machine,the low concentration of acetic acid can not clean up the ice moulds.
3. Longer use life.

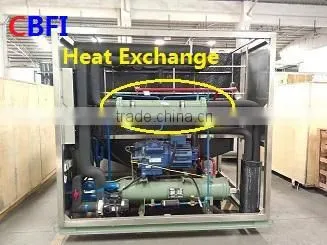

2.Function of Heat exchanger(CBFI Exclusive Applicant)
1. Cooling the ice maker supply refrigerant, make them flow into the expansion valve in a
lowertemperature,improve the refrigeration efficiency.
2. Some of the Returnrefrigerant after making ice is in liquid, heat exchange evaporate into
gas make all the refrigerant backinto compressor in gas, avoid liquid impact of compressor
3. Energy saving,it low to 80 kw.h per ton ice.

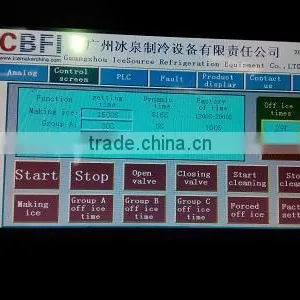

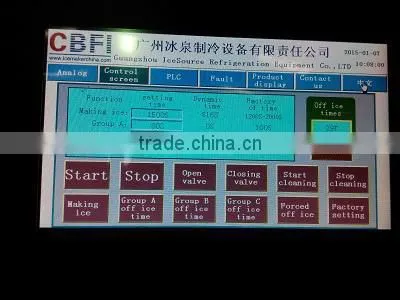

3.Touch Screen
1. Easy to operate like the smartphone
2. Display the machine running situation clearly
3. Control your machine to start or stop by your phone.

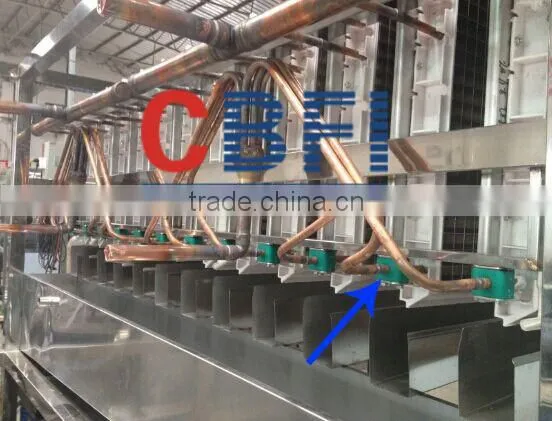

4.Vibration-proof Structure
1. Fixed the copper tube
2. Protect and prevent the copper pipe vibration. Fix the copper tube and evaporator on the
machine framework ,avoids damaging during transport and compressor running.
5.Circulating water pump : NANFANG
1.Well-known brands,China Nanfang Pump(CNP).
2. 304 stainless steel,ensure ice healthy to eat.
3. More durable than plastic pump .

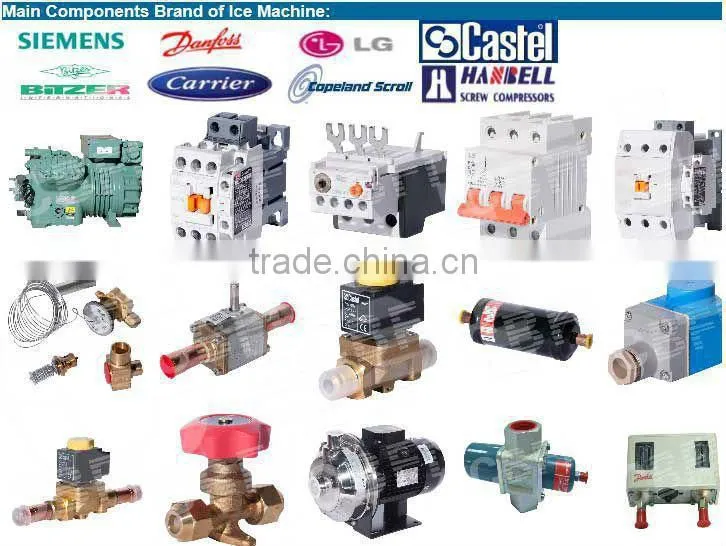

6. World famous brand accessories

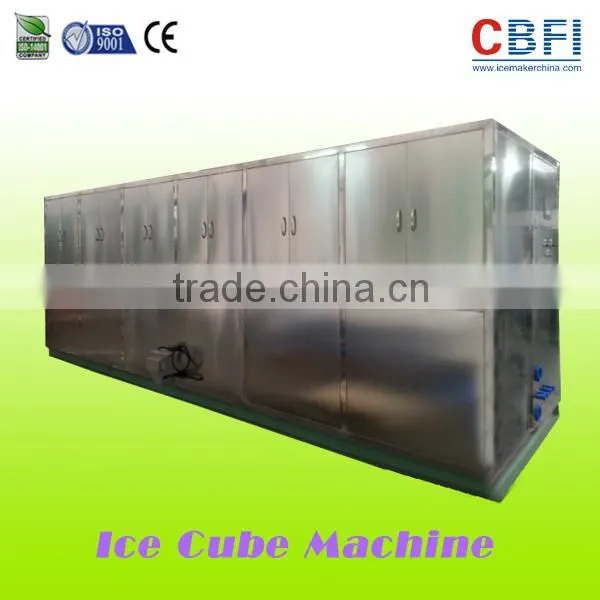

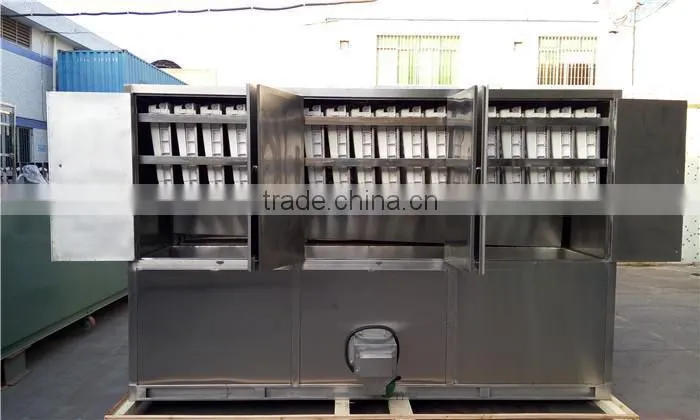

Cube ice machine in stainless steel 304 (this is 5 tons cube ice machine as your reference)
Packing:
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide.
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
Guangzhou Icesource Refrigeration Equipment Co., LTD is specialized in the research and development of
ice machines and cold room.
1. Our factory is located in Guangzhou city, China. It is near the Baiyun International Airport
and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is
convenient for loadand transport goods and for customers to come to visit our factory.
2. We started in researching, developing and selling all kinds of ice machines since 2004.
3. Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice
machine, flake ice machine and cold room.
Welcome more and more customers come to us, visit our factory and give us suggestion, let us make progress, thanks!
