Cube Ice Plant

Name: Cube Ice Plant
Brand: CBFI
SKU: 114171911
Availability: InStock

Guangzhou Icesource Refrigeration Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CBFI

Model Number:

CV series

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CBFI

Model Number CV series

Type Ice Machine

Style Single-temperature

Certification CE

Capacity 1000kg to 20000kg

Temperature 26 degree

Climate Type Tropical temperature

Refrigerant R22/R404a

Specifications

Cube Ice Plant
1.for 2008 Beijing Olympic Games.
2.capacity 2tons to20tons
3.ice size 22mmx22mmx22mm,29mmx29mmx22mm
4.edible

Cube Ice Plant:

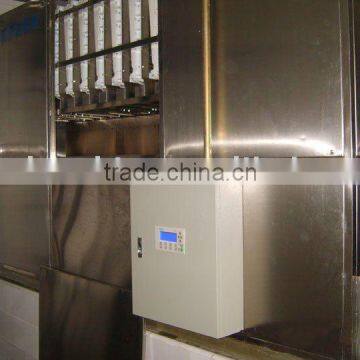

Cube ice machine CV5000:2008 Beijing Olympic Games Ice Cube Machine Operating Site, each set daily capacity is 5000kg.

Cube ice is widely adopt in hotel, bars, banqueting hall, western restaurant, fast food restaurant, CVS( convenience store), cold drinking shop.

1.Reasonable design for the structure, save space, easy to install

2.Greatly save energy, only 80-85kw powers is consumed too produce one ton ice.

3.Ice dropping automatically, no ice dropping auxiliary equipment, lower the error rate.

4.ice outlet, ice outgoing automatically, no need taking ice by hand and ensure the ice clean and sanitary.

Ice cube machine models for your reference:

Model	Capacity	Compressor Power	Diameter of Cooled Water Pipes	Refer Figure Dimensions
No.	ton/day	KW	IN	L (mm)	W (mm)	H (mm)
CV1600	1.6	6.37	1-1/2"	1600	1400	1700
CV2000	2.0	8.66	2"	1600	1630	1840
CV3000	3.0	10.83	2"	1980	1630	1840
CV5000	5.0	19.61	2-1/2"	2890	1780	1840
CV8000	8.0	30.92	2-1/2"	4620	1880	1840
CV10000	10.0	37.84	3"	5730	1880	2100
CV15000	15.0	57.45	5"	8200	1910	2100
CV20000	20.0	74.30	5"	10600	1910	2100
