Specifications
Container block ice machine:- Easy to operate;
- Convenient transportation and installation;
- Energy saving.and High.
Container block ice machine
Gerneral info about CBFI Containerized ice block machine:
Containerized ice block machine is an integrity onboard machine fits for moblie supply of water. Machine designes multiple-hole supply water spray head and special crane (for taking out block ice), which is very convenient to operate and saves manpower. Specializd process of the container, which is inreasing the heat preservation, anti-corrosion and anti-slide performance.
Quick info about CBFI Containerized ice block machine:
Type: |
Containerized Ice Block Machine |
Power Supply: |
380V/3Phase/50Hz,220V/3Phase/50Hz,415V/3Phase/50Hz |
Model No: |
CBFI – MBC100 |
Capacity: |
10Ts/day |
Cooling way: |
Water-cooling |
Compressor: |
Bitzer/Copeland/Hanbell |
Refrigerant: |
R22/R404A |
Dimension: |
2500mmx1200mmx2000mm |
Weight: |
1700kg |
Features of CBFI Containerized ice block machine:
- Containerized ice block machine is designed in 20feet or 40feet container, daily capacity varies from 1ton to 20tons.
- Weight of block ice: 10kg, 15kg, 20kg, 25kg...
- Ice thickness is adjustable.
- Applying compressor, with efficient evaporator for middle and low temperature.
Models of CBFI Containerized ice block machine:
Model |
Capacity |
Compress Power |
Motor Power |
Voltage |
Frequency |
Outer Dimension(mm) |
||
No. |
Ton/24h |
KW |
KW |
V |
Hz |
L×W×H |
||
MB10 |
1.0 |
3.8 |
0.55 |
230/380/415 |
50/60 |
1200 |
1000 |
600 |
MB15 |
1.5 |
5.6 |
0.75 |
230/380/415 |
50/60 |
1600 |
1200 |
800 |
MB20 |
2.0 |
7.5 |
1.5 |
230/380/415 |
50/60 |
1800 |
1200 |
800 |
MB30 |
3.0 |
11.3 |
1.5 |
230/380/415 |
50/60 |
2100 |
1200 |
1000 |
MB40 |
4.0 |
15.0 |
1.5*2 |
230/380/415 |
50/60 |
3000 |
1470 |
1000 |
MB50 |
5.0 |
18.8 |
1.5*2 |
230/380/415 |
50/60 |
4200 |
1470 |
1200 |
MB60 |
6.0 |
22.5 |
1.5*2 |
230/380/415 |
50/60 |
4800 |
1470 |
1200 |
MB80 |
8.0 |
30.0 |
2.0*2 |
230/380/415 |
50/60 |
5700 |
1470 |
1200 |
MB100 |
10.0 |
37.5 |
2.0*2 |
230/380/415 |
50/60 |
7000 |
1680 |
1200 |
MB120 |
12.0 |
45.0 |
2.5*2 |
230/380/415 |
50/60 |
8500 |
1680 |
1200 |
MB150 |
15.0 |
56.3 |
3.0*2 |
230/380/415 |
50/60 |
9800 |
1680 |
1200 |
MB200 |
20.0 |
56.0 |
5.5*2 |
230/380/415 |
50/60 |
11800 |
1680 |
1500 |
The frontview of CBFI 10 tons Containerized ice block machine
The electric box of CBFI 10 tons Containerized ice block machine

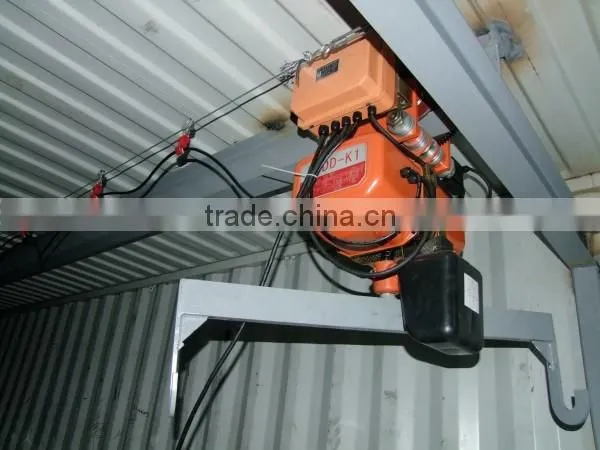

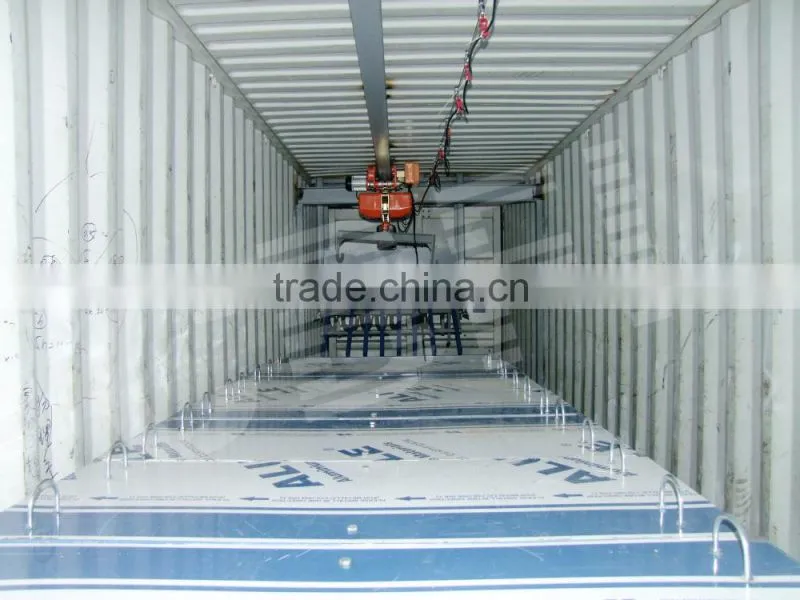

The real effect of crane

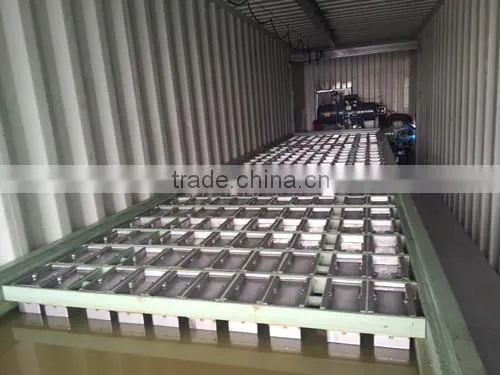

Ice moulds of CBFI Containized ice block machine is putting down the saltwater tank

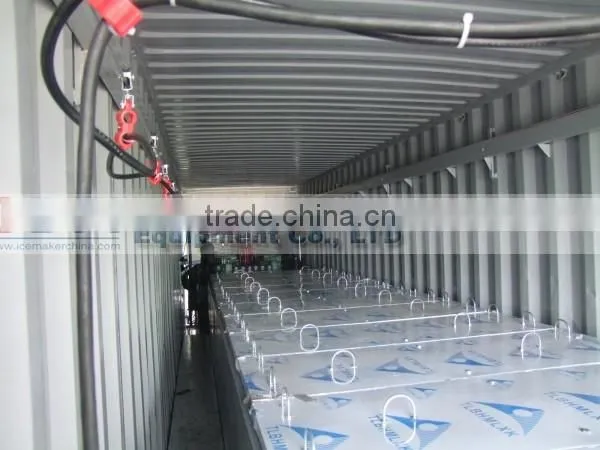

The filling water pipes and dump ice shelf

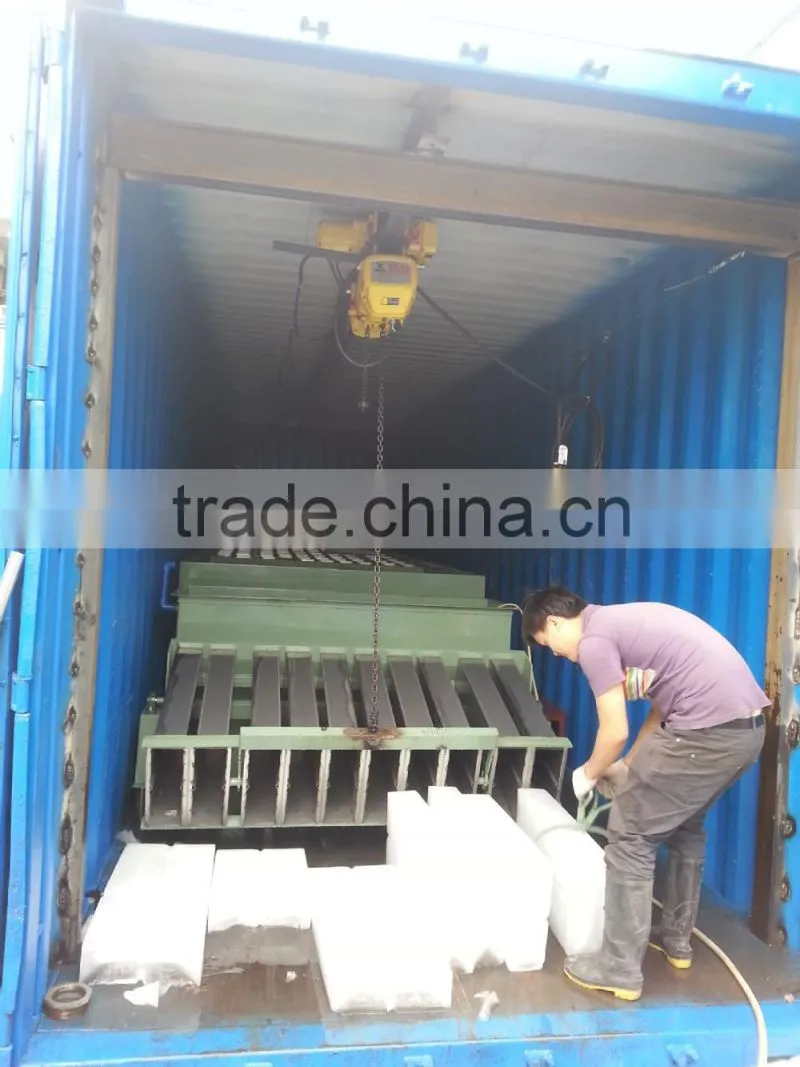

Taking out the block ice
1. Standard wooden case for packing the main frame of ice block machine, containerized design no need packing;
2. Machine will be installed completely and tested strictly in our factory before shipping;
3. Completely machine: ice machine, cooling tower, water pumps, water pipes, water pipe fittings;
4. Customer only need prepare power and water for running the machine;
5. All required components for installing the machine will be provided.
CBFI , 10 years experience in ice making machine, 2 overseas subsidiaries, two patented technologies and over 1000 customers in more than 40 countries. Products cover most of ice making machine while the featured ones are all well-received over the seas.
We specialize in research, design, produce and sell large production of ice block machine, ice cube machine, ice plate machine, ice tube machine and relative machines and its accessory such as cold room, crane, ice crushing machine, etc.
With tenet of “painstakingly created high quality products and wholeheartedly service” and principle of “emphasis on social and economic benefits ”, we gained two patented technologies of flat-plate heat exchange and circulating heat gas for ice dropping, which greatly improve the stability and safety of our ice machine and ensure our machine prominently energy saving when comparing with other products on the market.
Certification:
