Specifications
Industrial Ice Block Making MachineCompressor:Hanbell/Bitzer/Copeland
Ice block can:stainless steel 304
Block ice:20kg,25kg.

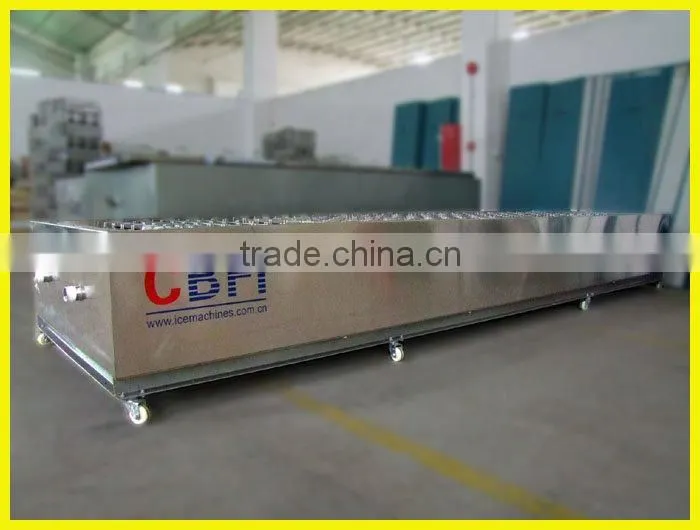

large block ice crusher machine in cheap price :
Ice block machine for produce big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg......
It is big ice, so can keep for long time. For some country, specialy, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
Daily capacity of ice block machine can be from 1ton to 100tons.
Ice block making machine models for your reference:
Item No. |
Production |
Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
MB10 |
1.0 |
3.92 |
2.2 |
1.5 |
0.37 |
2820*1410*965 |
900 |
MB20 |
2.0 |
7.11 |
2.2 |
1.5 |
0.55 |
1700*750*1500 2220*1440*1065 |
1100 |
MB30 |
3.0 |
9.68 |
2.2 |
2.2 |
0.75 |
1800*750*1500 3000*1380*1065 |
1300 |
MB40 |
5.0 |
12.56 |
4 |
2.2 |
0.75 |
2000*800*1600 3110*1470*1075 |
1500 |
MB50 |
8.0 |
14.6 |
4 |
2.2 |
1.5 |
2000*800*1600 4560*1380*1150 |
1700 |
MB60 |
6.0 |
18.84 |
4 |
2.2 |
1.5 |
2000*800*1600 5340*1380*1150 |
1900 |
MB80 |
8.0 |
21.30 |
4 |
4 |
1.5 |
2000*1000*1800 7720*1950*1150 |
2300 |
MB100 |
10.0 |
26.60 |
5.5 |
4 |
1.5 |
2500*1200*2000 6360*3710*1565 |
2700 |
MB150 |
15.0 |
48.30 |
7.5 |
5.5 |
2.2 |
3100*1200*2000 9280*2260*1560 |
3700 |
MB200 |
20.0 |
63 |
7.5 |
7.5 |
3.75 |
3500*1500*2200 11560*4200*1565 |
4700 |
MB250 |
25.0 |
68.7 |
7.5 |
7.5 |
3.75 |
3500*1500*2200 12080*2260*1560 |
5700 |
MB300 |
30.0 |
76.4 |
7.5 |
7.5 |
5.5 |
3500*1500*2200 11560*5430*1600 |
6700 |
MB400 |
40.0 |
126 |
7.5 |
7.5 |
7.5 |
2*3500*1300*2200 11560*7080*1600 |
8700 |
MB500 |
50.0 |
137.4 |
7.5 |
7.5 |
7.5 |
2*3500*1300*2200 14170*7080*1600 |
10700 |
MB1000 |
100.0 |
274.8 |
15 |
17 |
15 |
4*3500*1300*2200 12000*13500*1450 |
21400 |
Note: Dimension of machine for reference only, its real size is after final confirm size of each ice block and quantity of ice block cans. | |||||||
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.
Note: the size of machine for reference only, for different block ice size design, machine's size will be different.
