R22/R404a Refrigerant Ice Block Making Machine

R22/R404a Refrigerant Ice Block Making Machine thumbnail-1
R22/R404a Refrigerant Ice Block Making Machine thumbnail-2
R22/R404a Refrigerant Ice Block Making Machine thumbnail-3
R22/R404a Refrigerant Ice Block Making Machine thumbnail-4
R22/R404a Refrigerant Ice Block Making Machine photo-1
R22/R404a Refrigerant Ice Block Making Machine photo-2
R22/R404a Refrigerant Ice Block Making Machine photo-3
R22/R404a Refrigerant Ice Block Making Machine photo-4
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
1ton~100tons
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Icesource Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity 1ton~100tons
Place of Origin Guangdong, China
Brand Name CBFI
Model Number MB10
Ice Shape Other, Block
Voltage 380V/3phase/5Hz
Power(W) 3.92kw
Dimension(L*W*H) 2820*1410*965mm
Weight 900kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



R22/R404a refrigerant ice block making machineGuangzhou CBFI block ice making machine for sale





Product Description

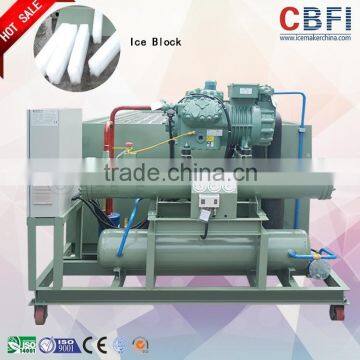

 MB Series Ice Block Making machine



MB series of ice block machine is a new type machine with high efficiency units,which mainly aiming at the Africa,Middle East and Oceania. This machinery units adopts the integrated design,easy to install,just need connect the power. The ice-making tank adpt the Polyurethane foam technology,it have good viscosity performance,avoiding the defects of foam uneven. What's more,it's designed according to the theoretic fluid,so the flow is table.

Ice block machine application: 1.ice factory of the ports, docks;
                      2.fresh aquatic products;
                      oling;
                      4.long distance transportation;
                      5.fishery;
                      6.food preservation;
                      7.special areas of cooling;
                      8.ice sculpture.

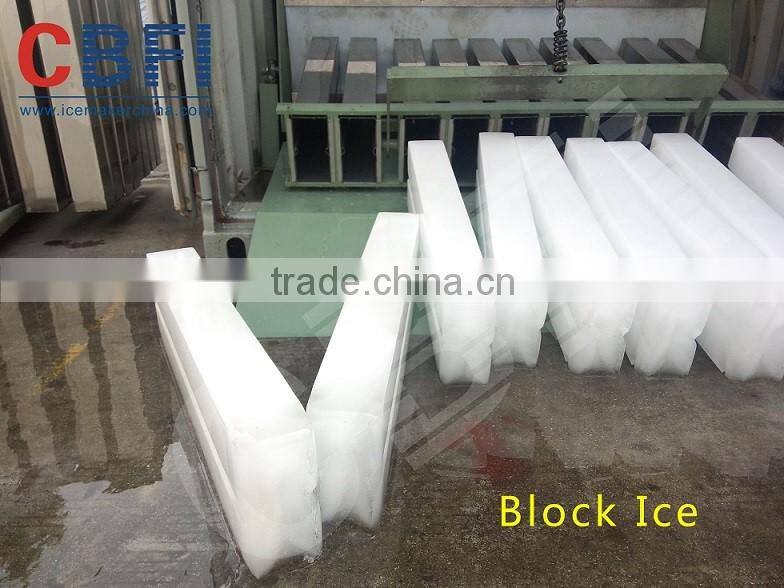

Block ice standard: Normaly have 5kg(Size: 150×80×500mm);10kg(Size: 100×200×600mm); 20kg(Size: 100×300/260×850mm); 25kg(Size: 120×300/260×860); 30kg(Size: 120×300/260×960mm);



MB Series Ice Block Maker Machine Models for Reference



Item No.

Production

Compressor Rated Power

Circulating Water Pump Power

Cooling Water Pump Power

Cooling Fan Power



Machine

Dimension



Weight of Machine



Ton/24H

KW

KW

KW

KW

L*W*H(MM)

KG

MB10

1.0

3.92

2.2

1.5

0.37

2820*1410*965

900

MB20

2.0

 7.11 2.2 1.5 0.55

1700*750*1500

2220*1440*1065

 1100

MB30

 3.0  9.68  2.2  2.2  0.75

 1800*750*1500

3000*1380*1065

1300

MB40

4.0

  12.56  4  2.2  0.75

 2000*800*1600

3110*1470*1075

1500

MB50

  5.0  14.6  4  2.2  1.5

 2000*800*1600

4560*1380*1150

1700

MB60

  6.0 18.84 4   2.2  1.5

 2000*800*1600

5340*1380*1150

1900

MB80

 8.0   21.30  4  4  1.5

2000*1000*1800

7720*1950*1150

2300
MB100 10.0 26.60 5.5 4 1.5

2500*1200*2000

6360*3710*1565

 2700

MB150

 15.0   48.30  7.5  5.5  2.2

3100*1200*2000

9280*2260*1560

3700
MB200  20.0  63.0  7.5  7.5  3.75

 3500*1500*2200

11560*4200*1565

 4700
MB250 25.0   68.7  7.5  7.5  3.75

 3500*1500*2200

12080*2260*1560

 5700
MB300 30.0   76.4  7.5  15  5.5

 3500*1500*2200

11560*7080*1600

  6700
MB400  40.0  126  15  15  7.5

2*3500*1300*2200

11560*7080*1600

  8700
MB500  50.0  137.4  15  15  7.5

2*3500*1300*2000

14170*7080*1600

  10700
MB1000  100.0  274.8 30   30  15

4*3500*1300*2200

12000*13500*1450

  21400





Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a

little change according to change of water temperature and ambient temperature.





MB Series Block Ice Maker Machine Features



1. The temperature of ice is low and it can reach 10celsius belew zero.



2. Because of the block structure,it is convenient for store.



3. The integrity design and installation convenience,it can be used if you install electricity and water.



4. The principle is simple and the maintenance and repair is easy.



5. The ice-making tank adopt the Polyurethane foam technology. It promises a good hest insulation.



6. It can be made into different size of ice block machine to meet different currents' need to ice.



7. The large ice block machine use the crane to take ice,so the work quantity is small.



8. There are 1ton to 100tons production per day models to choose.

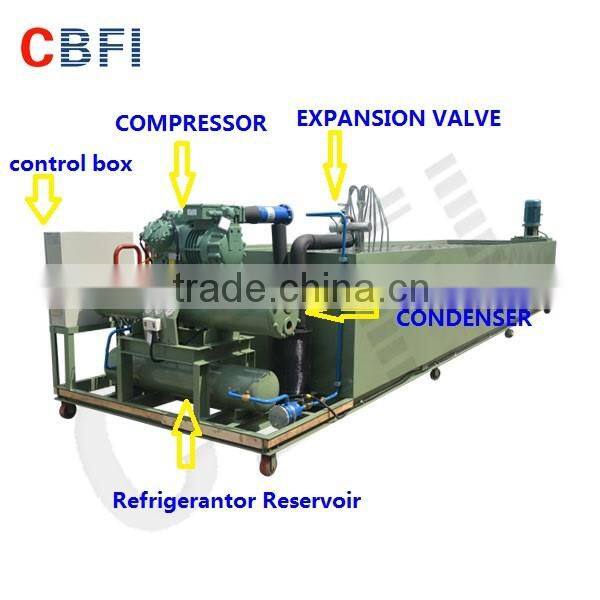

MB Series Block Ice Maker Machine Pictures

 R22/R404a refrigerant ice block making machineR22/R404a refrigerant ice block making machine

Ice block machine 3D drawing

 R22/R404a refrigerant ice block making machine

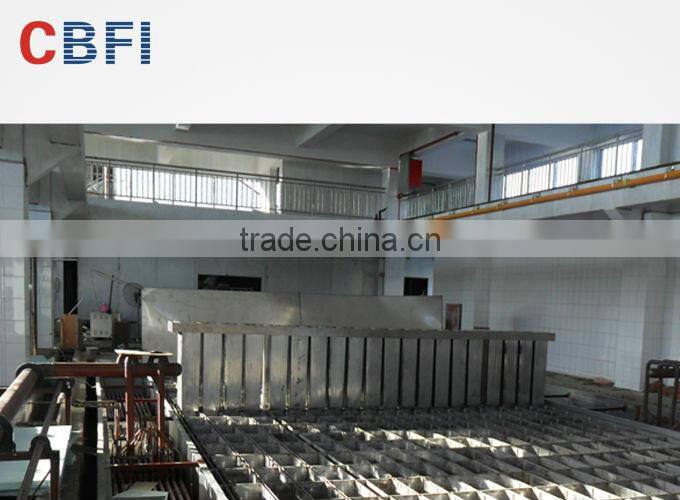

8ton ice block machine in our facotry





R22/R404a refrigerant ice block making machineR22/R404a refrigerant ice block making machine

R22/R404a refrigerant ice block making machine

Packaging & Shipping

 R22/R404a refrigerant ice block making machine







Our Services



Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by our engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.



Guarantee Period: During 12 months after selling, maintenance and parts free of charge
