Specifications
Full automatic block making machine:- Convenient transportation and installation;
- Energy saving.and High-efficiency;
- CE.
Full automatic block making machine
General introduction of CBFI Full automatic block making machine:
Other than traditional brine system block ice machine, CBFI full automatic ice block making machine has following advantages when compared to other traditional brine system block ice machines:
- Biggest feature: no need salty water or other cooling medium during the ice-making period, ans the ice will be dropped into the special ice sontact convey device from the ice moulds, which ensures the ice sanitary and meet the edible standard;
- Faster ice dumping: 25-30 minutes, once ice falling, full automatic ice block making machine is 1.5 times faster than the brine system ice.
- Convenient ice fetching: Ice will be dropped automatically on a special ice contact convey device from the ice moulds, that is, no need crane or hoist equipment to fetch block ice, which save cost and manpower.
Applications:
1. Ice factory at ports and docks.
2. Fresh preservation and cooling of aquatic products
3. Fresh preservation of aquatic products and foods during line haul.
4. Temperature reduction and cooling in special fields.
5. Ice sculpture.
6. Edible ice.
Quick info about CBFI Full automatic block ice machine:
Type: |
Full automatic block ice machine |
Power Supply: |
380V/3Phase/50Hz,220V/3Phase/50Hz,415V/3Phase/50Hz |
Model No: |
CBFI – ABI 50 |
Capacity: |
5 Ts/day |
Cooling way: |
Water-cooling |
Compressor: |
Bitzer/Carrier/Hanbell |
Refrigerant: |
R22/R404A |
Dimension: |
5800*2200*2200 |
Weight: |
2000kg |
Models of CBFI Full automatic block ice machine:
Model |
Capacity |
Compress Power |
Motor Power |
Voltage |
Frequency |
Outer Dimension(mm) |
||
No. |
Ton/24h |
KW |
KW |
V |
Hz |
L×W×H |
||
MB10 |
1.0 |
3.8 |
0.55 |
230/380/415 |
50/60 |
1200 |
1000 |
600 |
MB15 |
1.5 |
5.6 |
0.75 |
230/380/415 |
50/60 |
1600 |
1200 |
800 |
MB20 |
2.0 |
7.5 |
1.5 |
230/380/415 |
50/60 |
1800 |
1200 |
800 |
MB30 |
3.0 |
11.3 |
1.5 |
230/380/415 |
50/60 |
2100 |
1200 |
1000 |
MB40 |
4.0 |
15.0 |
1.5*2 |
230/380/415 |
50/60 |
3000 |
1470 |
1000 |
MB50 |
5.0 |
18.8 |
1.5*2 |
230/380/415 |
50/60 |
4200 |
1470 |
1200 |
MB60 |
6.0 |
22.5 |
1.5*2 |
230/380/415 |
50/60 |
4800 |
1470 |
1200 |
MB80 |
8.0 |
30.0 |
2.0*2 |
230/380/415 |
50/60 |
5700 |
1470 |
1200 |
MB100 |
10.0 |
37.5 |
2.0*2 |
230/380/415 |
50/60 |
7000 |
1680 |
1200 |
MB120 |
12.0 |
45.0 |
2.5*2 |
230/380/415 |
50/60 |
8500 |
1680 |
1200 |
MB150 |
15.0 |
56.3 |
3.0*2 |
230/380/415 |
50/60 |
9800 |
1680 |
1200 |
MB200 |
20.0 |
56.0 |
5.5*2 |
230/380/415 |
50/60 |
11800 |
1680 |
1500 |

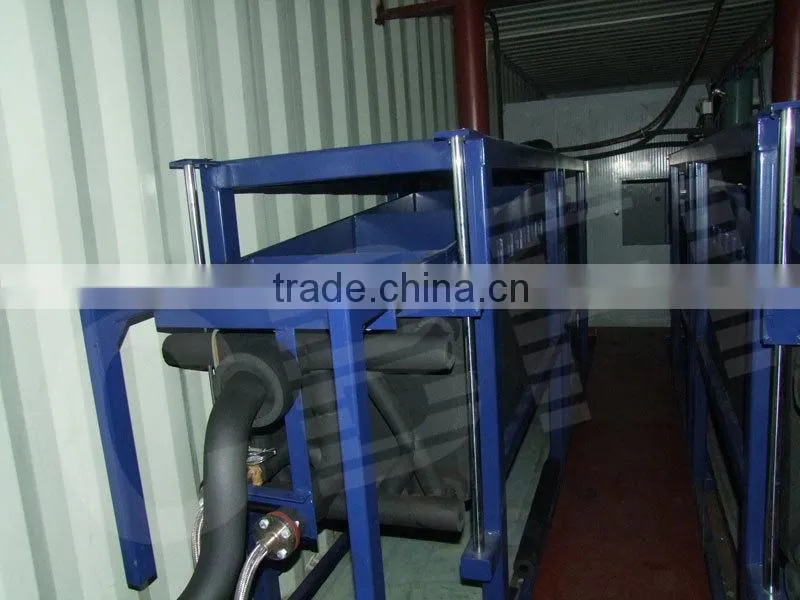

The front view of CBFI Full automatic block ice machie

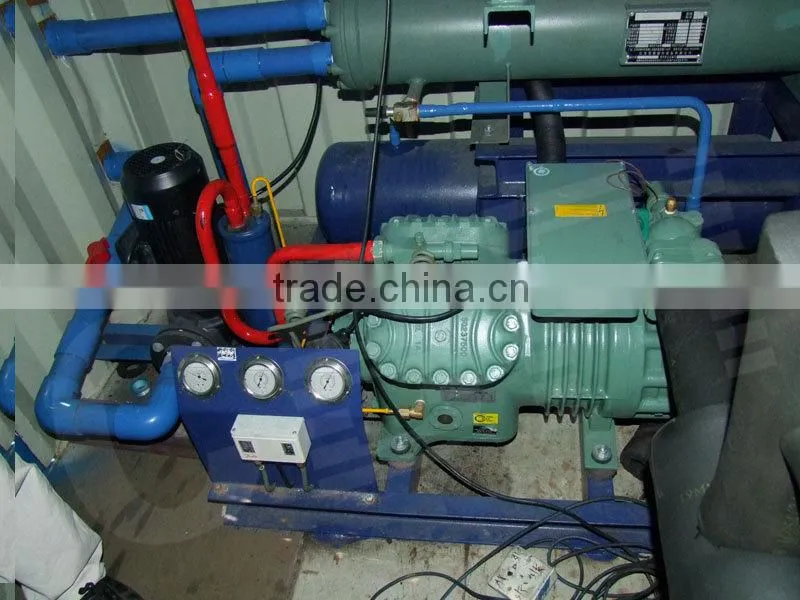

The first-class brand compressor: BITZER

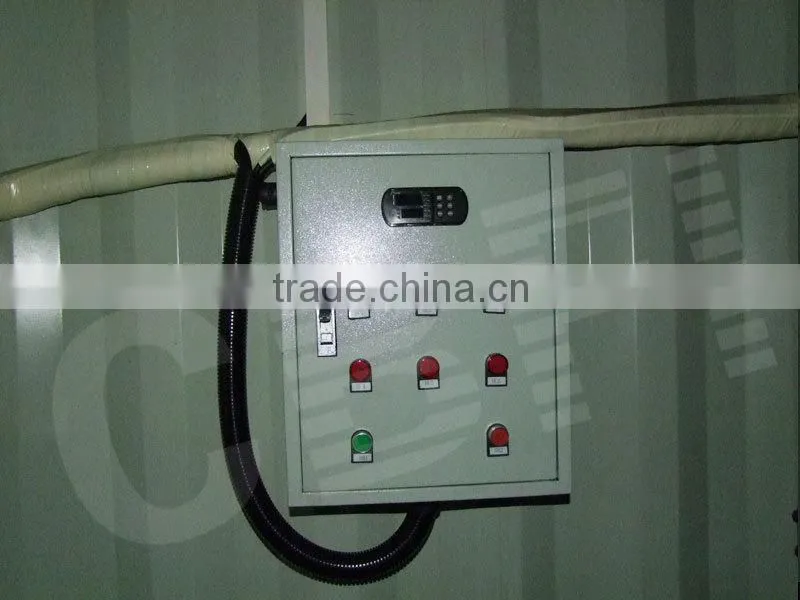

Electric box

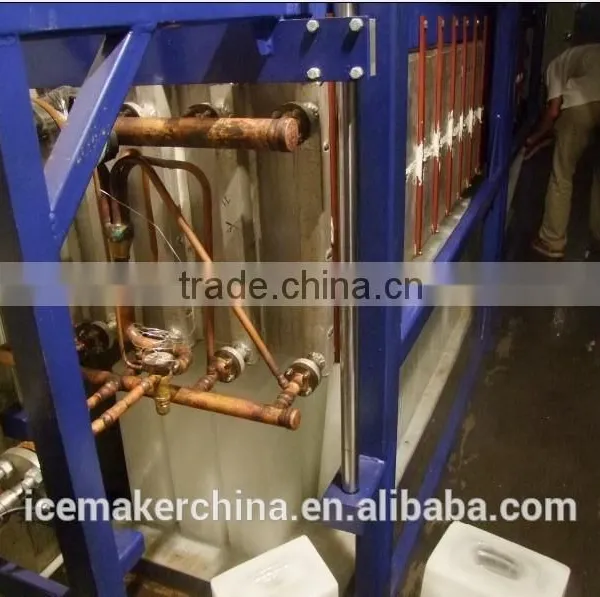

Fully dropping the block ice from the ice moulds

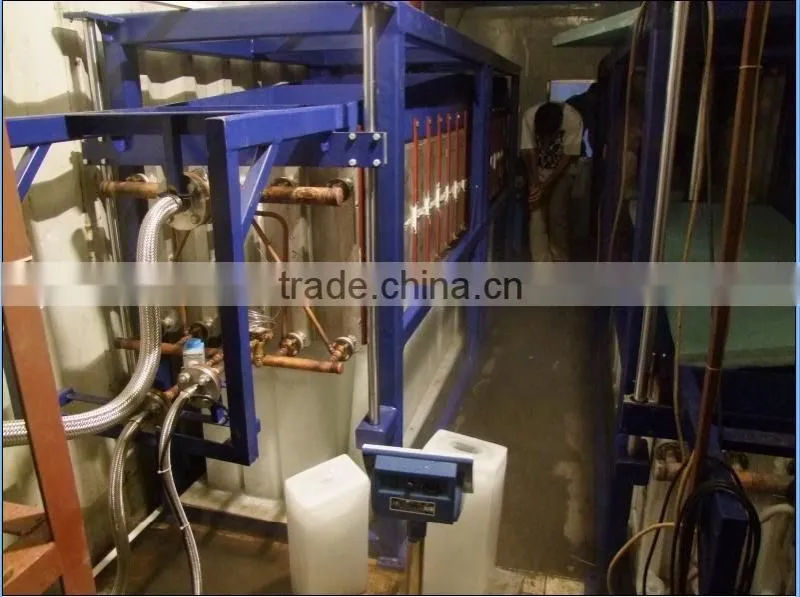

Block ice for your reference

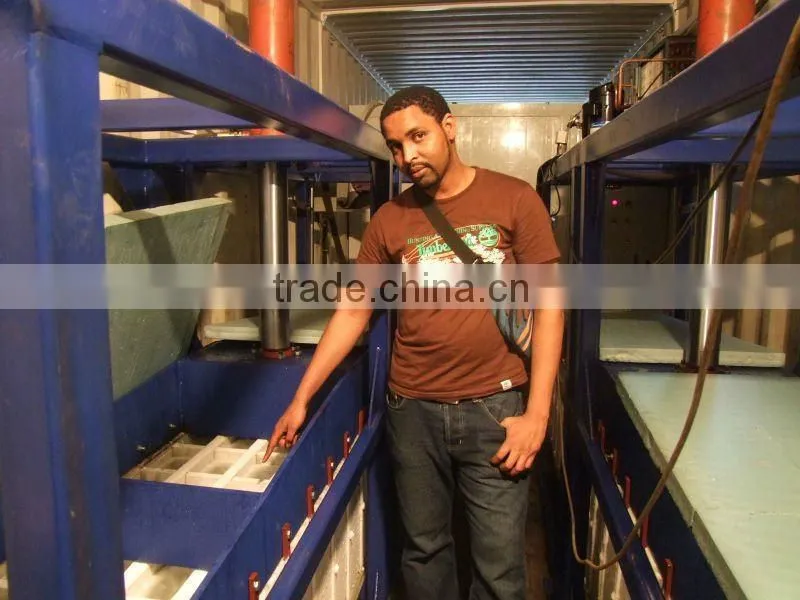

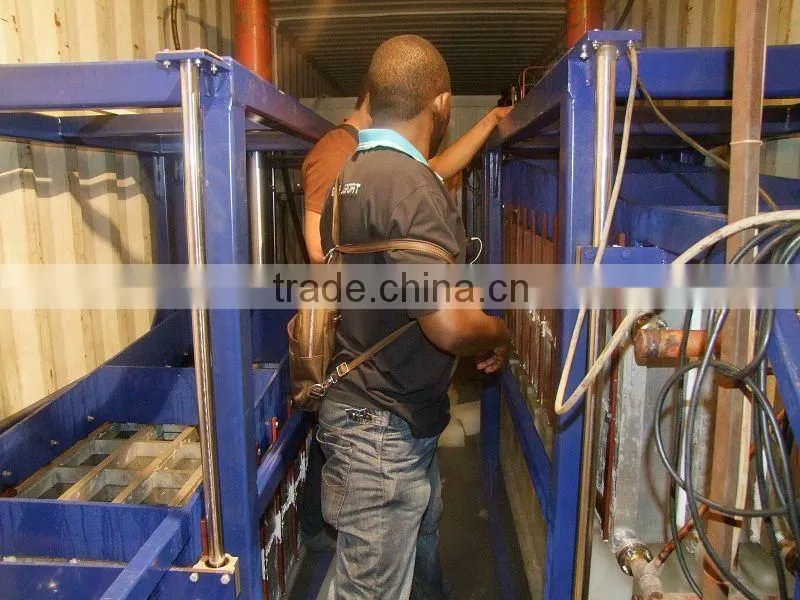

CBFI customer
1. Standard wooden case for packing the main frame of ice block machine, containerized design no need packing;
2. Machine will be installed completely and tested strictly in our factory before shipping;
3. Completely machine: ice machine, cooling tower, water pumps, water pipes, water pipe fittings;
4. Customer only need prepare power and water for running the machine;
5. All required components for installing the machine will be provided.
CBFI , 10 years experience in ice making machine, 2 overseas subsidiaries, two patented technologies and over 1000 customers in more than 40 countries. Products cover most of ice making machine while the featured ones are all well-received over the seas.
We specialize in research, design, produce and sell large production of ice block machine, ice cube machine, ice plate machine, ice tube machine and relative machines and its accessory such as cold room, crane, ice crushing machine, etc.
With tenet of “painstakingly created high quality products and wholeheartedly service” and principle of “emphasis on social and economic benefits ”, we gained two patented technologies of flat-plate heat exchange and circulating heat gas for ice dropping, which greatly improve the stability and safety of our ice machine and ensure our machine prominently energy saving when comparing with other products on the market.
Certification:
