automatic aluminum ice block maker 5 tons per day

Specifications

5 tons aluminum ice block maker:
1.CE approved
2.High quality Bitzer compressor
3. Direct refrigeration and saitary edible ic



 Aluminum Ice Block Maker



Other than traditional brine system block ice machine, Guangzhou Icesource can make automatic ice block making machines. It has the following advantages compared to traditional brine system block ice machines:

1. Application: The biggest feature of automatic ice block making machines is that there is no need salt water or other refrigerating medium in the process of ice freezing. And the ice is more sanitary and can be edible for human directly. But the traditional brine system block ice machine use brine as refrigerating medium and it is not safe to human eating.
2. Material: The material of automatic ice block making machines is aluminum alloy plate. The whole process of ice forming is sanitary and clean and it can reach the edible standards on the condition that the supplying water is edible.
3. Faster ice falling: On ice falling, automatic ice block making machines is 1.5 times faster than brine system, ice can fall off within 25-30 minutes.

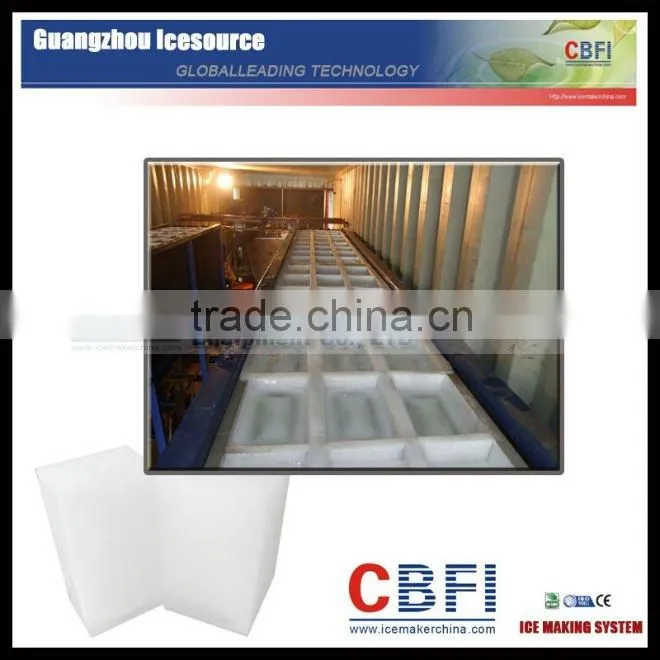

4. Convenient ice fetching: When ice block formed, it will automatically drop on a special ice contact convey device from the ice molds. It needn't crane or other hoist equipment to fetch ice. So it reduces the investment cost and save more space.





Automatic Ice block making machines model:

Model	Capacity	Compress Power	Motor Power	Voltage	Frequency	Outer Dimension(mm)
No.	Ton/24h	KW	KW	V	Hz	L×W×H
MB10	1.0	3.8	0.55	230/380/415	50/60	1200	1000	600
MB15	1.5	5.6	0.75	230/380/415	50/60	1600	1200	800
MB20	2.0	7.5	1.5	230/380/415	50/60	1800	1200	800
MB30	3.0	11.3	1.5	230/380/415	50/60	2100	1200	1000
MB40	4.0	15.0	1.5*2	230/380/415	50/60	3000	1470	1000
MB50	5.0	18.8	1.5*2	230/380/415	50/60	4200	1470	1200
MB60	6.0	22.5	1.5*2	230/380/415	50/60	4800	1470	1200
MB80	8.0	30.0	2.0*2	230/380/415	50/60	5700	1470	1200
MB100	10.0	37.5	2.0*2	230/380/415	50/60	7000	1680	1200
MB120	12.0	45.0	2.5*2	230/380/415	50/60	8500	1680	1200
MB150	15.0	56.3	3.0*2	230/380/415	50/60	9800	1680	1200
MB200	20.0	56.0	5.5*2	230/380/415	50/60	11800	1680	1500
