Direct Evaporator Ice Block Factory Without Salt in Guangzhou

Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-1
Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-2
Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-3
Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-4
Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-5
Direct Evaporator Ice Block Factory Without Salt in Guangzhou photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
1-10tons
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 1-10tons
Place of Origin Guangdong, China
Brand Name CBFI
Model Number ABI Series
Ice Shape Ice Block
Voltage 380V/50Hz/3Phase or 220V/60Hz/3Phase or different
Power(W) 3.6kw
Dimension(L*W*H) 2500mmx1300mmx2200mm
Weight 900kg
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ice factory
1.20 or 40 feet container to load
2.Automatic crane and hoist equipment to operate.
3.Ice block design 5kg,10kg..

Direct evaporator ice block factory without salt in Guangzhou

 Ice block factory



1. Edible ice block machine the biggest features is that the large-scale ice blocks no need salty water and other cooling medium during the freezing period.



2. When after the ice formed, it will dropping into the special ice contact convey device from the ice models, the whole course of ice forming is sanitary, clean, it can reach the edible request.



3. the machine adopt the cycle heat has harvesting ice technology and direct heat expansion,   heating exchange technology, making the product performance become more steady, it has broken the question of the large-scale can’t for eating



4.The ice machine can be made into the containerized  type or module type,easy operation, and saving space.



Direct evaporator ice block factory without salt in Guangzhou





Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou

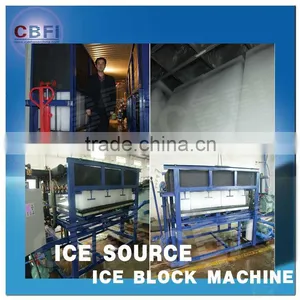

Edible automatic ice block making machine testing in the factory

Direct evaporator ice block factory without salt in Guangzhou



                        Guangzhou CBFI ice machine factory



Automatic Ice Block Machine Model



Item No.

Production

Compressor

Rated Power

Water Pump Power

Machine

Dimension



Ton/24H

KW

KW

L*W*H

ABI 10

1.0

3.92

0.37

1100*1400*1850

ABI 20

    2.0

7.11

0.37

1200*1400*2300

ABI 30

3.0

9.66

0.55

1100*1700*2000

ABI 50

5.0

14.6

0.55

1500*1500*3500

ABI 80

8.0

21.9

1.10

1500*2000*3000

ABI 100

10.0

27.0

1.10

1500*2000*3500

ABI 125

12.5

38.0

1.50

1500*2000*4000

ABI 150

15.0

50.4

2.25

1500*2000*6000

ABI 200

20.0

65.8

3.00

1500*2000*7000





































Automatic Ice Block Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.



 Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou

                                        Bitzer compressor



Direct evaporator ice block factory without salt in Guangzhou

                                                                       Electronic box

Direct evaporator ice block factory without salt in Guangzhou

                          Danmark Danfoss Expansion valve



Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou



Direct evaporator ice block factory without salt in Guangzhou

                                                  The cold room to store ice block



Direct evaporator ice block factory without salt in Guangzhou



Before shipping, we test our goods and check all parts.



Welcom to purchase our products!
