Home > Products > DC DC Converter - step down > dc Step Down Converter 12V/24V to 5V 10A 50Wmax for LED Display Waterproof

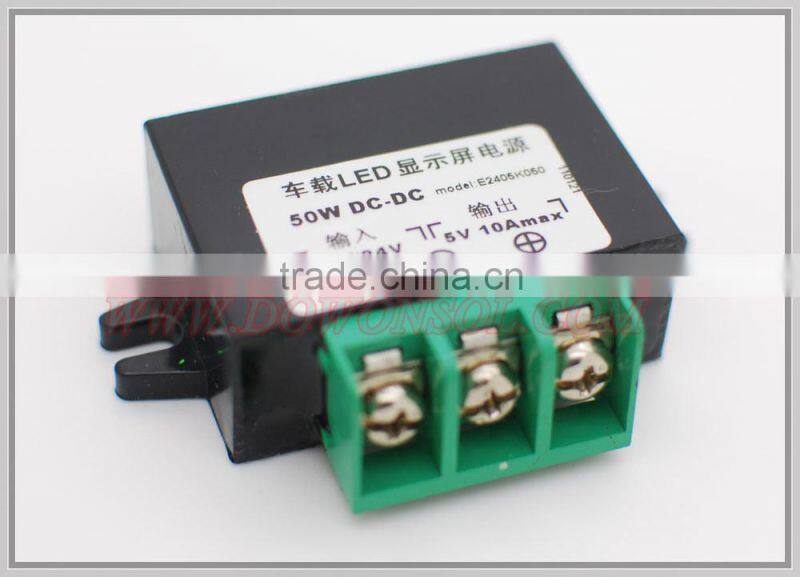

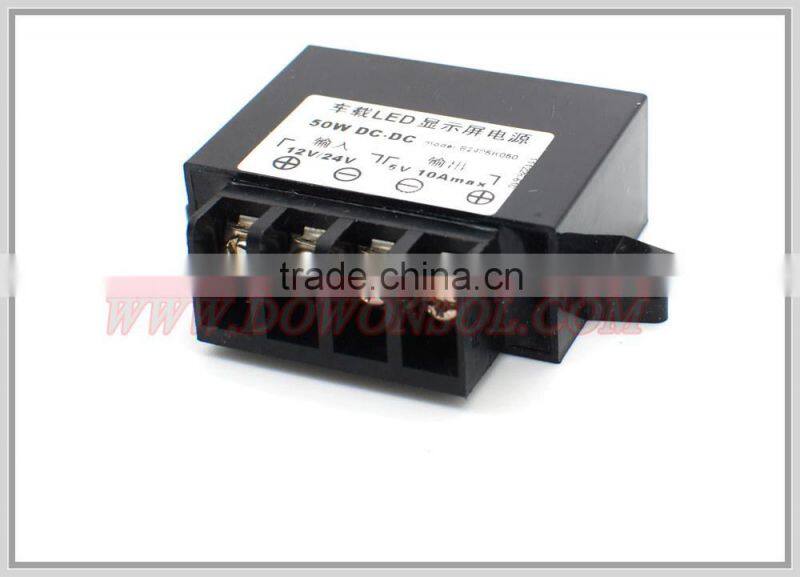

dc Step Down Converter 12V/24V to 5V 10A 50Wmax for LED Display Waterproof
- Guangzhou
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | dowonsol | |
| Model Number | J122405G050S | Output Power | 1 - 50W | |
| Output Type | Single | Size | 48*32*18mm | |
| Weight | 80g | Input Voltage | 12V/24V | |
| Output Voltage | 5V | Type | DC/DC Converters | |
| Output Frequency | - | Output Current | 5A max |
Product Description
dc step down converter 12V/24V to 5V 10A 50Wmax for LED display Waterproof
DC-DC Converter (12V/24V to 5V 10Amax 50Wmax)
Features:
Item no. | J122405C50S |
Output power(W) | 50W |
Input voltage(V) | 12-24V DC |
Output voltage(V) | 5V DC |
Output Type: | Single |
Input:
Input voltage range(V) | 10-36V DC |
Start voltage(V) | 10V DC 100% load |
Input Reverse connection protection | No |
Input low voltage protection(V) | ≤7.9VDC output off, ≥ 10V DC Auto recovery. |
No load (W) | < 1W |
Efficiency | 91% |
Output:
Output voltage range(V) | 5.0V DC |
Output current(A) | 10A |
Voltage adjustable | 1% |
Load adjustable | 3% |
mvp-p | 100mv, out connect 22UF capacitor ESR<0.1Ω 100KHZ |
Protection:
Over current | Rated output condition, more than 120% of rated current, over-current protection will work, Current limit voltage drop, when over-current is off, auto recovery. |
Short circuit | if the current =>12A, output voltage will be 0V and auto recovery |
Input Reverse connection | No |
Isolation | Non-isolated |
Waterproof | Waterproof IP68 |
Other:

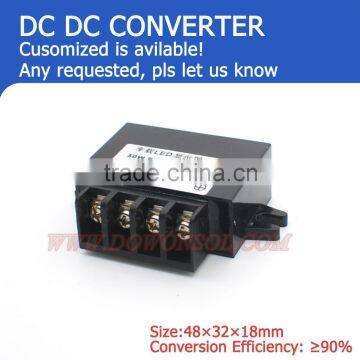

Dimension | 48*32*18mm, net weight: 80g |
Cooler | natural cooling |
Rated temperature ℃ | 45℃ |
Operating temperature | -40℃-80℃ |
Probability of reliability | >100000h |
Install:
Input positive Red; Input negative Black; Output positive Yellow; Output negative Black.
Length of the cable: about 17cm
| Product range | Product model | V-in | V-out | I-out | Efficiency | Weight(g) | Size (LxWxH) |
| 50W DC Converter | J48D5K50Z | 48V | 5v | 10A | Higher than 90% | 280g | 74X74X32mm |
| 60W DC Converter | J48D5K60Z | 48v | 12v | 5A | Higher than 90% | 280g | 74X74X32mm |
| 120W DC Converter | J48D5K120Z | 48v | 12v | 10A | Higher than 90% | 280g | 74X74X32mm |
| 240W DC Converter | J48D12K240Z | 48v | 12v | 20A | Higher than 90% | 280g | 74X74X32mm |
| 360W DC Converter | J48D12K360Z | 48v | 12v | 30A | Higher than 90% | 280g | 150x127x63mm |
| 120W DC Converter | J48D24K120Z | 48v | 24v | 5A | Higher than 90% | 280g | 74X74X32mm |
| 240W DC Converter | J48D24K240Z | 48v | 24v | 10A | Higher than 90% | 320g | 74X74X32mm |
Our products are great for outdoor environment and widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
We have other custom made specification if you can not find a suitable model from our TCH Warehouse Store, please contact our product engineer
|
