360W 12v to 24v dc Step up Converter

FOB Price

US$ 1 - 9.99 / Piece

50 Pieces(Min. Order)

Port Guangzhou
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	dowonsol
Model Number	S1224C360Z	Output Power	301 - 400W
Output Type	Single	Size	1088050MM
Weight	750G	Input Voltage	24V
Output Voltage	12V	Type	DC/DC Converters
Output Frequency	-	Output Current	15A max

Product Description

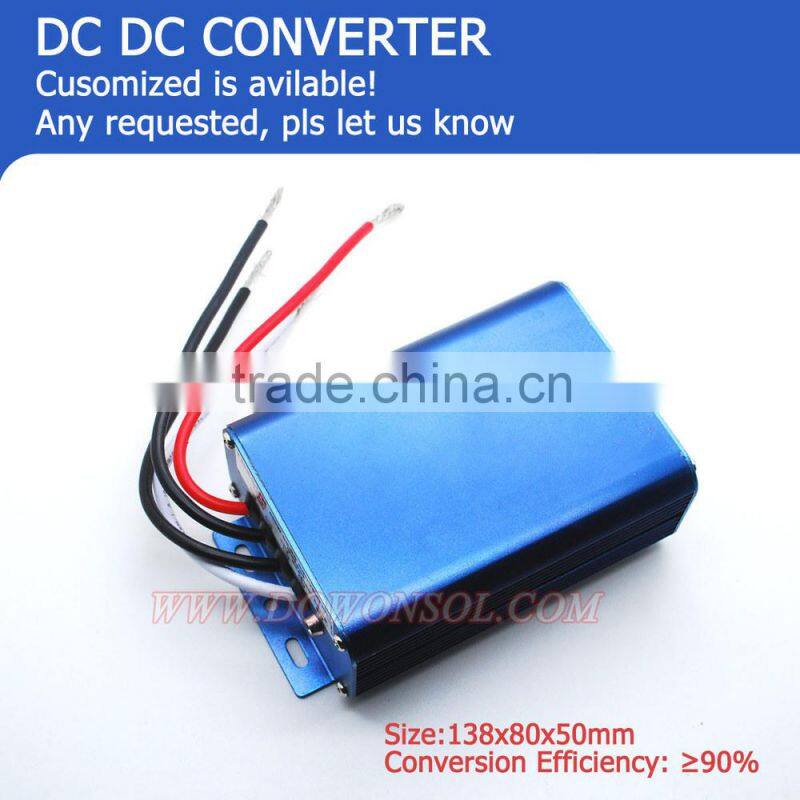

360W 12v to 24v dc step up converter

Output power(W) 360W
Input voltage(V) 12V DC
Output voltage(V) 24V DC
Output Type: Single
Input:
Input voltage range(V)10V-18V DC
Efficiency 94%
Output:
Output voltage range(V) VOUT: 24V DC
Output current(A) 15A
Voltage adjustable 2%
Ripple wave: 50Mv Starting delay time: < 2S
Isolation Non-isolated
Waterproof Waterproof IP68
Other:
Dimension 108*80*50mm, net weight: 750g
Cooler natural cooling
Rated temperature: 45 degree
Operating temperature -40degrees -80degrees
Input transient voltage protection, output over-current protection, output short circuit protection, chip overheating protection function.
This power supply without reverse connection protection, input and output negative pole line cannot be reversed

Cooler natural cooling Rated temperature ° 45°

Operating temperature -40°-80°

Probability of reliability >100000h

We have other converters for your reference as followed,

Product range	Product model	V-in	V-out	I-out	Efficiency	Weight(g)	Size (LxWxH)
50W DC Converter	J48D5K50Z	48V	5v	10A	Higher than 90%	280g	74X74X32mm
60W DC Converter	J48D5K60Z	48v	12v	5A	Higher than 90%	280g	74X74X32mm
120W DC Converter	J48D5K120Z	48v	12v	10A	Higher than 90%	280g	74X74X32mm
240W DC Converter	J48D12K240Z	48v	12v	20A	Higher than 90%	280g	74X74X32mm
360W DC Converter	J48D12K360Z	48v	12v	30A	Higher than 90%	280g	150x127x63mm
120W DC Converter	J48D24K120Z	48v	24v	5A	Higher than 90%	280g	74X74X32mm
240W DC Converter	J48D24K240Z	48v	24v	10A	Higher than 90%	320g	74X74X32mm

Our products are great for outdoor environment and widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.

We have other custom made specification if you can not find a suitable model from our TCH Warehouse Store, please contact our product engineer
